OKI C920WT [33/169] Using the mp tray

Printer and paper overview> 33

5. Gently push the tray back into the printer.

SING

THE

MP T

RAY

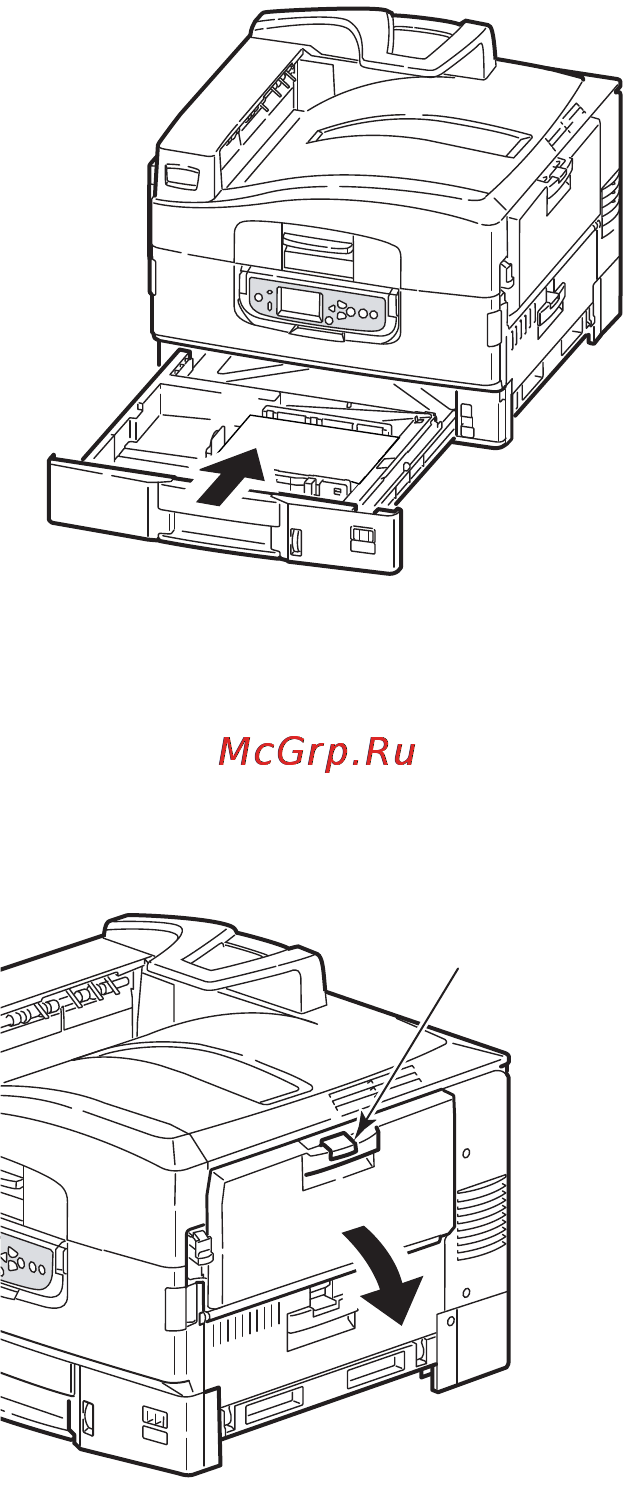

1. Squeeze the handle (1) and open the multi-purpose tray.
