Troubleshooting> 135

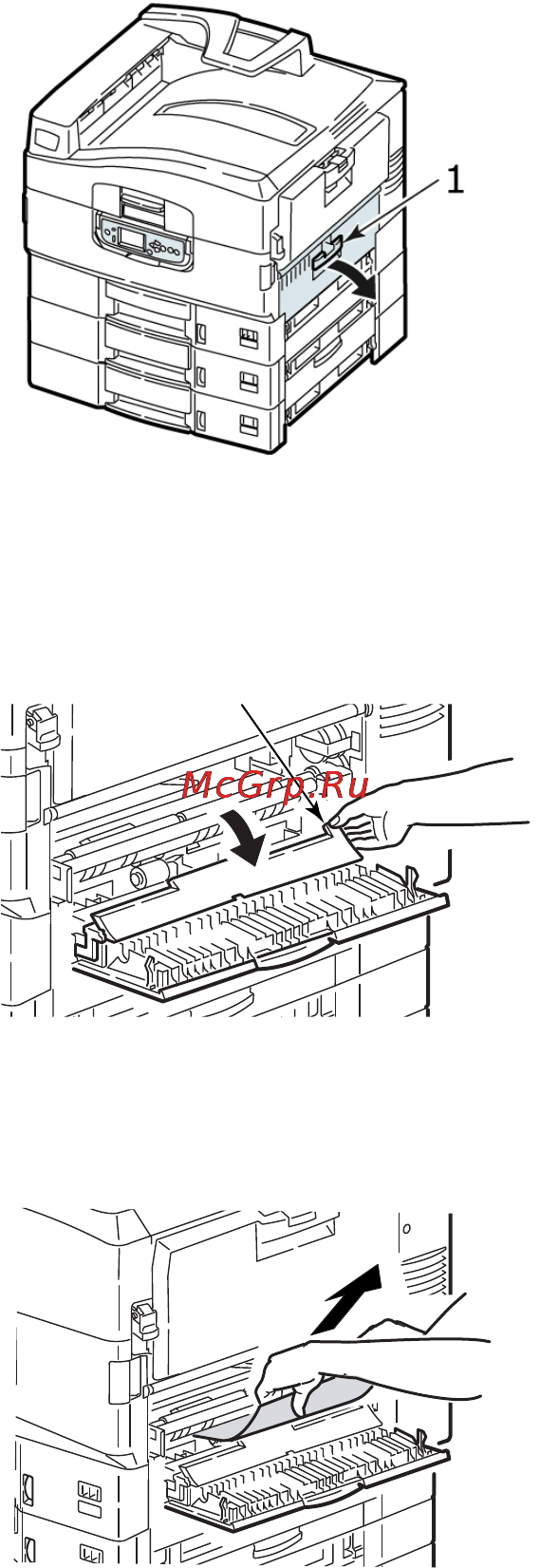

1. Squeeze the catch (1) on Tray 1 side cover and open the

cover.

2. Holding it by the tab (2), turn the paper guide outward.

3. Carefully remove the jammed paper.
