Consumables and maintenance> 108

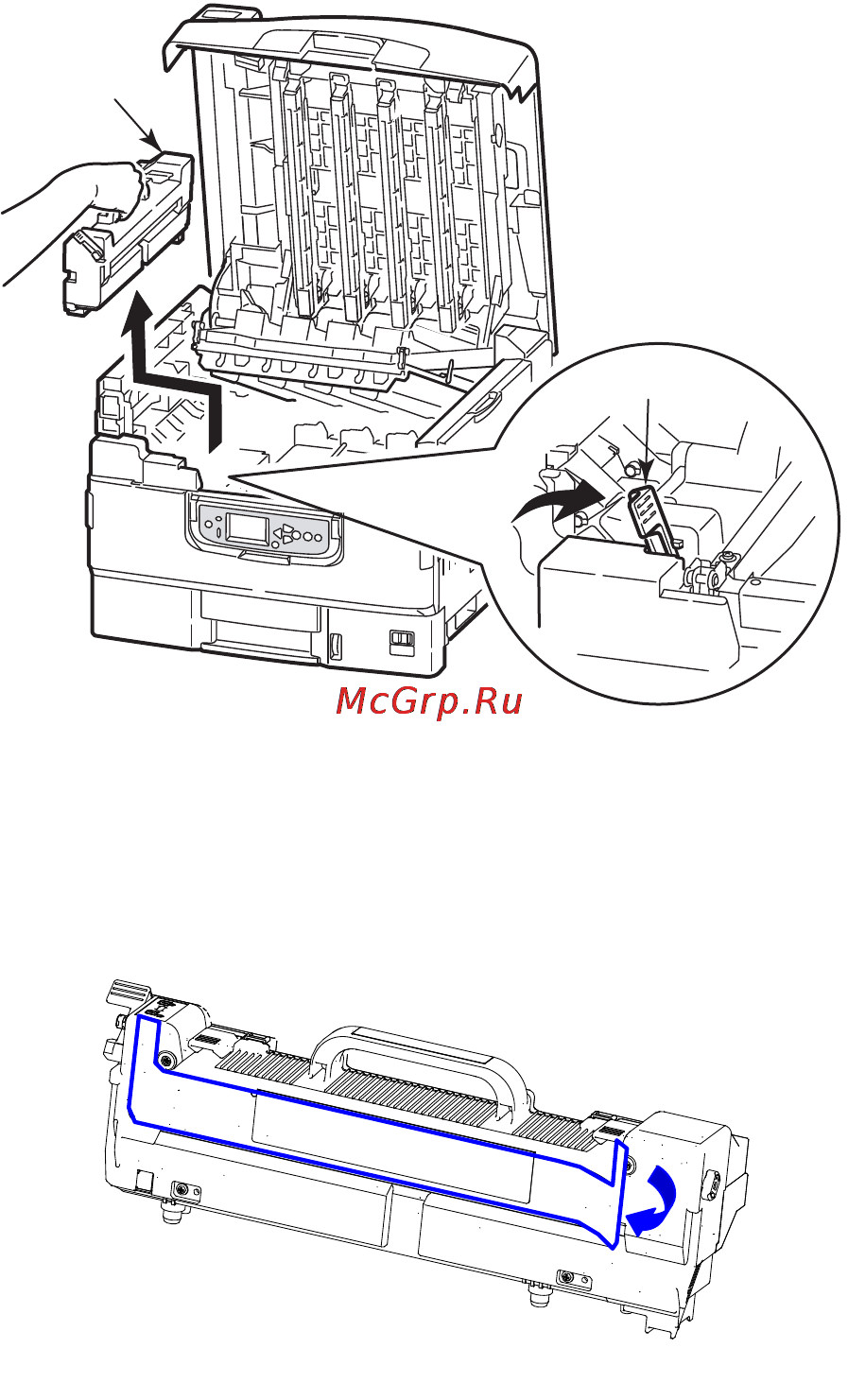

2. Pull the lock lever (3) in the direction of the arrow to release

the fuser unit.

Holding the fuser unit (4) by the handle, lift it out of the

printer and place it on a flat surface.

3. Remove the fuser cover sheet to which toner sticks from the

fuser unit.
