Consumables and maintenance> 104

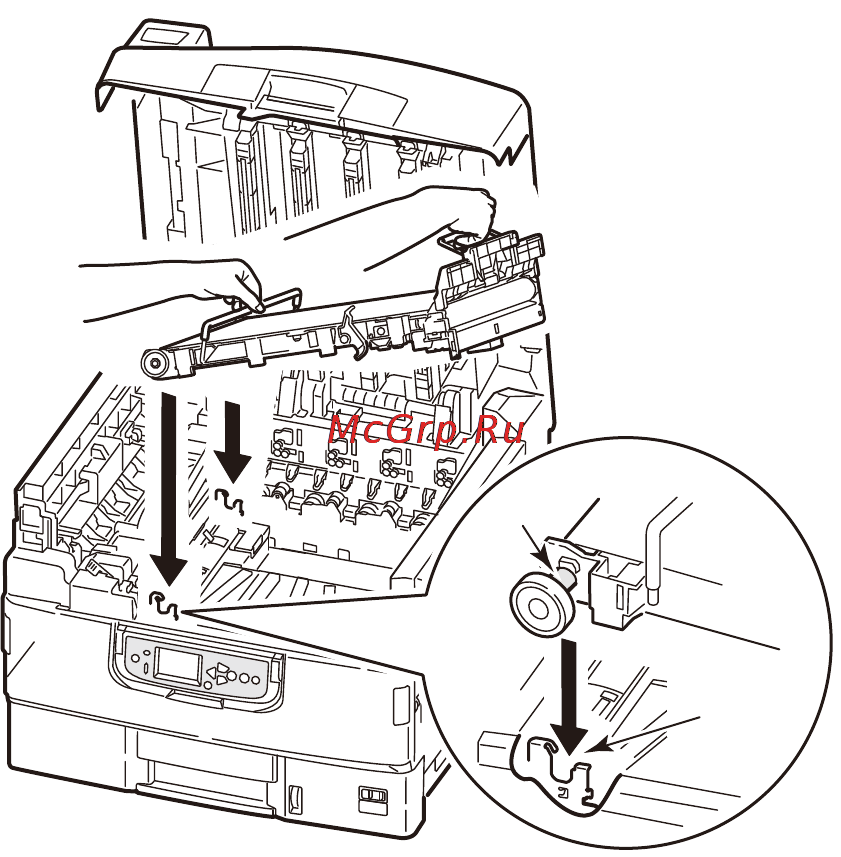

7. Hold the handle of the belt unit (blue) with both hands.

Slowly put the unit into the printer's body, adjust the spindle

(5) of the unit to the guide (6) of the printer's body (the front

and the back).
