Consumables and maintenance> 111

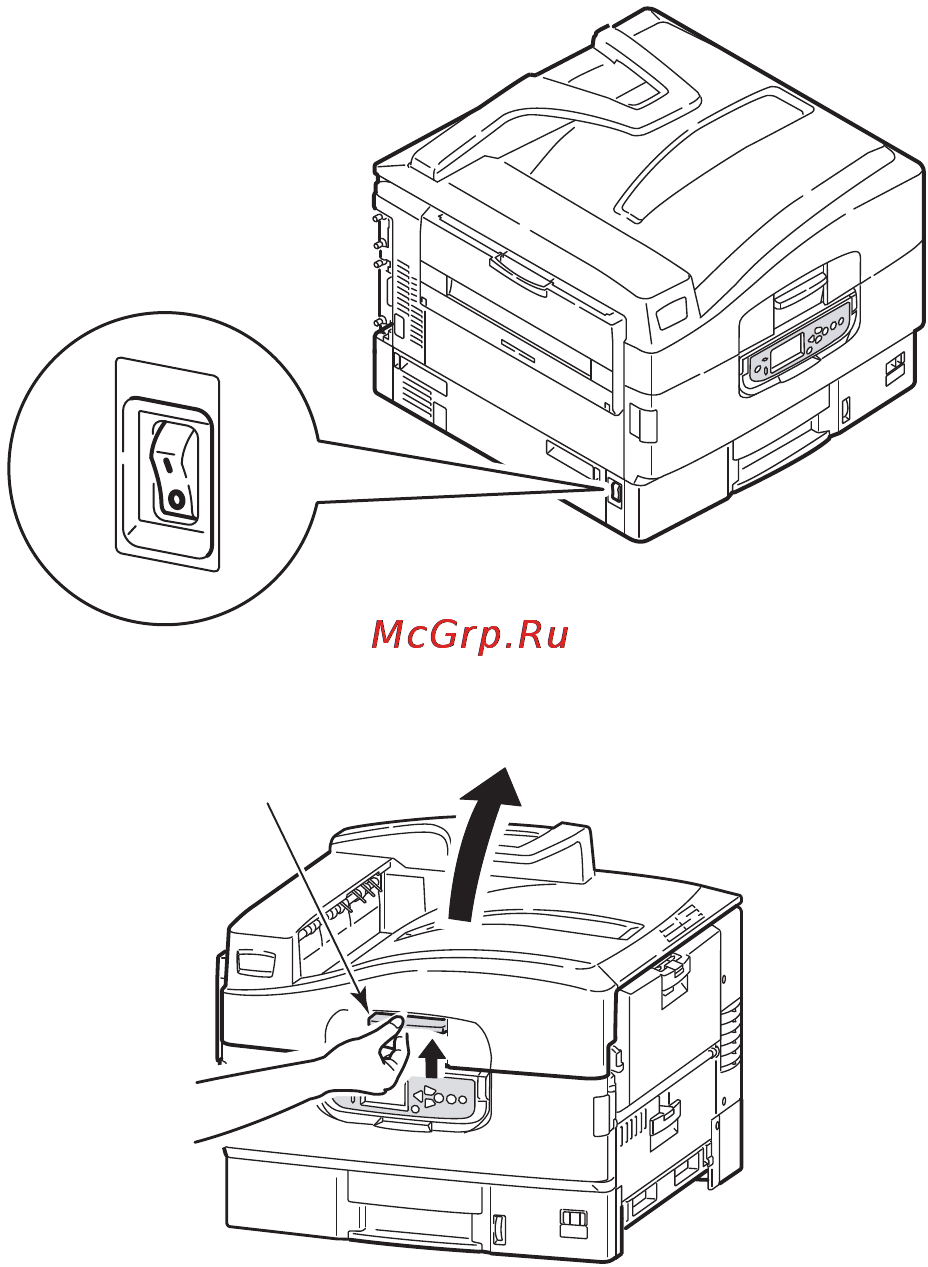

1. Switch off the printer.

2. Squeeze the top cover handle (1) and open the top cover.

NOTE

Open the top cover fully while replacement. Otherwise the printer

may be damaged.
