Troubleshooting> 140

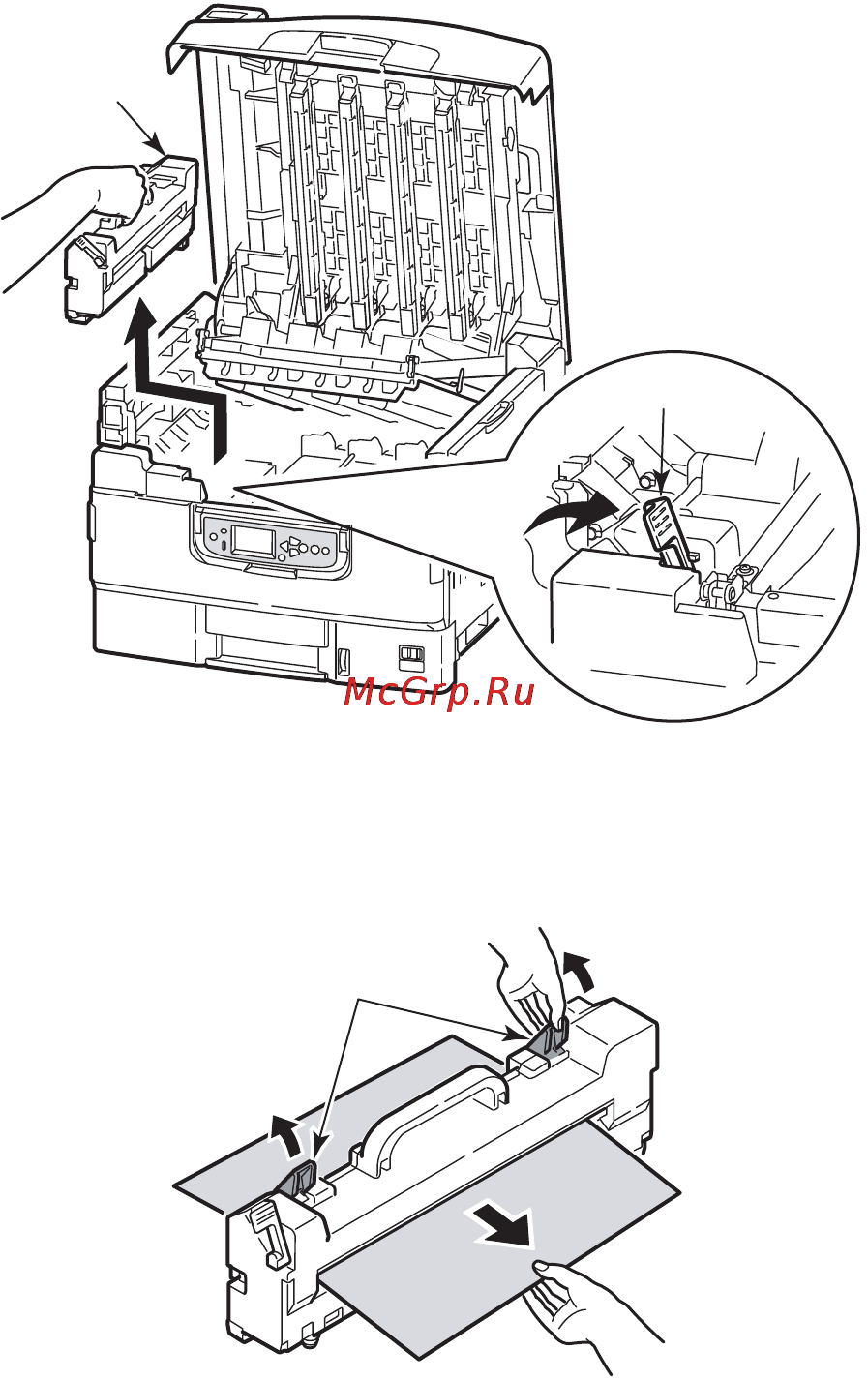

Holding the fuser unit (4) by the handle, lift it out of the

printer and place it on a flat surface.

5. Pull up the jam release levers (5) and remove the jammed

paper.
