Printer and paper overview> 36

Face-up stacker

The face-up exit path is used for heavy paper (cardstock etc.), and

transparencies.

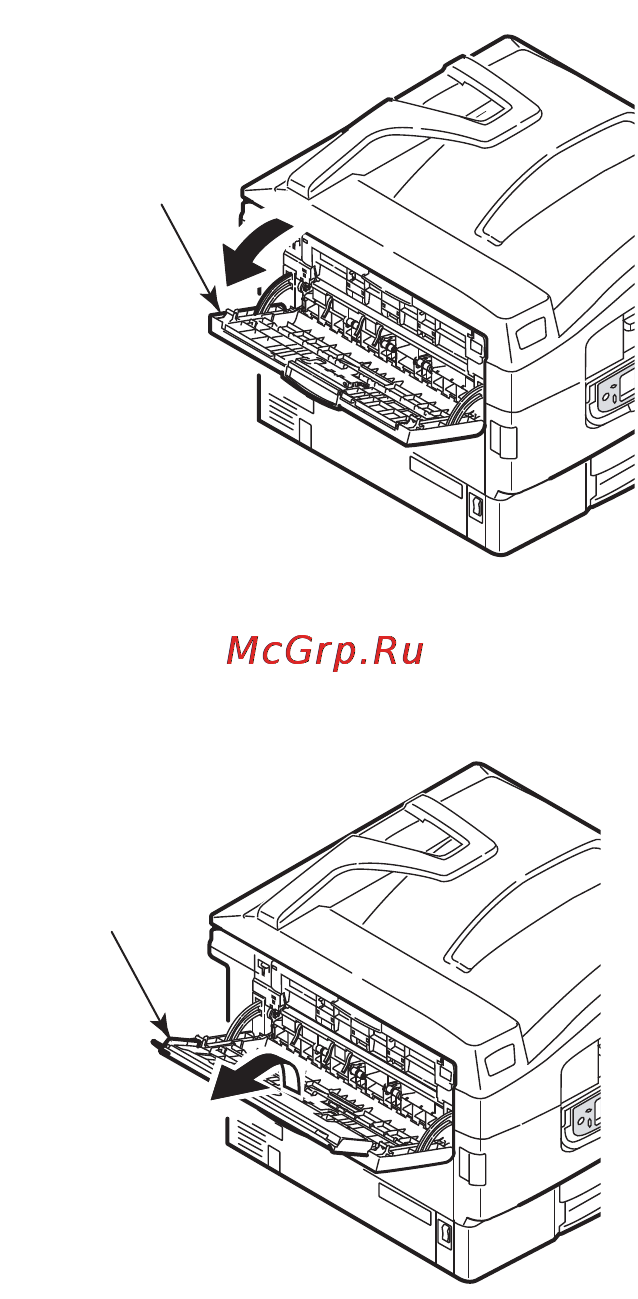

1. Open the stacker (1).

2. Flip out the paper support (2).
