Consumables and maintenance> 94

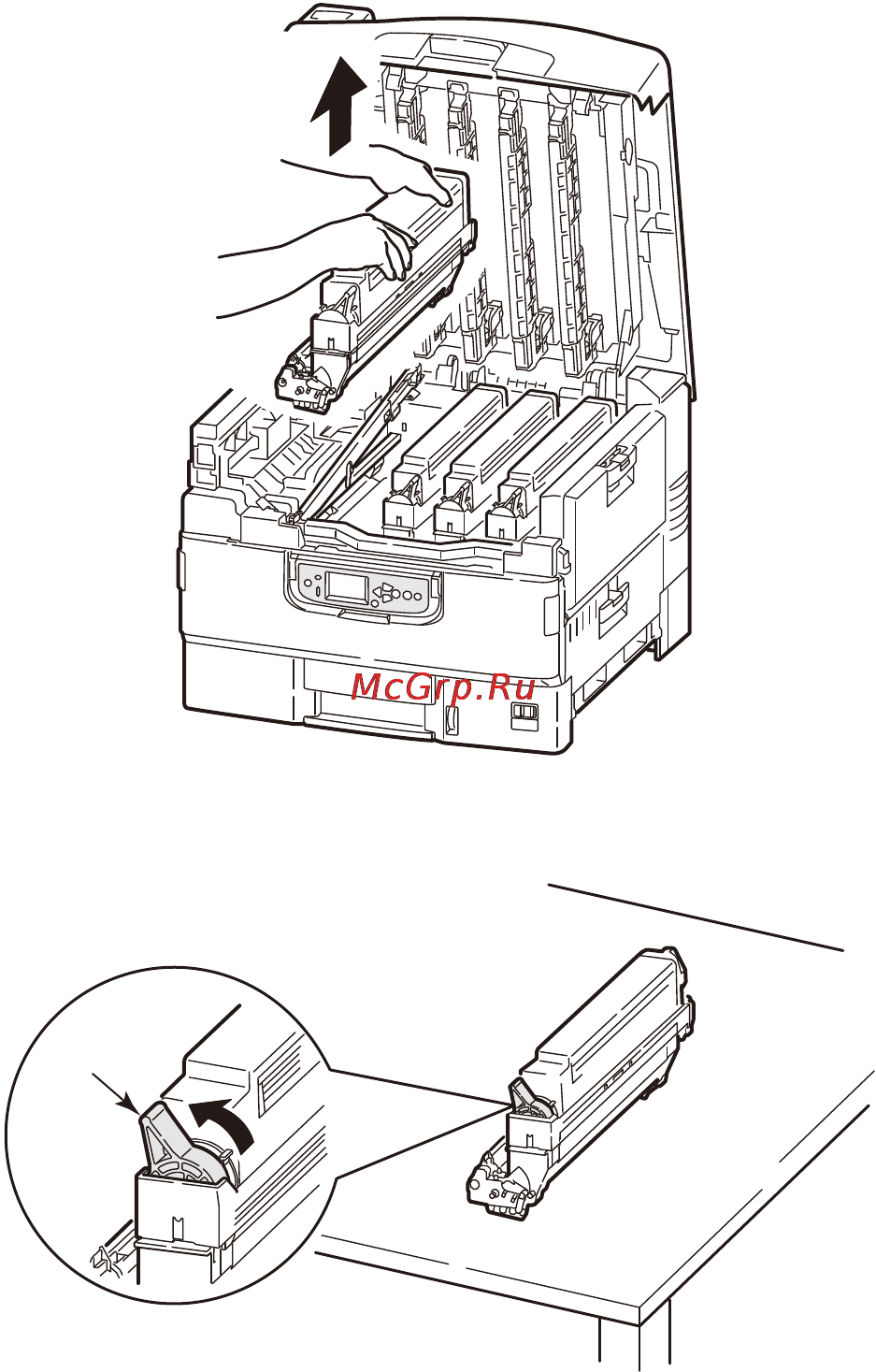

2. Check the color of the image drum cartridge to be replaced,
and lift it, complete with its toner cartridge, up and out of the
printer.
NOTE
- Avoid the cartridge bumping to the LED head.
- Do not turn the blue lock lever of the toner cartridge when
removing the image drum cartrdige.
3. Turn the blue lock lever (2) of the toner cartridge to the
direction of the arrow until it stops to release the lock.
2
