Consumables and maintenance> 97

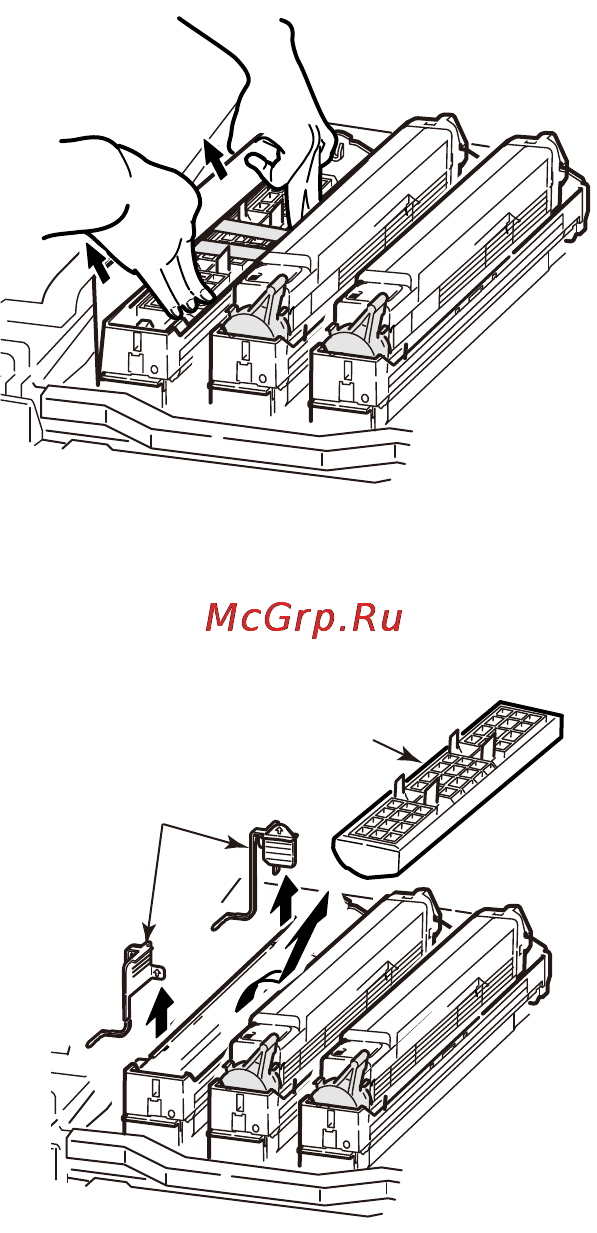

7. Pinch the both ends of the protective sheet with the thumb

and index finger while holding down the image drum

cartridge with other fingers, and pull out the protective sheet

to the direction of the arrow.

8. Remove the stoppers (3) (orange, eight pieces), toner cover

(4) (orange), and silica gel.
