4
2
!9 TUNING LEVEL INDICATOR
Shows the receiver tuning level.
@0 SCREEN RANGE READOUT (p. 16)
Shows the maximum range of the displayed screen.
The range indicated is nautical miles (NM).
@1 FIXED RING RANGE READOUT (p. 16)
Shows the interval range of the xed ring.
This readout appears when the RING of the FUNC-
TION menu is turned ON.
@2 HEADING LINE (p. 11)
Heading line indicates the ships bow.
@3 ALARM ZONE (p. 19)
Shows the alarm zone.
Appears when the alarm function is in use.
External data is required for screen display information.
(p.38).
@4 OWN SHIP VECTOR INDICATOR
Shows the vector of your own ship.
@5 WAYPOINT MARKER (p. 15)
Shows the waypoint received from navigation
equipment.
This marker appears when the WPT of the FUNCTION
menu is turned ON.
External data is required for screen display information.
(p.38).
@6 EBL1/VRM1,EBL2/VRM2 READOUTS (pgs. 16-
18)
Shows the bearing of the displayed Electronic Bear-
ing Lines (EBL) and the distance of the displayed
Variable Range Markers (VRM).
Nautical miles (NM) and kilometres (KM) can be se-
lected in the INT.SETTING menu as the distance unit.
@7 HEADING INDICATOR
Shows the heading bearing readout.
The HDG readout indicates the bow of the ships bearing
in a clockwise direction from north.
External data is required for screen display information.
(p.38).
@88 MODE INDICATOR
Head-up, Course-up (CUP), North-up (NUP) and
True Motion (TM) screens are available.
External data is required for screen display information.
(p.38).
@9 CROSS LINE CURSOR
Used for measuring the bearing and distance, set-
ting the alarm zone, selecting the EPA targets, etc.
Push [ ]/[ ]/[ ]/[ ] several times to move the cur-
sor.

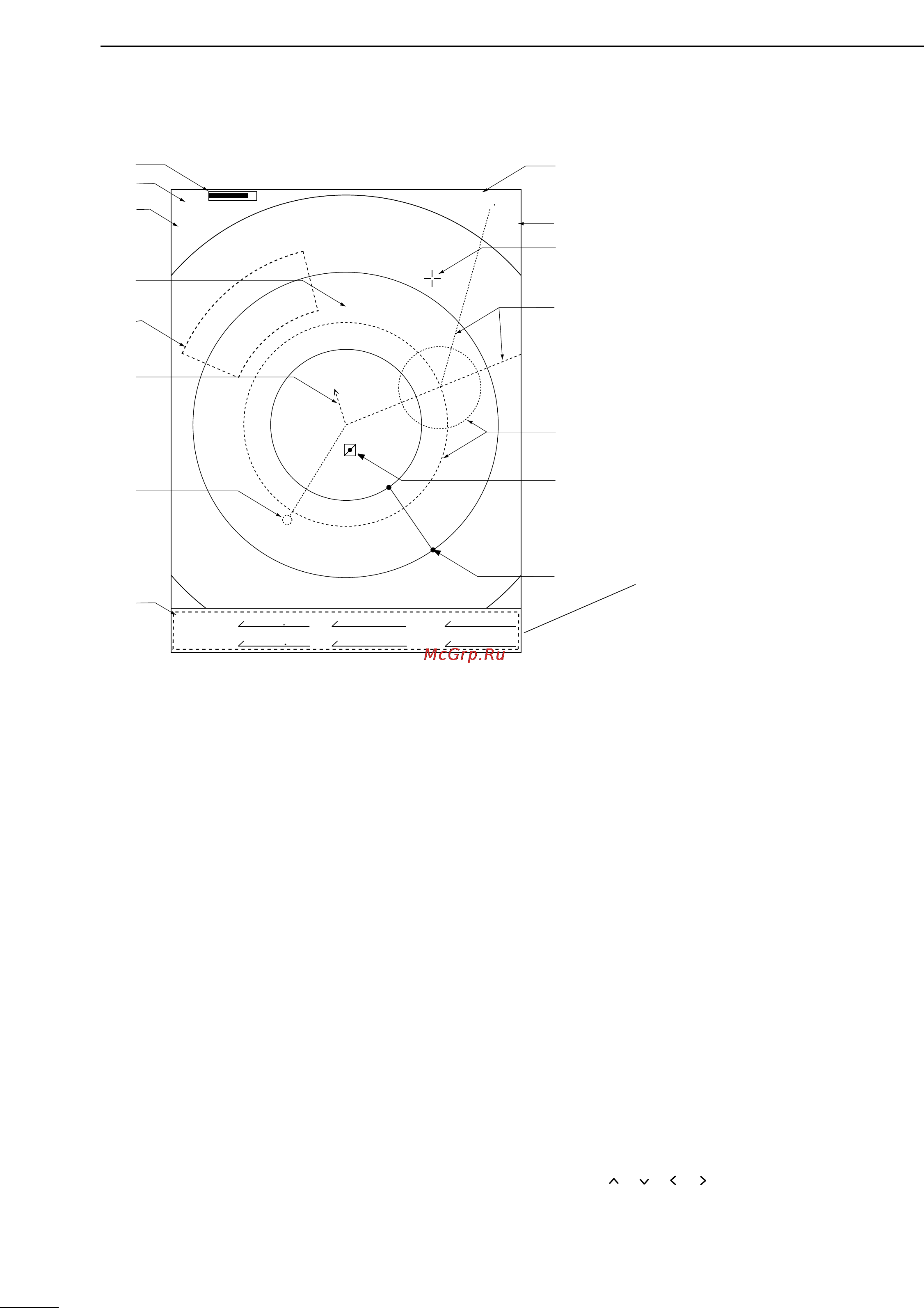

PANEL DESCRIPTION
Screen
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530
˚
TM
T
1.296NM
O:01
O:01
0.566NM
@7
@8
@9
#0
#1
#2
#3
@2
@3
!9
@0
@1
@4
@5
@6
NOTE:
DATA display area may differ de-
pending on DATA DISP selection in
the FUNCTION menu.
