13
4
BASIC OPERATION
■ IR function
Radar interference may appear when another ship’s
radar is operating on the same frequency band in
close proximity. The IR function can eliminate this type
of interference. (p. 6)
q Push [ADJ] to call up “ADJUST” menu.
w Push [ ]/[ ] until the “IR” section becomes high-
lighted.
e Push [ ]/[ ] to select IR function ON or OFF.

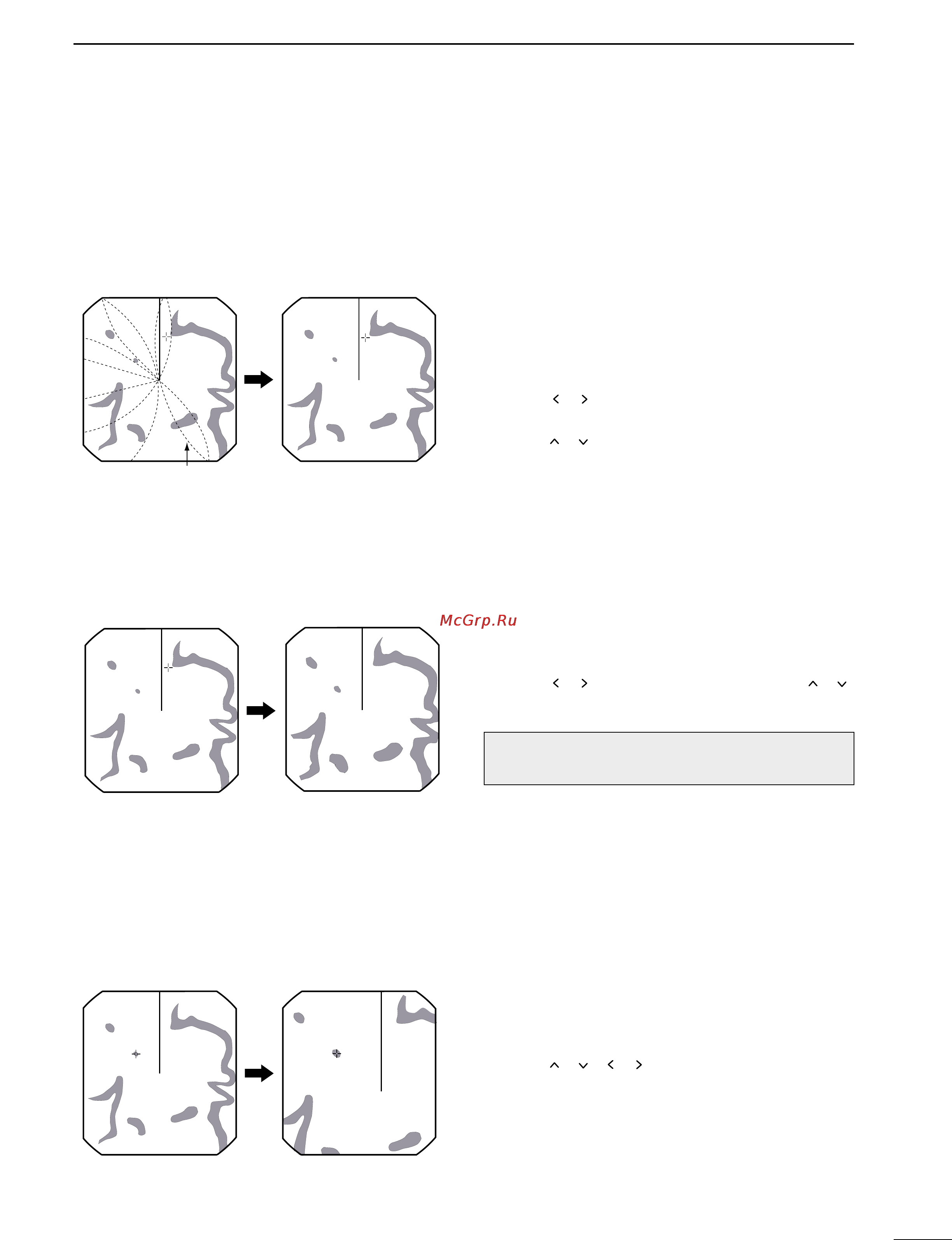

With IR function on
Radar interference
■ ECHO STRETCH function
The blips can be magnified electronically for easier
viewing of small targets. (p. 6)
q Push [ADJ] to open the ADJUST menu.
w Push [ ]/[ ]
to select “STRETCH”. Push
[ ]/[ ]
to turn the function ON or OFF.
■ ZOOM function
The ZOOM function expands the target to two times
normal size.
•This function is available within, and up to a 24 NM range.
(except for
1
/8 and
3
/4 NM.)
q Push [ ]/[ ]/[ ]/[ ] to move the cursor to the de-
sired target.
w Push [MOB] and [TRAILS] simultaneously to toggle
the “ZOOM” function ON and OFF.
With STRETCH on
Normal screen
With ZOOM function on
Normal screen
NOTE: Turn OFF this function during normal opera-
tion.
