14
4

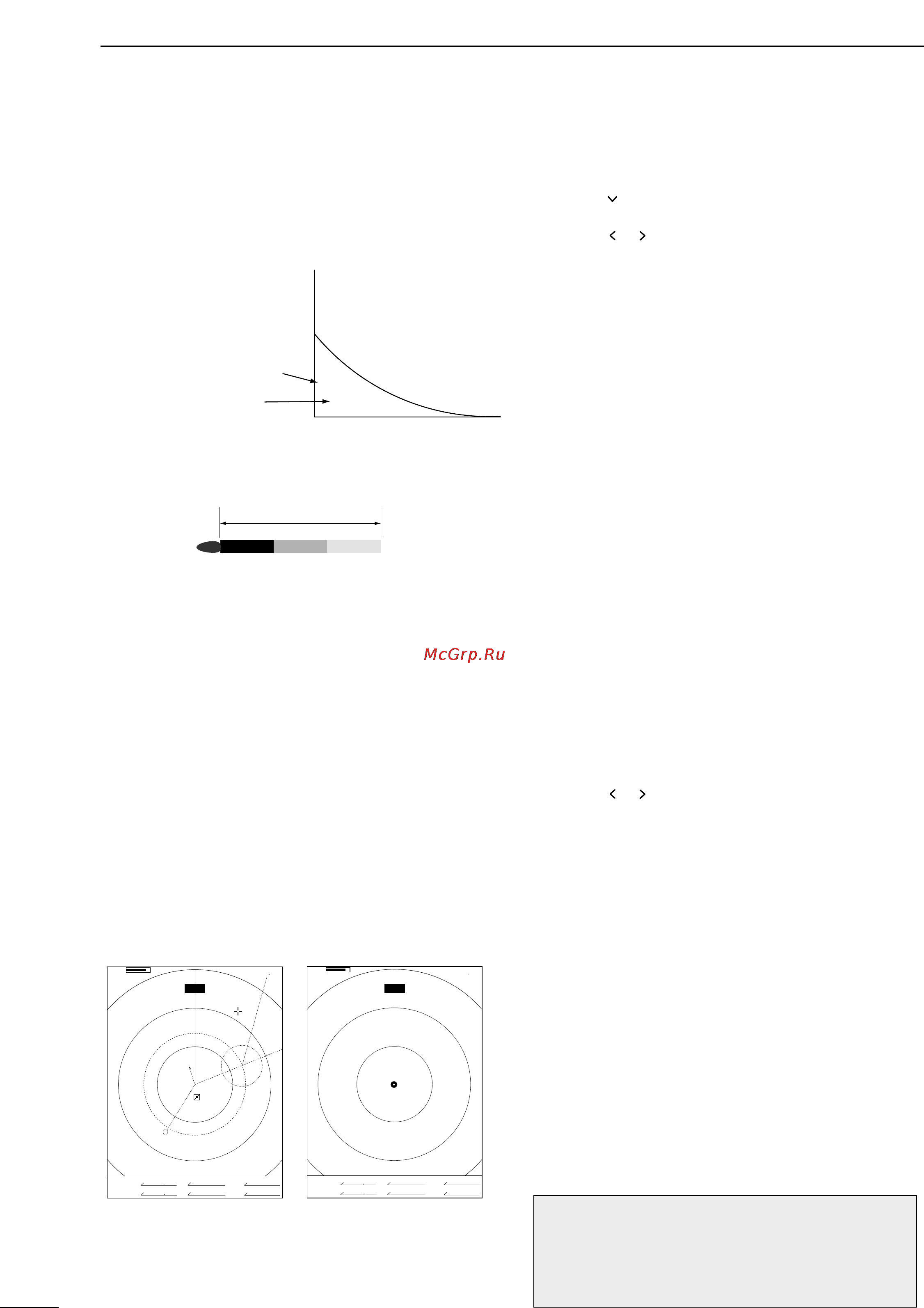

BASIC OPERATION
■ TRAILS function
The trails function memorizes echoes continuously or
at constant intervals. This is useful for watching other
ships’ tracks, approx. relative speed, etc.
•Setting the trail interval time
q Push [MENU] to call up the FUNCTION menu.
•Push [ ] several times until the “TRAIL TIME” section
becomes highlighted.
w Push [ ]/[ ]
to select trail interval time.
•15 sec., 30 sec., 1 min., 3 min., 6 min., 15 min., 30 min.
and
∞ (continuous) are available.
e Push [MENU] several times to exit the menu.
• Using the TRAILS function
q Push [TRAILS] to turn the trail function ON.
•“TRAILS” and trail interval time appears in the lower left
of the screen.
w All displayed echoes at the plotted time are memo-
rized and displayed with a gradually fading inten-
sity together with the current echoes.
•Echos are displayed with minimum intensity when “∞” is
selected.
e Push [TRAILS] to cancel the trail function and
erase the plotted echoes.
•“TRAILS” and trail interval time disappears.
Trail time
AL
TR
0’08
TRAIL indicator
Trail interval
counter
■ Power save function
The power save function conserves the boat’s battery
power by pausing the transmission. The standby
(pausing) times are selectable (*rotation number is
fixed on 10 rotations).
For example, when 1 min. is selected, the scanner ro-
tates 10 revolutions; then stops for 1 min., and then re-
peats this sequence while the power save function is
activated.
• Setting the scanning standby time
q Push [MENU] to call up the “FUNCTION” menu.
w Push [DOWN] until the “SAVE TIME” section be-
comes highlighted.
e Push [ ]/[ ]
to select standby time.
•1, 6, 15, and 30 min. are available.
r Push [MENU] twice to exit the menu display.
• Using the “POWER SAVE” function
q Push and hold [TX (SAVE)] for 0.5 sec. to turn the
power save function ON.
•The save indicator appears in the top of the screen.
w After the scanning rotations are finished, transmis-
sion and rotation are suspended until the selected
standby time elapses.
•The display shows the last scanned echoes until the
scanning restarts.
•“SAVE” appears in the top of the screen.
e After the selected standby time elapses, transmis-
sion and rotation restart.
r Push [TX (SAVE)] to cancel the power save func-
tion.
•The save indicator turns OFF.
NOTE: When you use the power save function to-
gether with the alarm function, the LCD display is
turned OFF until an object enters the programmed
alarm zone, therefore, more power saving is possi-
ble. (p. 00)
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530
˚
TM
SAVE
T
1.296NM
O:01
O:01
0.566NM
SAVE
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530
˚
TM
T
1.296NM
O:01
O:01
0.566NM
Scan and standby alternates.
