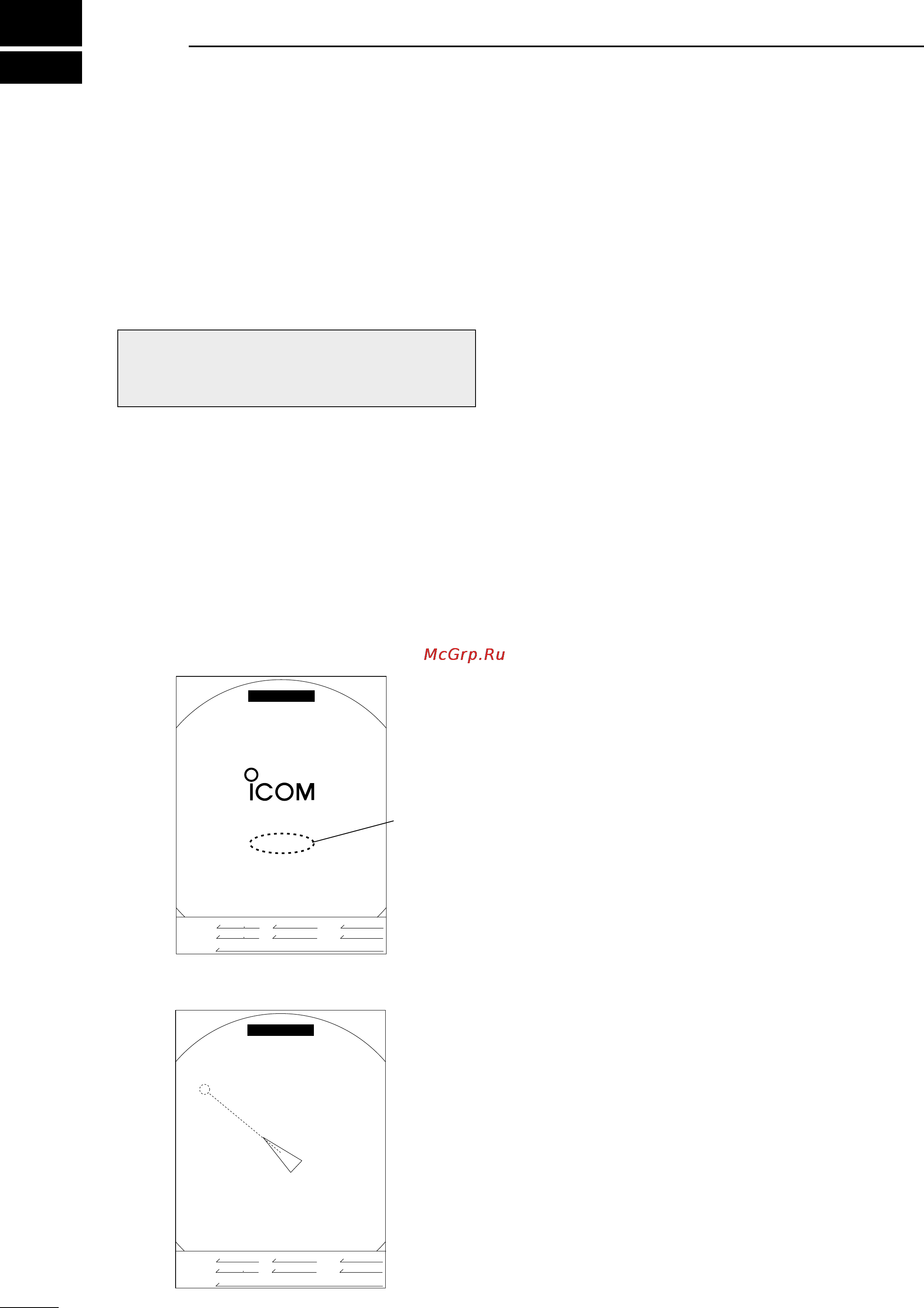

BASIC OPERATION
Before turning the power ON, be sure all the connec-
tions are complete. The checklist at right may be help-
ful for necessary confirmation.
•Checklist
q The 4 bolts securing the scanner unit must be firmly
tightened.
w Cabling must be securely attached to a mast or
mounting material, and must not interfere with the
rigging.
e Be sure waterproofing procedures are completed
on the system cable.
r The power connections to the battery must be of the
correct polarity.
t Be sure that the plugs at the rear of the display unit
have been connected correctly and securely.
(See p. 26 for details.)
■ Checking the installation
■ Turning power ON/OFF
q Push [POWER] to turn the power ON.
•The initial screen appears and warming up time is
counted down on the screen.
•The magnetron inside the scanner unit warms up for 90
sec.
•The firmware’s revision number appears.
•[POWER] does not function for 2 sec. after the power is
turned OFF.
w When the countdown is completed, the Standby
screen appears.
e Push [TX] to start scanning and select the Plan Po-
sition Indicator (PPI) screen.
•Targets and heading marker appear.
•The screen appears approx. 5 sec. after turning the
power on, when ‘AUTO’ is selected in the “TUNE” of the
FUNCTION menu.
r Push [POWER] to turn the power OFF.
NOTE:
Push [BRILL] for 1 sec. to turn the [BRILL] setting to
default, when the “Brilliance” or “Contrast” was miss
adjusted.
0672˚
WPT
POSN
R
34°37.003N 135°33.986E
8
NM
STANDBY
HDG 301.6°
COG 298.6°
SOG 17.2KT
1:29
REV 1.0
ROM OK
RAM OK
NUP
T
T
5.842NM
O:17
MOB
0672˚
WPT
POSN
R
8
NM
STANDBY
HDG
323.4°
5.842NM
O:15
MOB
34°37.003N 135°33.986E
COG
323.4°
SOG
28.6KT
CAUTION: Connect the scanner unit before
turning the power ON. Otherwise the magnetron
inside the scanner unit might be damaged.
➨
Firmware
revision
number.
