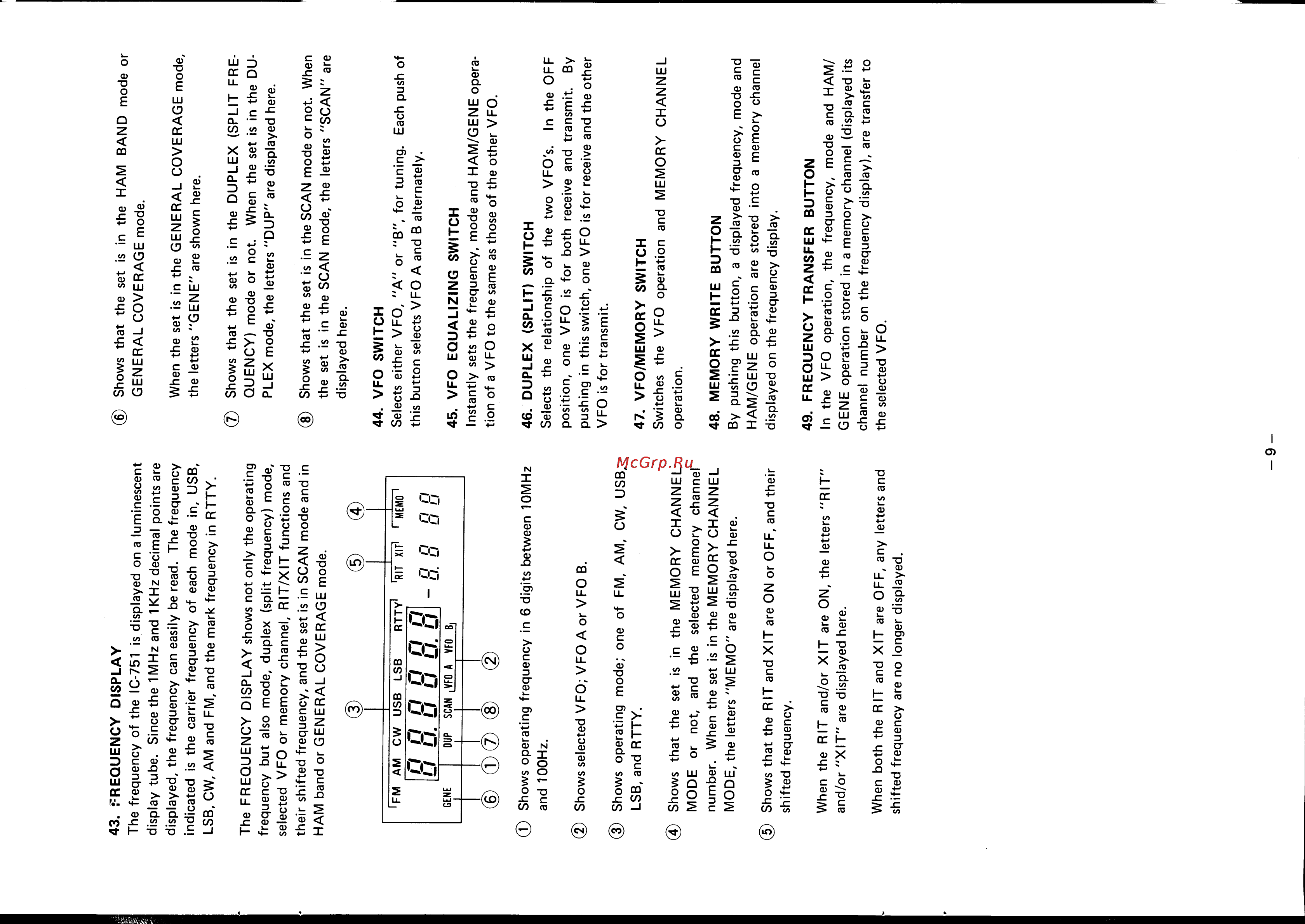

43 FREQUENCY DISPLAY The frequency of the IC 751 is displayed on a luminescent display tube Since the 1 MHz and 1 KHz decimal points are displayed the frequency can easily be read The frequency indicated is the carrier frequency of each mode in USB LSB CW AM and FM and the mark frequency in RTTY The FREQUENCY DISPLAY shows not only the operating frequency but also mode duplex split frequency mode selected VFO or memory channel RIT XIT functions and their shifted frequency and the set is in SCAN mode and in HAM band or GENERAL COVERAGE mode Shows that the set is in the HAM BAND mode or GENERAL COVERAGE mode When the set is in the GENERAL COVERAGE mode the letters GENE are shown here Shows that the set is in the DUPLEX SPLIT FRE QUENCY mode or not When the set is in the DU PLEX mode the letters DUP are displayed here Shows that the set is in the SCAN mode or not When the set is in the SCAN mode the letters SCAN are displayed here 44 VFO SWITCH Selects either VFO A or B for tuning Each push of this button selects VFO A and B alternately 45 VFO EQUALIZING SWITCH Instantly sets the frequency mode and HAM GENE opera tion of a VFO to the same as those of the other VFO Shows operating frequency in 6 digits between 10MHz and 100Hz Shows selected VFO VFO A or VFO B Shows operating mode one of FM AM CW USB LSB and RTTY 4 Shows that the set is in the MEMORY CHANNEL MODE or not and the selected memory channel number When the set is in the MEMORY CHANNEL MODE the letters MEMO are displayed here Shows that the RIT and XIT are ON or OFF and their shifted frequency When the RIT and or XIT are ON the letters RIT and or XIT are displayed here When both the RIT and XIT are OFF any lettersand shifted frequency are no longer displayed 9 46 DUPLEX SPLIT SWITCH Selects the relationship of the two VFO s In the OFF position one VFO is for both receive and transmit By pushing in this switch one VFO is for receive and the other VFO is for transmit 47 VFO MEMORY SWITCH Switches the VFO operation and MEMORY CHANNEL operation 48 MEMORY WRITE BUTTON By pushing this button a displayed frequency mode and HAM GENE operation are stored into a memory channel displayed on the frequency display 49 FREQUENCY TRANSFER BUTTON In the VFO operation the frequency mode and HAM GENE operation stored in a memory channel displayed its channel number on the frequency display are transfer to the selected VFO
