9 | Configuration
Installer reference guide
112
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05
6 Push to confirm the displayed selection of data.
Result: All data (languages, schedules etc.) will be copied from the selected source
user interface to the other one. When done, the system is ready to be operated via
both user interfaces.
INFORMATION
▪ As long as data is being copied, you cannot operate the user interfaces.
▪ Copying data can take up to 90 minutes.
▪ It is recommended to change installer settings, or the configuration of the unit,
on the main user interface. If not, it can take up to 5 minutes before these
changes are visible in the menu structure of the main user interface.
9.1.4 Quick wizard: Set the system layout after first power ON
After first power ON of the system, a quick wizard guides you through the initial
configuration of the following system settings:
▪ language
▪ date
▪ time
▪ system layout
After you confirmed the system layout, you can proceed with the installation and
commissioning of the system.

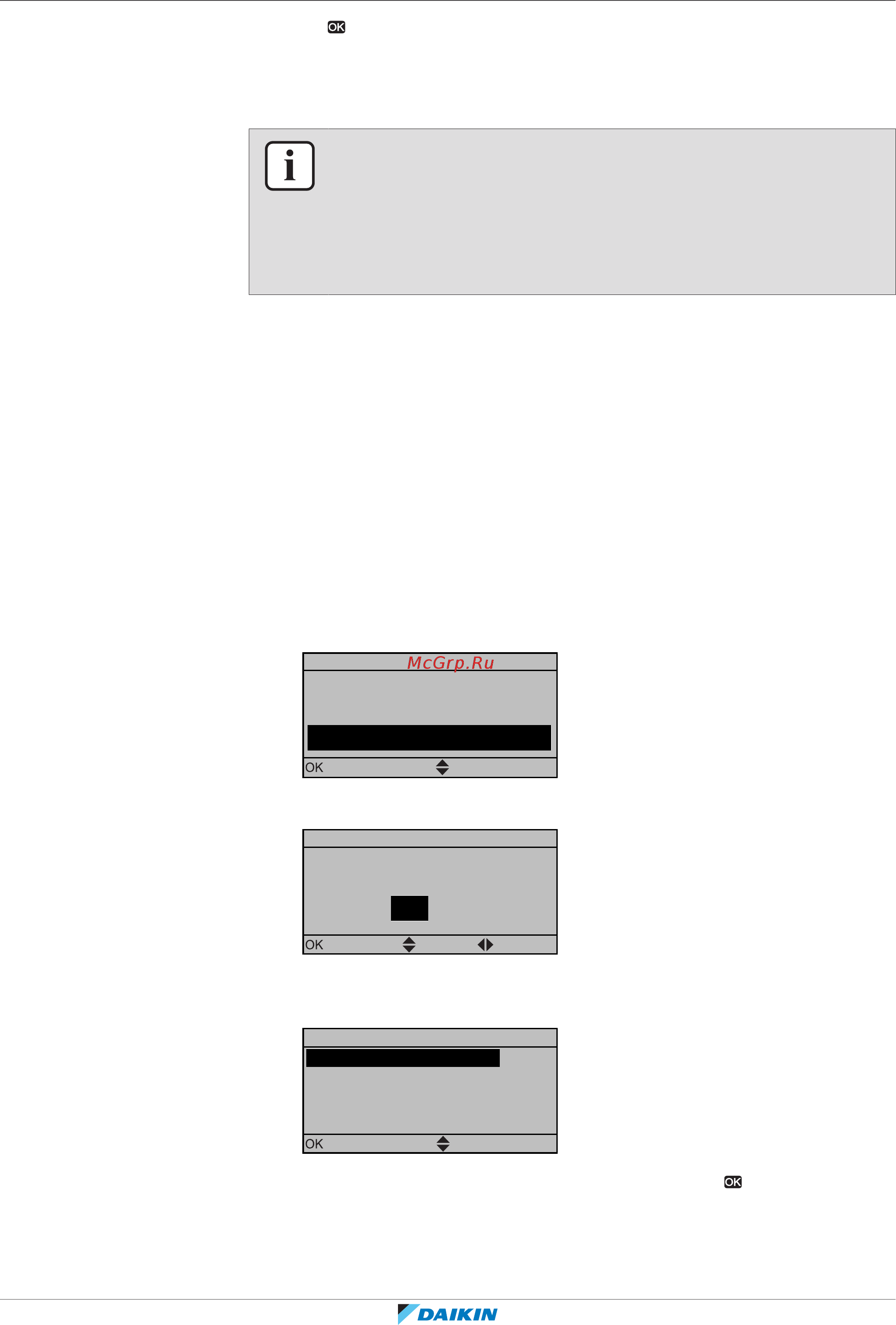

1 At power ON and as long as the system layout was not confirmed yet, select
your preferred language.
Language
Select the desired language
Confirm Adjust
2 Set the current date and time.
00 : 00
What is the current time?
Time
Confirm
Adjust
Scroll
3 Set the system layout settings: Standard, Options, Capacities. For more
details, see "9.2Basic configuration"[4113].
A.2 1
Scroll
Select
System layout
Standard
Options
Capacities
Confirm layout
4 After configuration, select Confirm layout and press .
