5 | Application guidelines
Installer reference guide
24
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05
Because the system offers a wide flexibility to control the temperature in each
room, you need to answer the following questions first:
▪ How many rooms are heated or cooled by the heatpump system?
▪ Which heat emitter types are used in each room and what is their design leaving
water temperature?
Once the space heating/cooling requirements are clear, we recommend to follow
the setup guidelines below.
NOTICE
If an external room thermostat is used, the external room thermostat will control the
room frost protection. However, the room frost protection is only possible if the
leaving water temperature control on user interface of the unit is turned ON.
INFORMATION
In case an external room thermostat is used and room frost protection needs to be
guaranteed in all conditions, then you have to set auto emergency [A.6.C] to 1.
NOTICE
An overpressure bypass valve can be integrated in the system. Keep in mind that this
valve might not be shown on the illustrations.

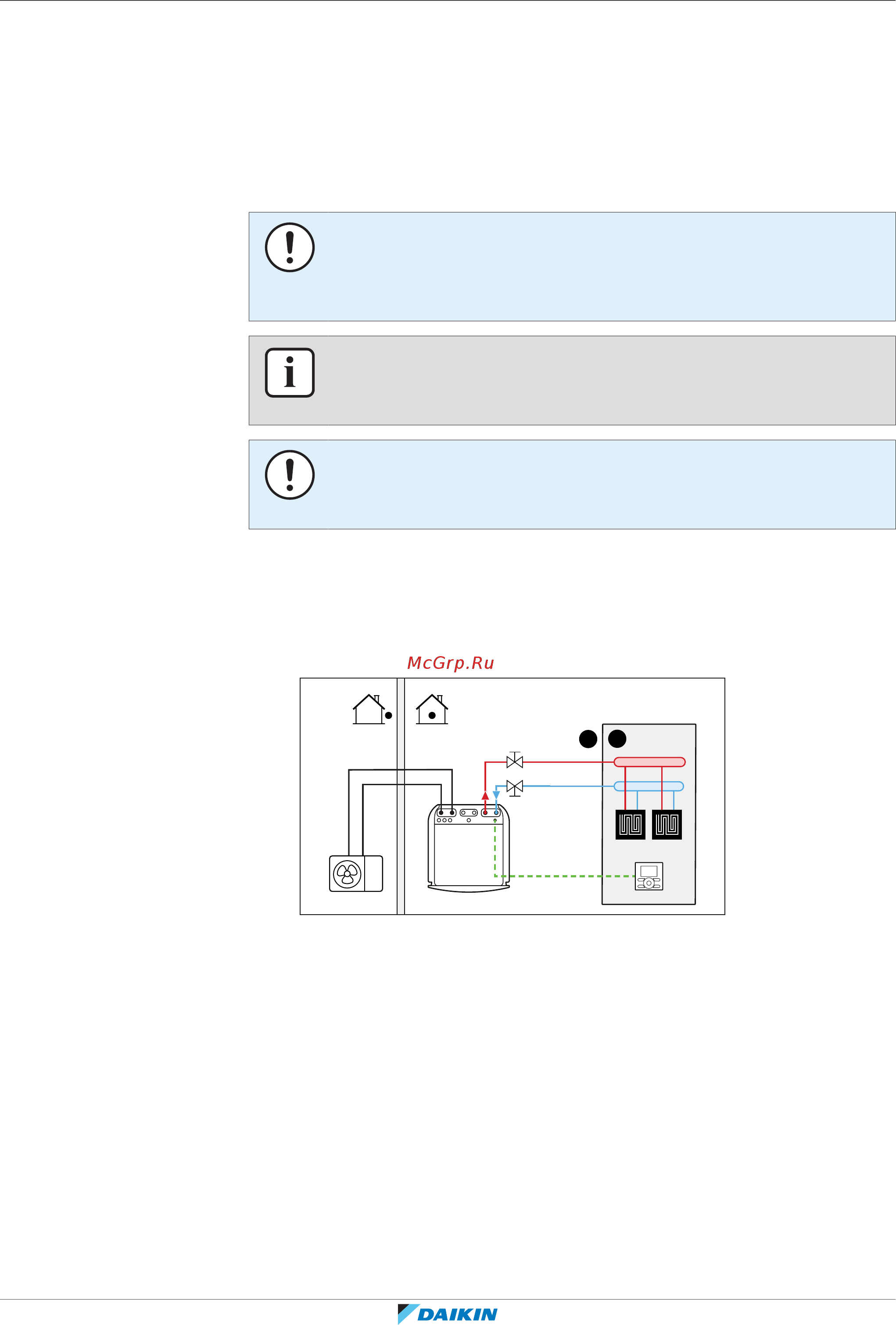

5.2.1 Single room
Underfloor heating or radiators – Wired room thermostat
Setup
A
B
a
A Main leaving water temperature zone
B One single room
a User interface used as room thermostat
▪ For more information about connecting the electrical wiring to the unit, see:
- "8.2Connections to the outdoor unit"[489]
- "8.3Connections to the indoor unit"[490]
▪ The underfloor heating or radiators are directly connected to the indoor unit.
▪ The room temperature is controlled by the user interface used as room
thermostat (EKRUDAL1).
