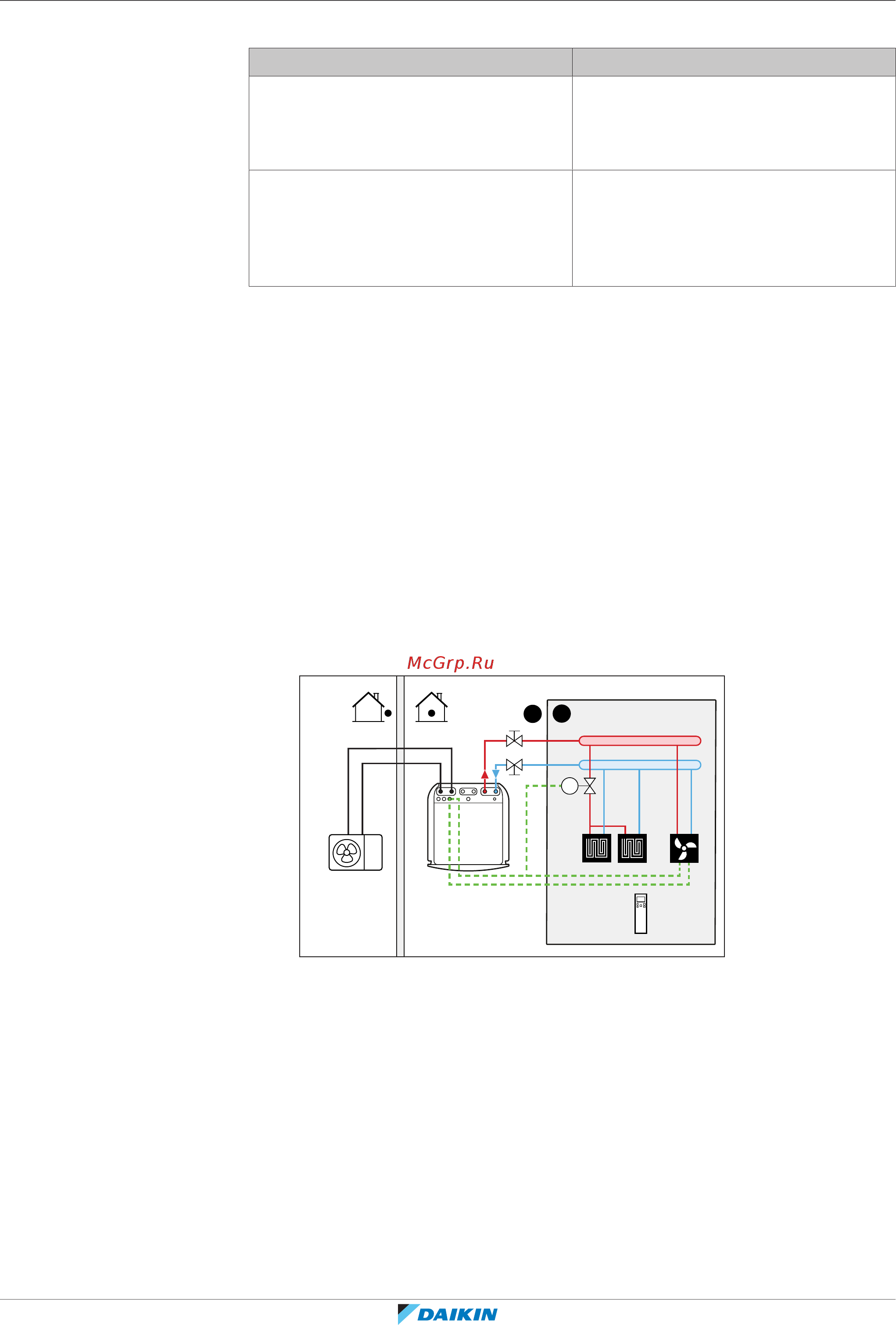

![Daikin EHFH03S18DA3V [27/204] Application guidelines](/views2/1749128/page27/bg1b.png)
5 | Application guidelines
Installer reference guide
27
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05
Configuration
Setting Value
Unit temperature control:
▪ #: [A.2.1.7]
▪ Code: [C-07]
1 (Ext RT control): Unit operation
is decided by the external thermostat.
External room thermostat for the main
zone:
▪ #: [A.2.2.4]
▪ Code: [C-05]
1 (Thermo ON/OFF): When the used
external room thermostat or heatpump
convector can only send a thermo ON/
OFF condition.
Benefits
▪ Cooling. The heat pump convector offers, besides heating capacity, also excellent
cooling capacity.
▪ Efficiency. Optimal energy efficiency because of the interlink function.
▪ Stylish.
Combination: Underfloor heating + Heatpump convectors
▪ Space heating is provided by:
- The underfloor heating
- The heatpump convectors
▪ Space cooling is provided by the heat pump convectors only. The underfloor
heating is shut off by the shut-off valve.
Setup
M1
a
A
B
A Main leaving water temperature zone
B One single room
a Remote controller of the heat pump convectors
▪ For more information about connecting the electrical wiring to the unit, see:
- "8.2Connections to the outdoor unit"[489]
- "8.3Connections to the indoor unit"[490]
▪ The heatpump convectors are directly connected to the indoor unit.
▪ A shut-off valve (field supply) is installed before the underfloor heating to
prevent condensation on the floor during cooling operation.
