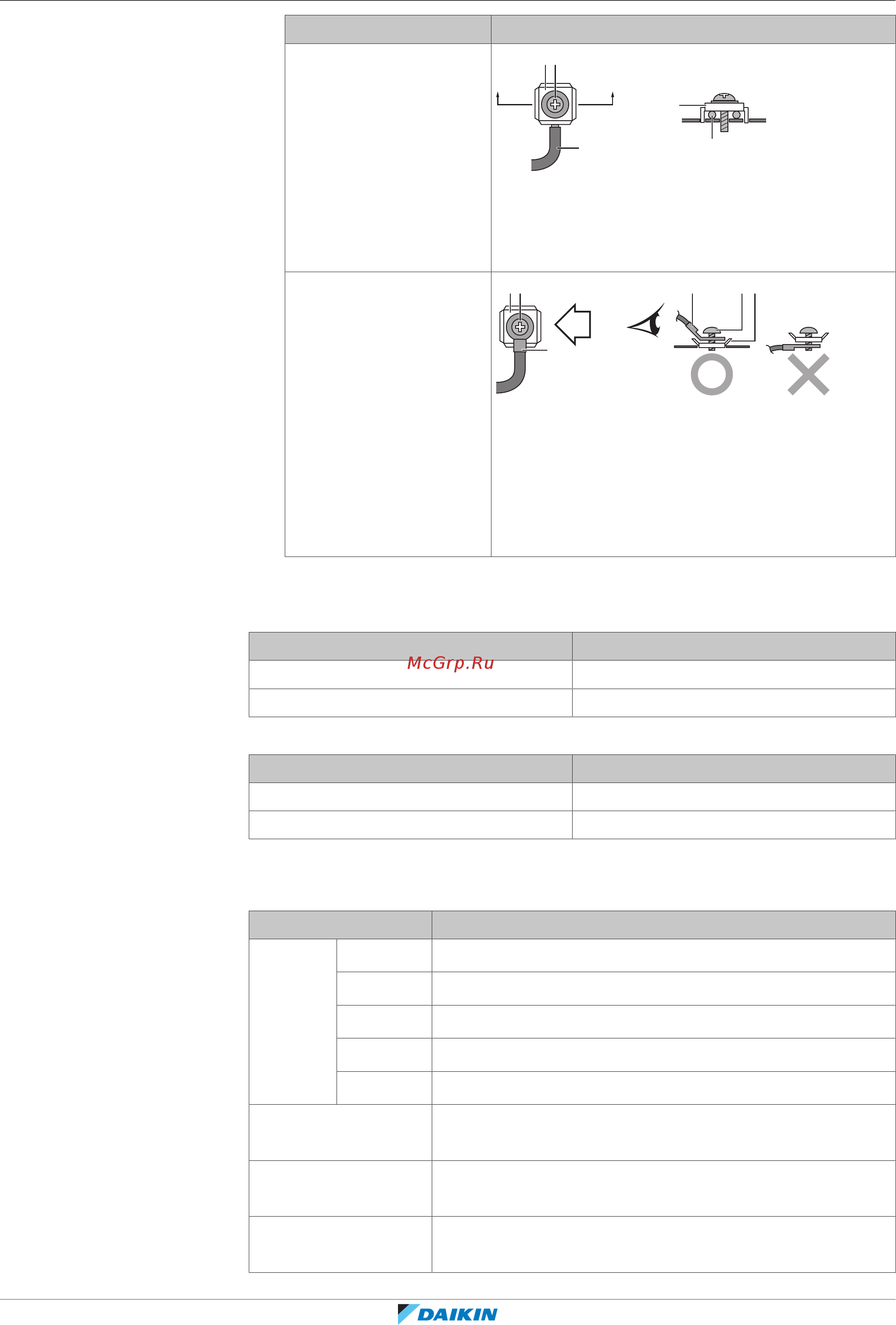

8 | Electrical installation
Installer reference guide
87
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05
Wire type Installation method
Single-core wire
c b
c
aa
A
AA´
A´
a Curled single-core wire
b Screw
c Flat washer
Stranded conductor wire
with round crimp-style
terminal
c b ba c
a
B
B
a Terminal
b Screw
c Flat washer
O Allowed
X NOT allowed
Tightening torques
Outdoor unit:
Item Tightening torque (N•m)
M4 (X1M) 1.2~1.5
M4 (earth) 1.2~1.5
Indoor unit:
Item Tightening torque (N•m)
M4 (X1M, X2M, X5M) 1.2~1.5
M4 (earth) 1.2~1.5
8.1.3 Specifications of standard wiring components
Component
Power
supply
cable
MCA
(a)
13.0A
Voltage 230V
Phase 1~
Frequency 50Hz
Wire sizes Must comply with applicable legislation
Interconnection cable Minimum cable section of 1.5mm² and applicable for
230V
Recommended field
fuse
16A
Earth leakage circuit
breaker
Must comply with applicable legislation
