ASUS RS720-E9-RS8/RS8-G 7-13

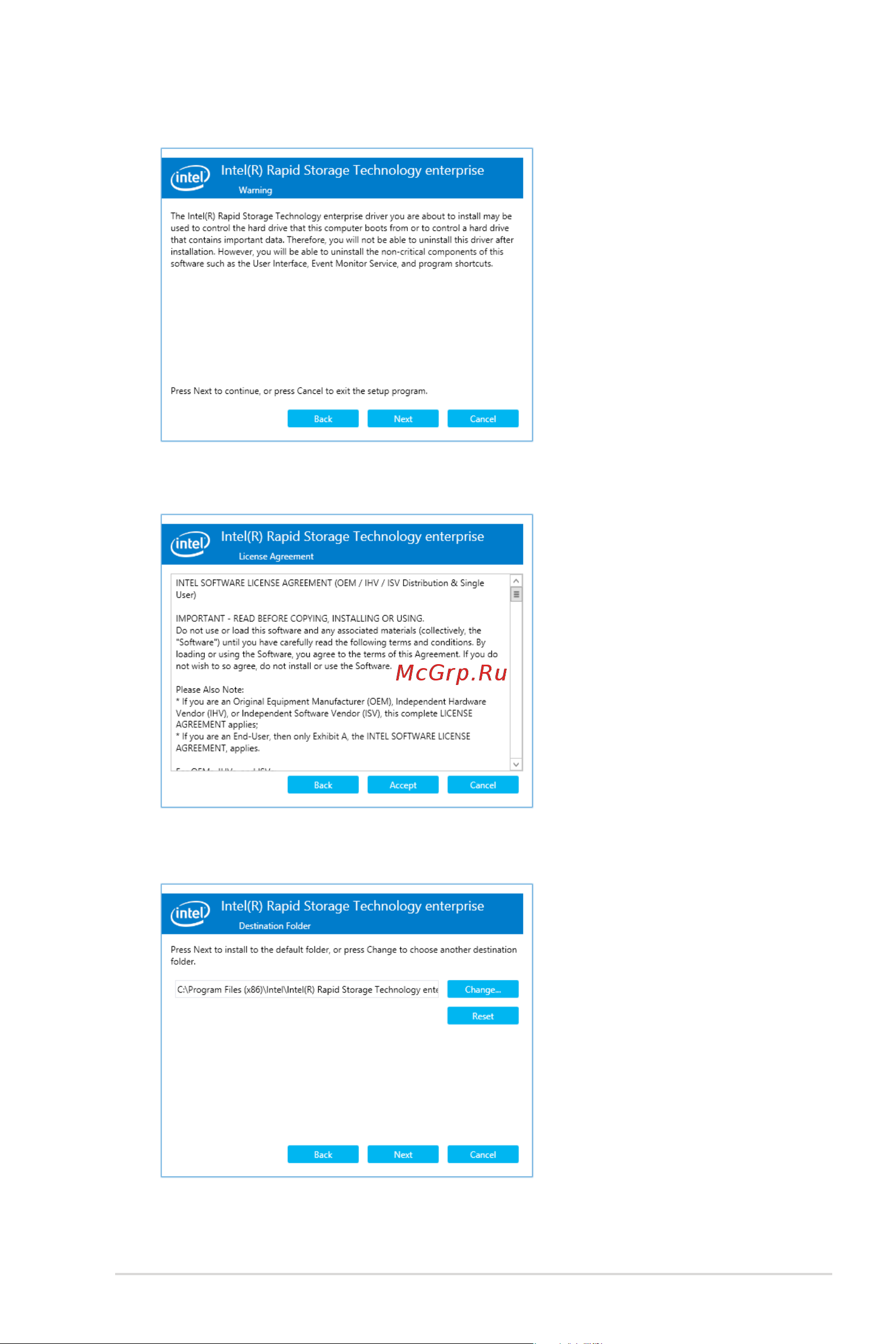

5. Read the Warning message and click Next to continue.
6. Read the License Agreement and click Accept to continue the process.
7. Select the destination folder and click Next to continue.
