7-14 Chapter 7: Driver Installation

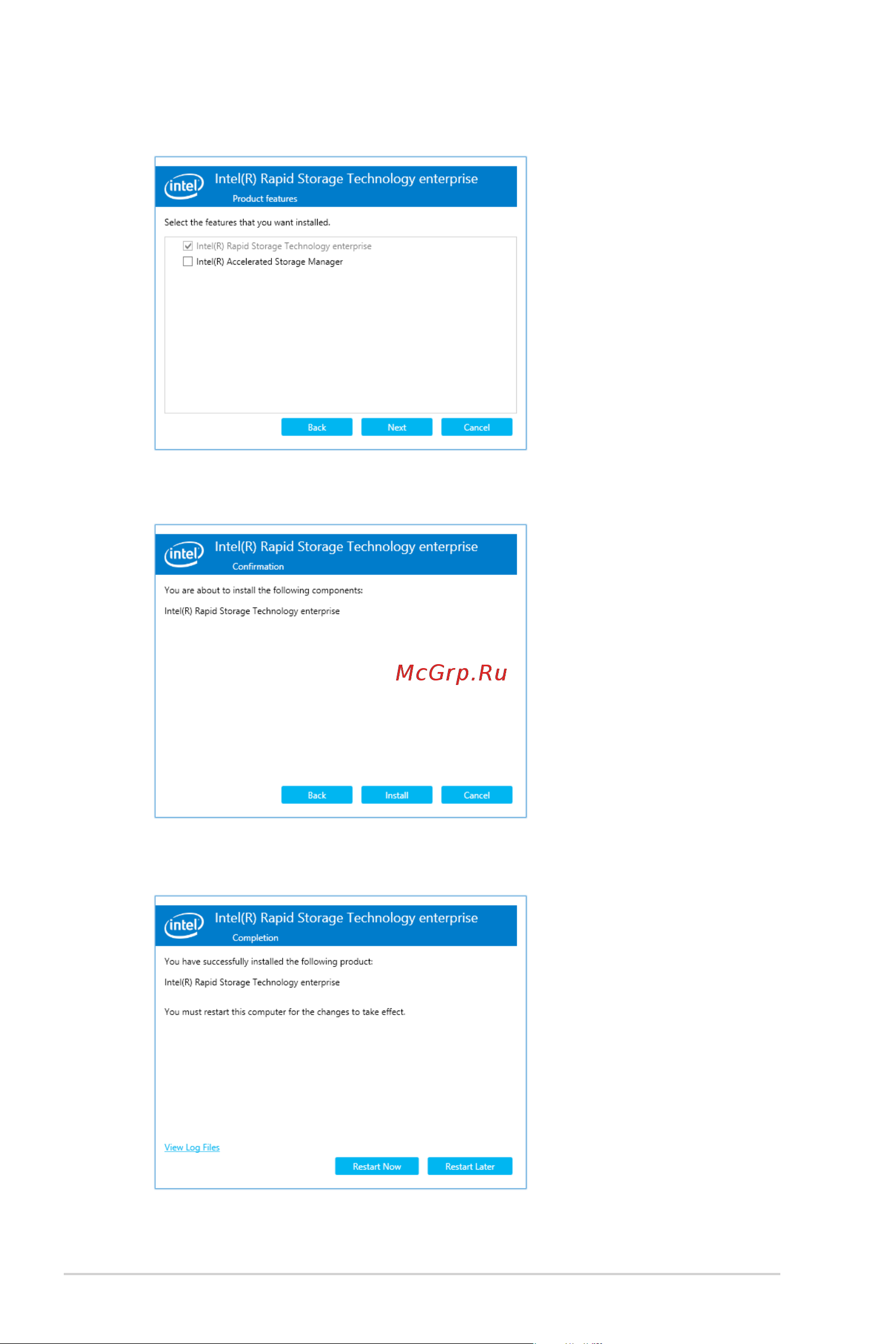

8. Tick the features that you would like to install and click Next to continue.
9. Click Install to start the installation process.
10. Click Restart Now to complete the setup process.
