Daikin 2MXS40H2V1B [25/32] Dimensional drawings
![Daikin 2MXS40H2V1B [25/32] Dimensional drawings](/views2/1771726/page25/bg19.png)
• Split - Sky Air
®
• Outdoor Unit
23
• Outdoor Unit • Multi model application • MXS-H

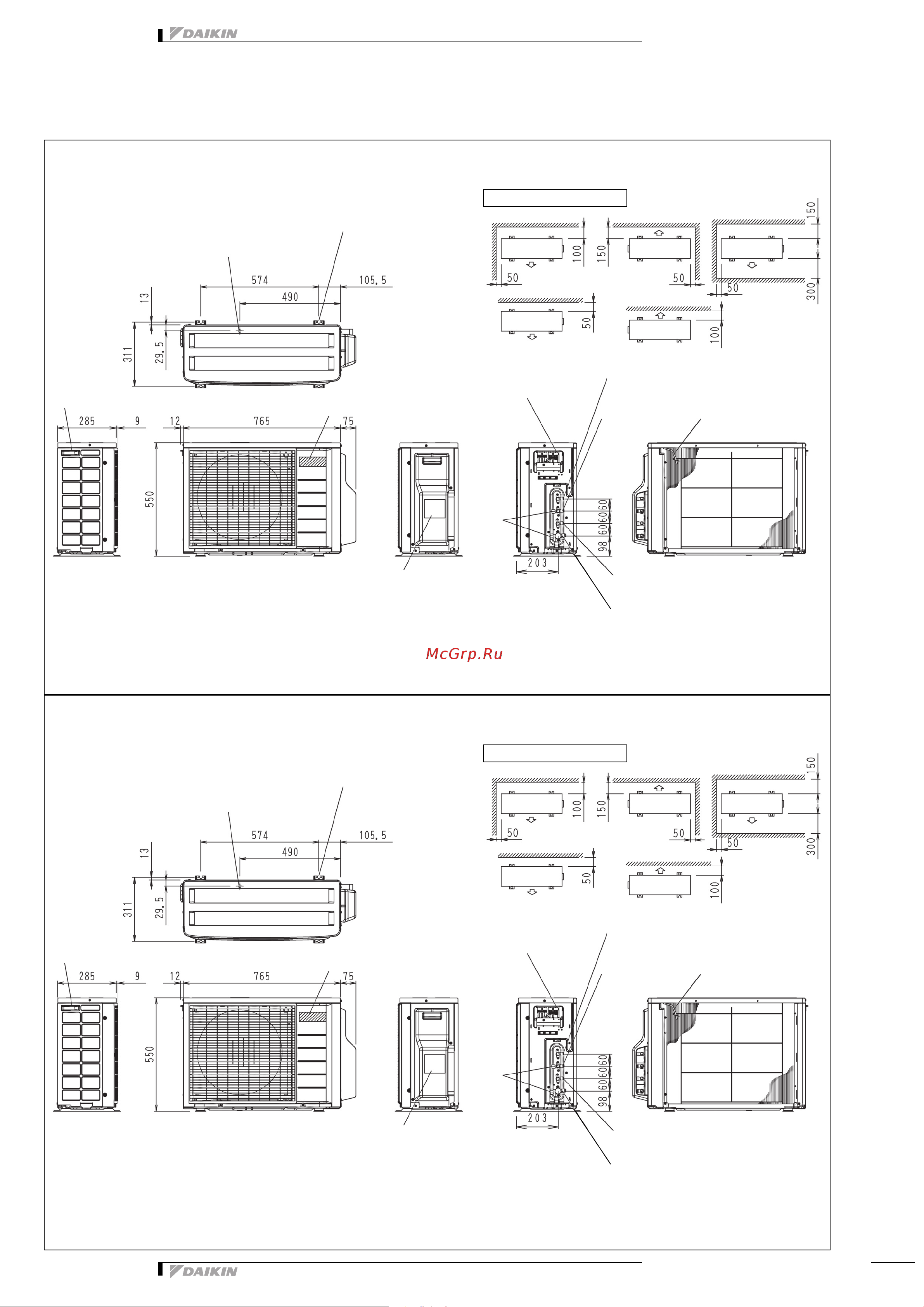

5 Dimensional drawings
5 - 1 Dimensional Drawings
2MXS40H
3D058712B
Minimum space for air passage
Wall height on air outlet side
= less than 1200
Handle
Brand name label
4-holes for anchor bolts
(M8 or M10)
Drain outlet
(I.D Ø15.9 hose for connection)
Name plate
2-terminal strip with
earth terminal
Liquid stop valve
(Ø6.4CuT)
Liquid stop valve
(Ø6.4CuT)
Gas stop valve
(Ø9.5CuT)
Gas stop valve
(Ø9.5CuT)
<< Room A >>
<< Room B >>
Outdoor thermistor
In case of removing
stop valve corner
Service
port
2MXS50H
3D058713B
Minimum space for air passage
Wall height on air outlet side
= less than 1200
Handle
Brand name label
4-holes for anchor bolts
(M8 or M10)
Drain outlet
(I.D Ø15.9 hose for connection)
Name plate
2-terminal strip with
earth terminal
Liquid stop valve
(Ø6.4CuT)
Liquid stop valve
(Ø6.4CuT)
Gas stop valve
(Ø9.5CuT)
Gas stop valve
(Ø12.7CuT)
<< Room A >>
<< Room B >>
Outdoor thermistor
In case of removing
stop valve corner
Service
port
