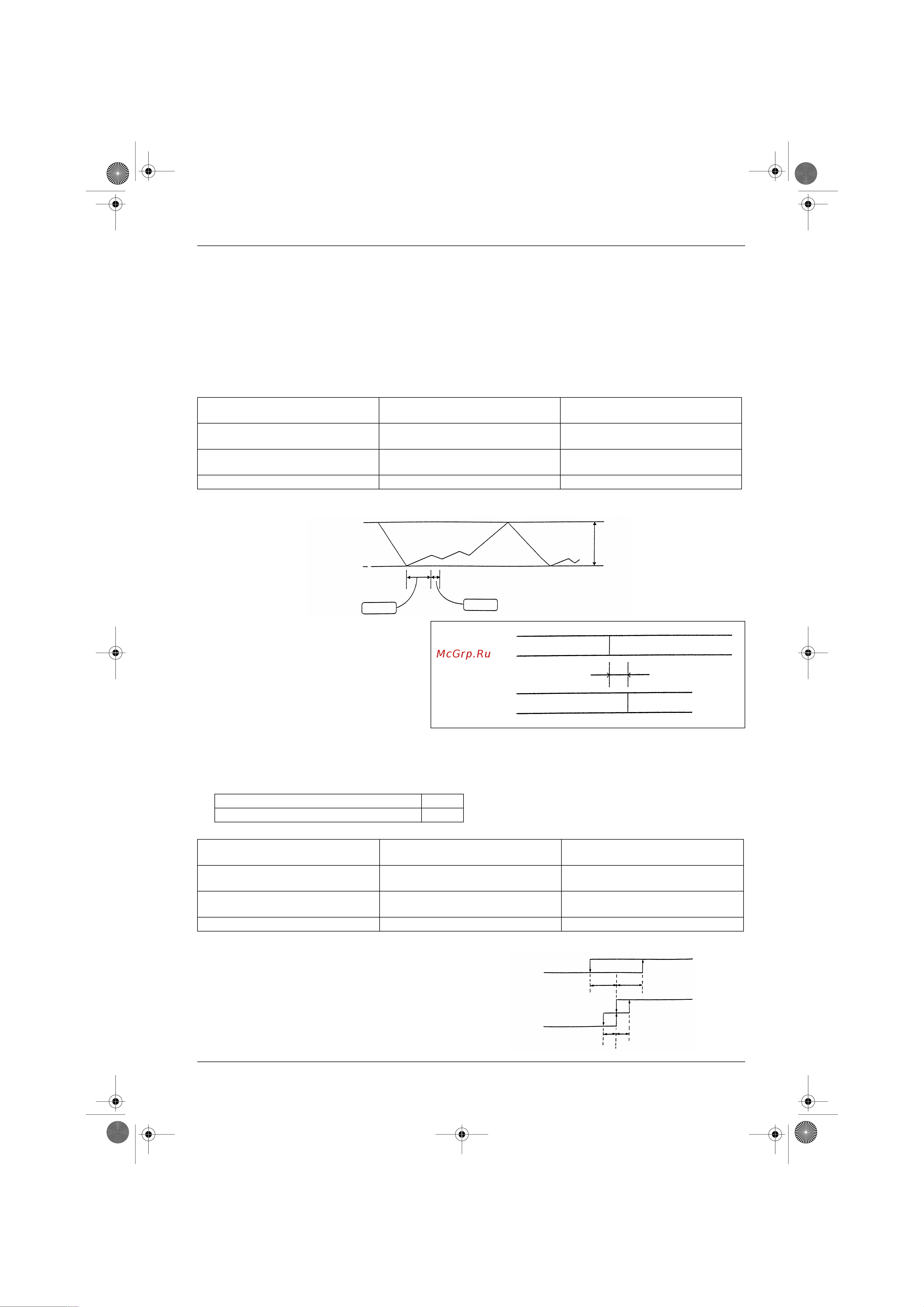

SiE-84
6 Service Manual
3. Main functions
(1) Operation Mode
(1) -1 Program Dry Operation (* Cooling Only Model)
By the function of the micro-computer, program dry operation reduces the humidity keeping the temperature in a minimum drop.
Room temperature and air volume can not be controlled by room temperature adjusting button and air volume adjusting button
because they are controlled automatically. When the program dry function starts, dry operation is provided, and then it repeats 5
minute suspension and 4- minute dry operation alternately. When the room temperature rises, it repeats the above process from
the beginning.
*1 Dry operation activating (compressor on) temperature
*2 Room temperature difference between activation and suspension of dry operation
(1) -2 Operation Mode (* Heat Pump Model Only)
Cooling : Remote control setting range … 18 to 32° C (Remote control display temperature) =
(Indoor unit thermistor setting temperature)
Heating : Remote control setting range … 14 to 28° C (Remote control display temperature) + * ° C =
(Indoor unit thermistor setting temperature)
Program dry : Temperature setting is determined bu room temperature Da in the following method.
Room temperature Da at starting of
program dry operation
Program dry activating temperature *1 Differential *2
Above 24° C
Room temperature Da at starting of
program dry operation
1,5 deg
18° C - 24° C
Room temperature Da at starting of
program dry operation
1,0 deg
Bellow 18° C 18˚ C 1,0 deg
NOTE
1. The program dry function is not operated
when the room temperature is at 18° C
less.
2. In monitoring operation, fan rotates
5 seconds after the compressor starts its
operation
* Ceiling Suspended Installation 2˚C
Floor Level Installation 0˚C
Room temperature Da at starting of
program dry operation
Program dry activating temperature *1 Differential *2
Above 24° C
Room temperature Da at starting of
program dry operation
1,5 deg
18° C - 24° C
Room temperature Da at starting of
program dry operation
1,0 deg
Below 18° C 18˚ C 1,0 deg
*1 Dry operation activating (compressor on) temperature
*2 Room temperature difference between activation and suspension
of dry operation
Auto cool/heat : remote control setting range … 18 to 28° C
(remote control display temperature) = (Indoor unit thermistor
setting temperature)
The temperature control functions as follows.
Activating temp.
Suspension temp.
Differential
5 minutes
4 minutes
Compressor
Indoor fan
Suspension
5 seconds
Suspension
Operation
L tap
Heating
changeover
Thermostat ON/OFF
Heating thermo ON
Cooling thermo ON
2 deg
2 deg
Automatic cooling
Automatic
heating
1 deg 1 deg
Set temperature (temperature to turn thermo OFF)
SIE2-84.book Page 6 Wednesday, May 30, 2001 10:29 AM
