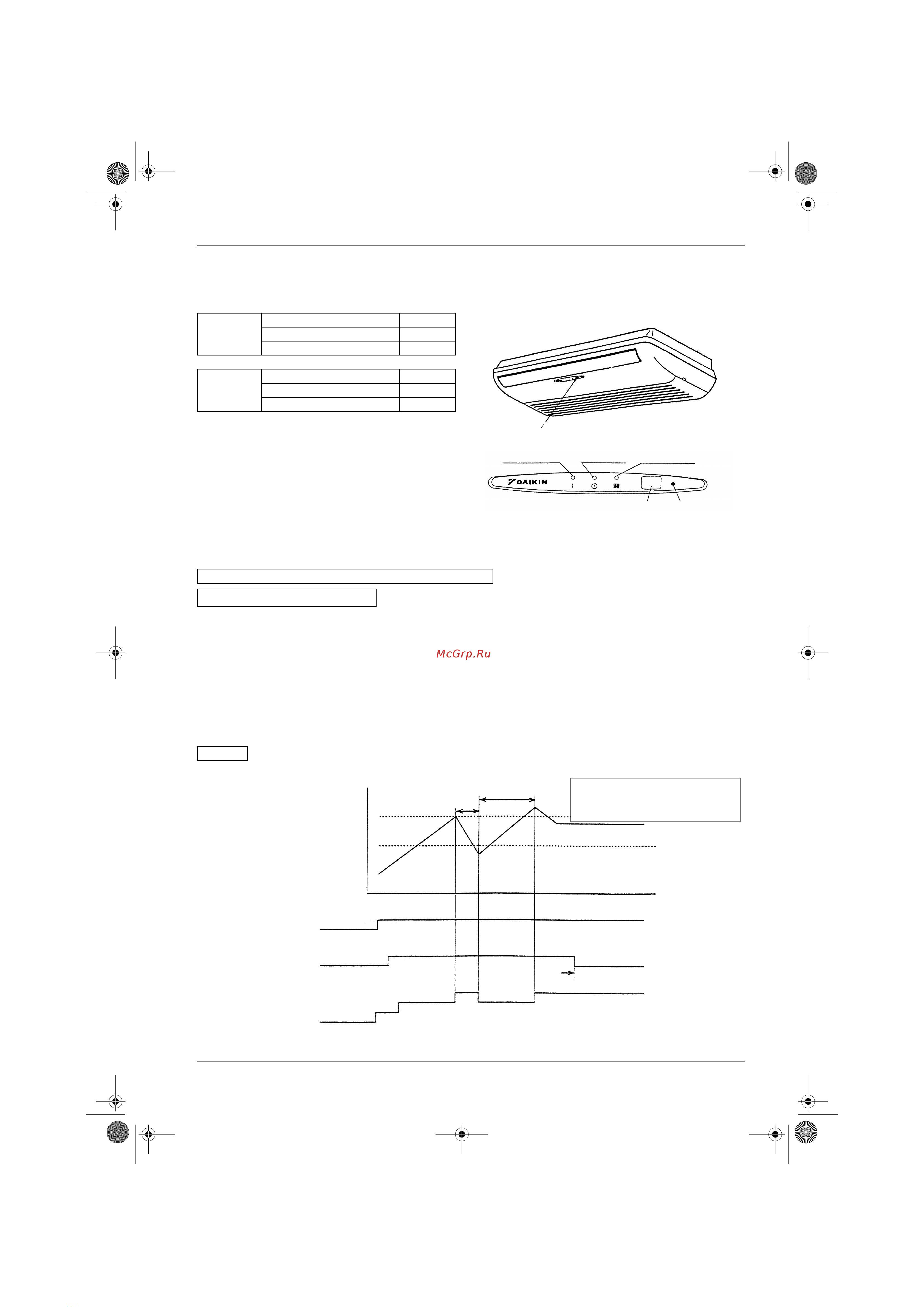

![Daikin FLY35GV1NB [18/67] 7 emergency operation function on off switch](/img/pdf.png)
Daikin FLY35GV1NB [18/67] 7 emergency operation function on off switch
![Daikin FLY35GV1NB [18/67] 7 emergency operation function on off switch](/views2/1783232/page18/bg12.png)
SiE-84
10 Service Manual
(7) Emergency Operation Function (ON/OFF Switch)
The unit can be turned ON only pressing ON/OFF operation switch. This is handy when the remote control cannot be found or if
the batteries are dead.
The operation condition is as follows
(8) Powerful Operation
During cool and program dry operation, when the POWERFUL button on the remote control is pressed, the thermistor setting is
changed to the lowest setting of the remote control and the fan runs at the maximum rpm (Note). During fan operation, air is blown
at the maximum fan rpm.
●
In COOL mode.
To maximize the cooling effect, the temperature setting is fixed to 18° C and the air flow rate is fixed to the maximum setting.
(H tap + 50 rpm).
The temperature and air flow settings are not variable.
●
In DRY mode.
The temperature setting is lowered by 3° C and the air flow rate is slightly increased. You can repeat POWERFUL operation if
you need even more dehumidification.
●
In HEATING mode (* Heat Pump Model Only).
(1) When indoor heat exchanger temperature is 25° C or higher
Fan speed .. Powerful speed (H+
α
)
Temperature setting … 28° C
Powerful heating function time chart
(Note) When the POWERFUL button is pressed during a heating operation, the unit sets to the powerful fan speed.
The temperature setting and fan speed are automatically set to the powerful settings.
Cooling
only Model
Operation mode Cool
Fan speed Auto
Set temperature 22˚ C
Heat Pump
Model
Operation mode
Cool/Heat
Fan speed Auto
Set temperature 22˚ C
Pressing the switch again will turn the unit OFF.
Note…Max. fan rpm = H tap set by remote control + 50 rpm
Notes on POWERFUL operation
Fig. 1-1
ON/OFF button
Operation lamp (green) Timer lamp (yellow)
Receiver ON/OFF button
Cleaning lamp (red)
Indoor heat exchanger temperature (° C)
Powerful fan speed start temperature
Powerful fan speed cancelling temperature
Powerful function ON
compensation timer
Powerful function OFF
compensation timer
After the powerful fan speed start temperature is
reached, the fan operates at the powerful fan
speed unless the temperature drops to the
powerful fan speed cancelling temperature.
t : Time
Operation (heating)
ON
OFF
Powerful function
ON
OFF
Auto off
Return to original setting
20 min.
Fan speed control
Powerful fan speed
Remote control setting fan speed (Cold draft
preventing fan speed)
OFF
SIE2-84.book Page 10 Wednesday, May 30, 2001 10:29 AM
