(9) Step Flow

In the beginning of a heating operation, the unit sends warm air towards the wall behind the unit to prevent the air from directly

blowing on people in the room. After a while, it blows air downward to warm up the area close to the floor. After the walls and floor

become warm, the unit sends out air according to the set angle and fan speed.

(Air flow angle and fan speed set from remote control).

1) Heating (in the case of Swing-OFF start)

2) Heating (in the case of Swing-ON start)

* The flaps remain in the preset position for about 10 seconds before they return to the full-open processing

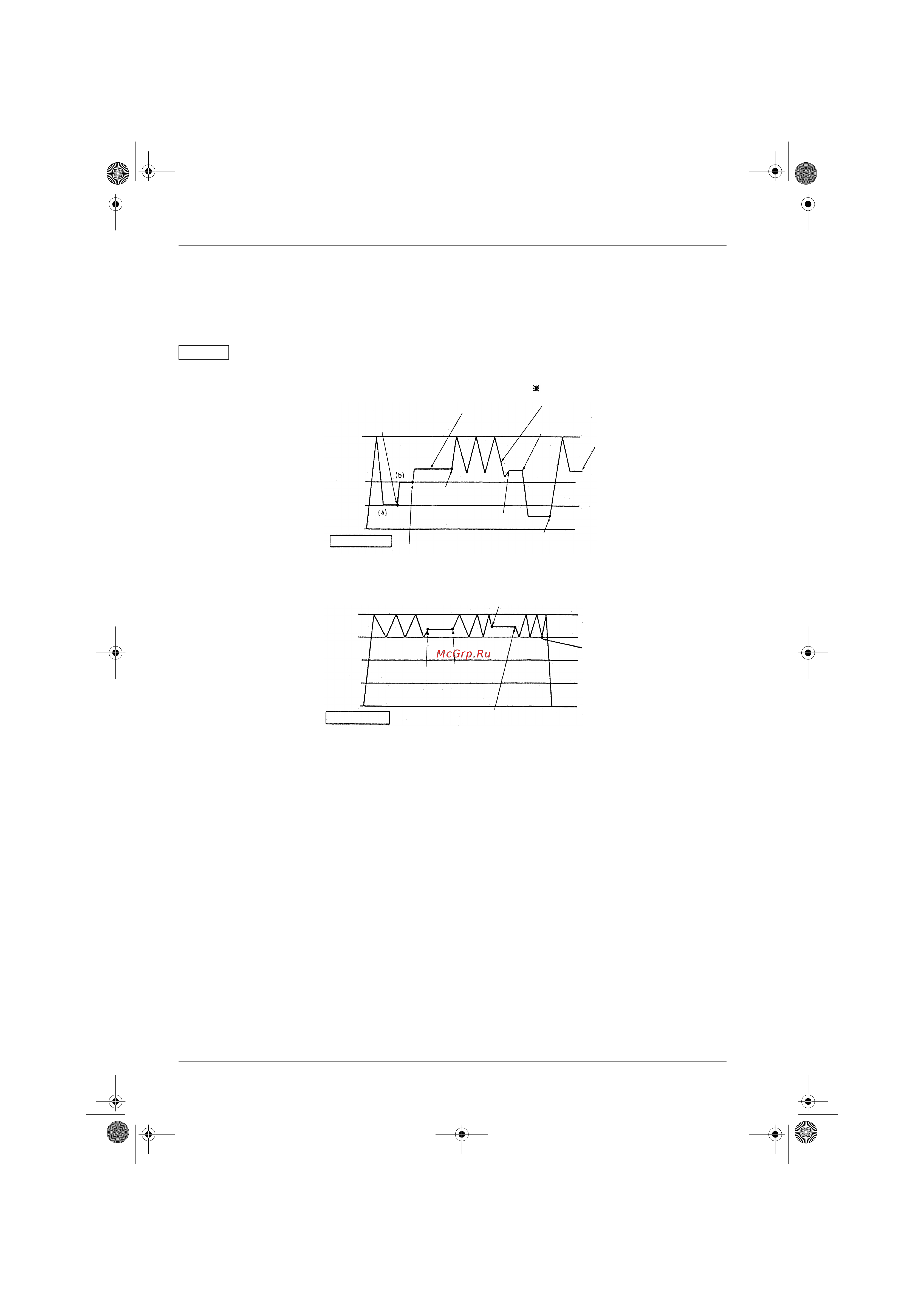

Fig. 1-8

Step 1 Step 2 Step 3

The flap is set to angle The flaps move to send air

downward when 5 minutes

elapse from (a) or the heat

exchanger temperature

becomes 34 ° C or higher.

The flaps move to the

position of the stored data

when 5 minutes elapse from

(b) or condition *1 is met.

In the case of thermostat OFF flap

stops and keeps the angle when it stops.

Defrosting start

Position prior to

thermostat OFF

Initial value of 50°

or previous

setting position

5 minutes after (a) or heat

exchanger temperature of

34 °C or higher.

Flap angle

Fully open

Lower swing limit

Step 1

Fully closed

Operation ON

Swing OFF

Swing ON

Defrosting complete

2 minutes after (b), or room temperature thermostat temperature -(radiation heat

sensor temperature- indoor unit thermostat temperat

ure)  15 °C for 10 seconds (*1)

Flap angle

Fully open

Upper swing limit

Lower swing limit

Step 1

Fully closed

Operation ON

Thermostat OFF

Operation OFF

Thermostat ON

Swing OFF Swing ON
