Daikin FLY35GV1NB [61/67] Removal of electrical parts box and pc board 1 3 be sure to turn off all power supplies

SiE-84

Service Manual 53

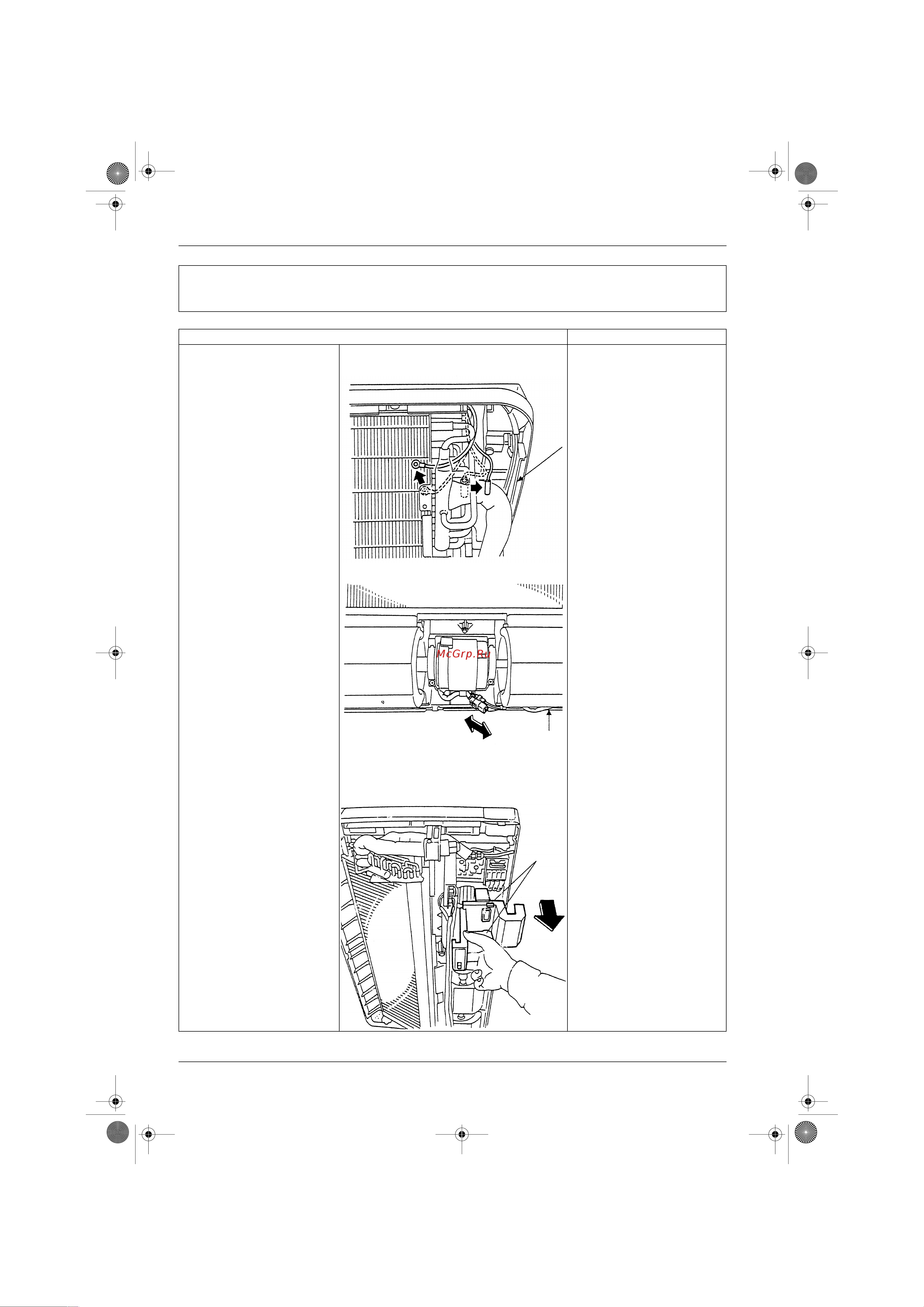

Removal of electrical parts box and PC Board (1/3) Be sure to turn off all power supplies

Procedure Points

1. Removing PCB



Remove earth wire and heat

exchanger thermistor harness.

 Remove two connectors of

interconnection wire at rear

side of motor.

 Remove cover of electrical

parts box. (Disengage two

hooks).

Remove wires with clips (From hook)

❈Clamp harnesses and wires

with clips as they were when

reassembling.

Negligence of above procedure

may result in catching wire with

front cover and causes

malfunction.

Remove wires

with clips (from

hook).

Hook.

SIE2-84.book Page 53 Wednesday, May 30, 2001 10:29 AM
