SiE-84
8 Service Manual
(2) -2 Monitoring Function (* Heat Pump Model)
Cooling : After the condition becomes Da > (Indoor unit thermistor setting temperature Das) while thermostat OFF;.
Heating : After the condition becomes Da < (Indoor unit thermistor setting temperature Das) while thermostat OFF.
(3) Auto restart
When a power failure occurs, the unit's memory keeps the operation data of immediately before the power failure. When the power
returns, the unit restarts operating based on the stored data.
The memory maintains the following operation data.
(1) ON/OFF
(2) Operation mode
(3) Temperature setting
(4) Fan speed setting
(5) Air direction setting
(6) Timer setting
(7) Night set mode setting …<Note> The timer does not function during a power failure. Therefore, the timer activation may
be delayed from the set time in a case the power failure lasts for an extended period of time.
(8) Fault diagnosis code
(9) Fan operation time for filter indicator.
(4) 3-minutes Standby Function
When the compressor turns OFF, it doesn't turn ON for 3 minutes

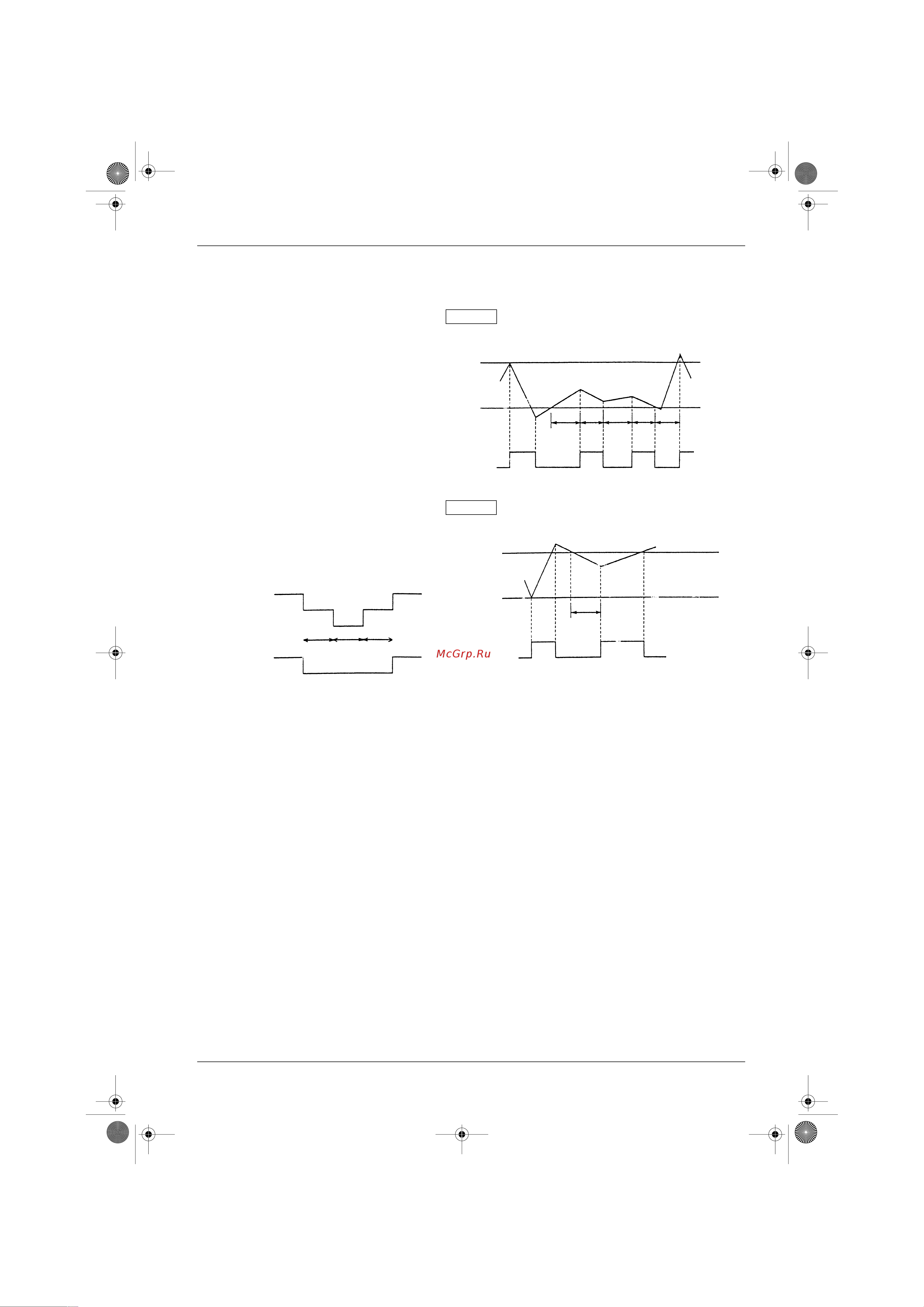

Fig. 1-3
●
If Das < Da
Das + 1 i C after 5
minutes, the thermostat turns ON for
four minutes.
●
If Da > Das + 1 i C within 5 minutes, the
thermostat turns ON.
Fig. 1-4
●
If Das - 1 i C
Da < Das after 4 minutes, the
thermostat turns ON.
●
If Da > Das - 1 i C within 4 minutes, the
thermostat turns ON
●
Indoor Fan Control (While Thermostat Off)
DAS +1˚C
DAS
COMP
ON
OFF
5 minutes
4 minutes 5 minutes
Less than
4 minutes
More than
3 minutes
ON
OFF
COMP
Indoor
Fan
Set
W1 -
WO -
3 minutes
4 minutes 3 minutes
DAS -1˚C
DAS
ON
OFF
COMP
4 minutes
+0 sec.
-10 sec.
SIE2-84.book Page 8 Wednesday, May 30, 2001 10:29 AM
