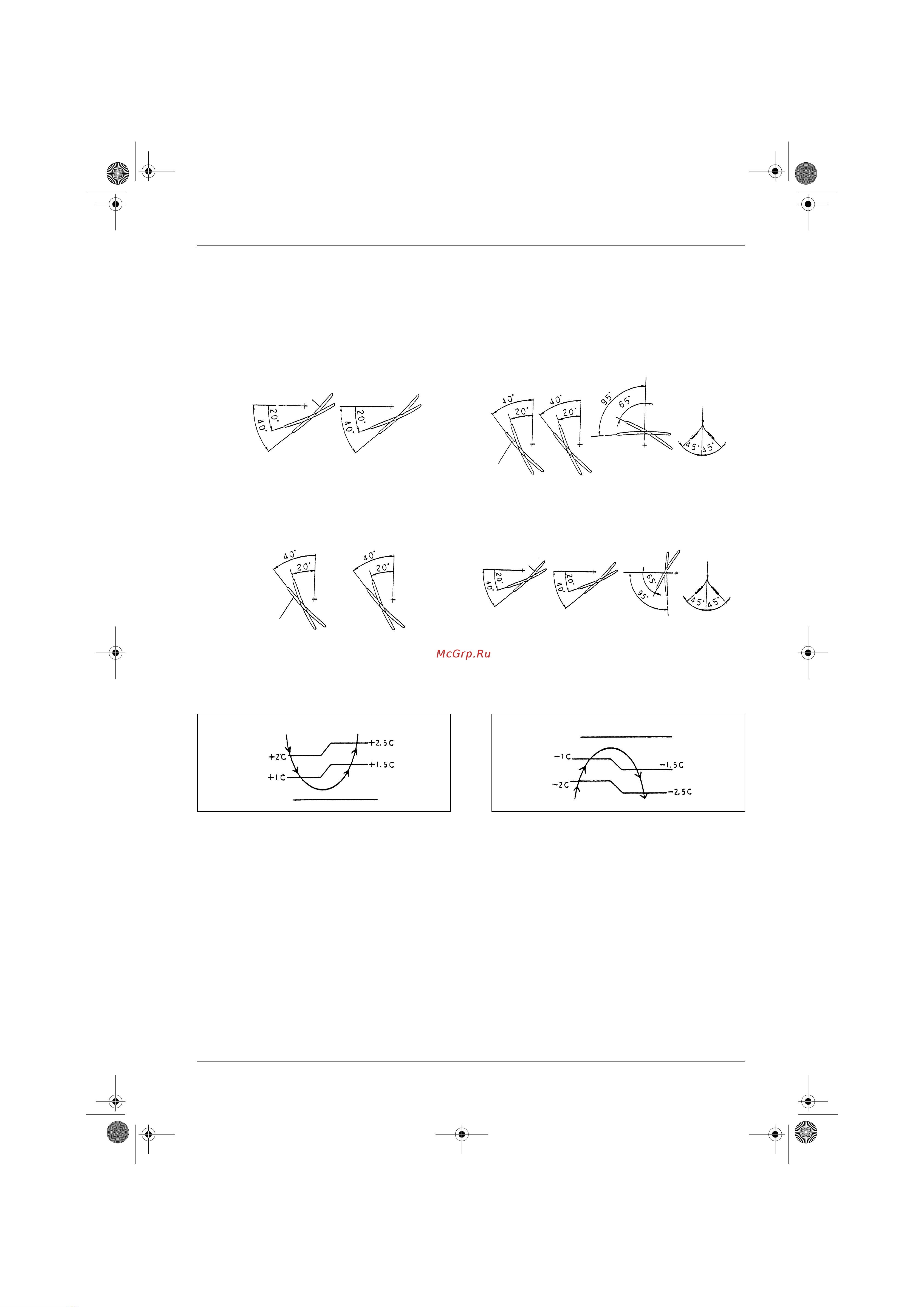

Daikin FLY35GV1NB [20/67] 10 auto swing

SiE-84

12 Service Manual

(10) Auto Swing

The laps automatically move up and down to send air over a wide area.

(11) Auto Fan Speed

When the fan speed is set to Auto or when the unit operates in the program dry mode, the unit automatically adjusts to the most

appropriate fan speed according to the temperature setting and room temperature.

●

Cooling Only Model

●

Heat Pump Model

(A) Floor Level Installation (A) Floor Level Installation

BLADE ANGLE BLADE ANGLE

(B) Ceiling Suspended Installation (B) Ceiling Suspended Installation

BLADE ANGLE BLADE ANGLE

●

Cooling

●

Heating

UP/DOWN (AUTOMATIC)

COOLING

FLAP

DRY

UP/DOWN (AUTOMATIC)

COOLING DRY

FLAP

HEATING RIGHT/LEFT

(MANUAL)

UP/DOWN (AUTOMATIC)

COOLING DRY

FLAP

UP/DOWN (AUTOMATIC)

COOLING DRY HEATING RIGHT/LEFT

(MANUAL)

FLAP

Thermo-set

Temperature

Thermo-set

Temperature
