SiE-84

Service Manual 7

(2) Monitoring Function

Monitoring function is activated while cooling and program dry operation are suspended

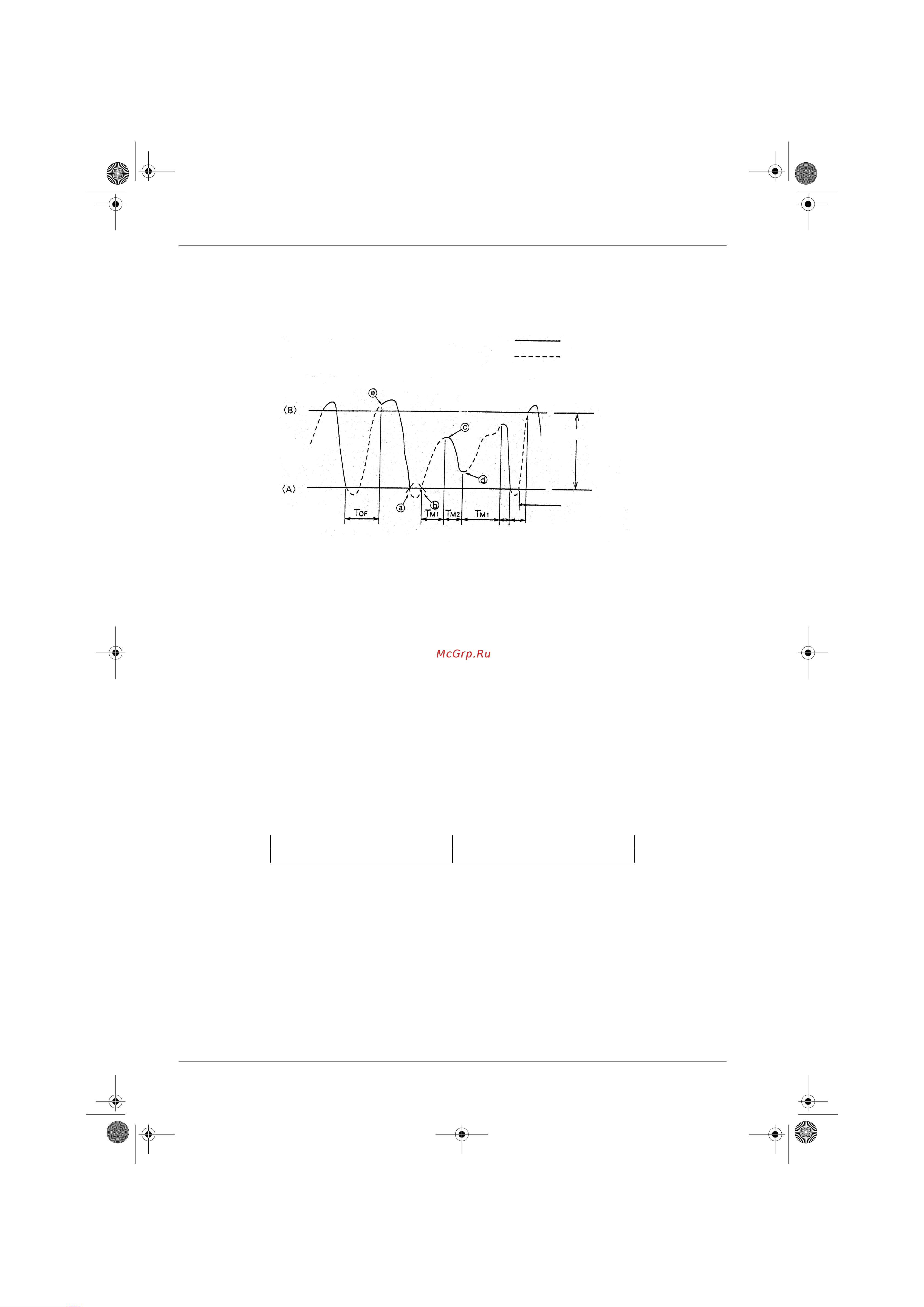

(2) -1 Cooling Monitoring Function (*Cooling Only Model)

TOF: Compressor recycling guard timer (3-minute timer)

TM1 : 5- minute timer

TM2 : 4-minute timer

compressor turns OFF (point a) the 5-minute timer starts.

After that, when the suction temperature is within the differential range, even after a lapse of 5 minutes, the compressor is forced

to turn ON (point c).

When the suction temperature is still in the differential range, after another 4-minutes of compressor ON, the compressor is forced

to turn OFF (point d).

The 5 and 4-minute timers are effective only within the differential temperature range, and when the air suction temperature is

reached to (B) or (A) while the timers are counting, timers are reset and the compressor is turned ON or OFF.

(Note, however, that function of placing the compressor in a 3-minute compressor recycling guard timer is provided at point e).

While the compressor is OFF, the indoor fan operation is controlled by tap A during cooling mode.

In the program dry mode, the indoor fan starts operating five seconds after the compressor starts, and it stops operating when the

TM2 or less
