SiE-84
Service Manual 13
(12) Night Set Mode
This mode automatically keeps temperature slightly higher than the temperature setting. In this way, there is no need to worry
about overcooling while sleeping, and it also saves on electricity.
* Cooling Only Model
●
Set the OFF timer
●
The unit will cool the room at the set temperature for 1 hour from when the timer starts counting.
●
After that, the unit will raise temperature 0.5 ° C higher than the set temperature and cool for 30 minutes.
●
After that, the unit will raise temperature another 0.5 ° C and continue cooling at that temperature.
●
Setting the OFF timer forcibly changes the airflow adjustment to the tap-L setting.
●
It is possible to change the airflow setting while the OFF timer is in operation. However, changing the airflow setting cancels
the shift-up of the set temperature.
* Heat Pump Model
During cooling
During heating
●
Set the OFF timer.
●
The unit will heat the room at the set temperature for 1 hour from when the timer starts counting.
●
After that, the unit will lower temperature 2.0° C lower than the set temperature and heat for 30 minutes and continue cooling
at that temperature.
●
Setting the OFF timer forcibly changes the airflow adjustment to the tap-L setting.
●
It is possible to change the airflow setting while the OFF timer is in operation. However, changing the airflow setting cancels
the shift-up of the set temperature.
Note: No higher temperature setting on program dry or auto operation.

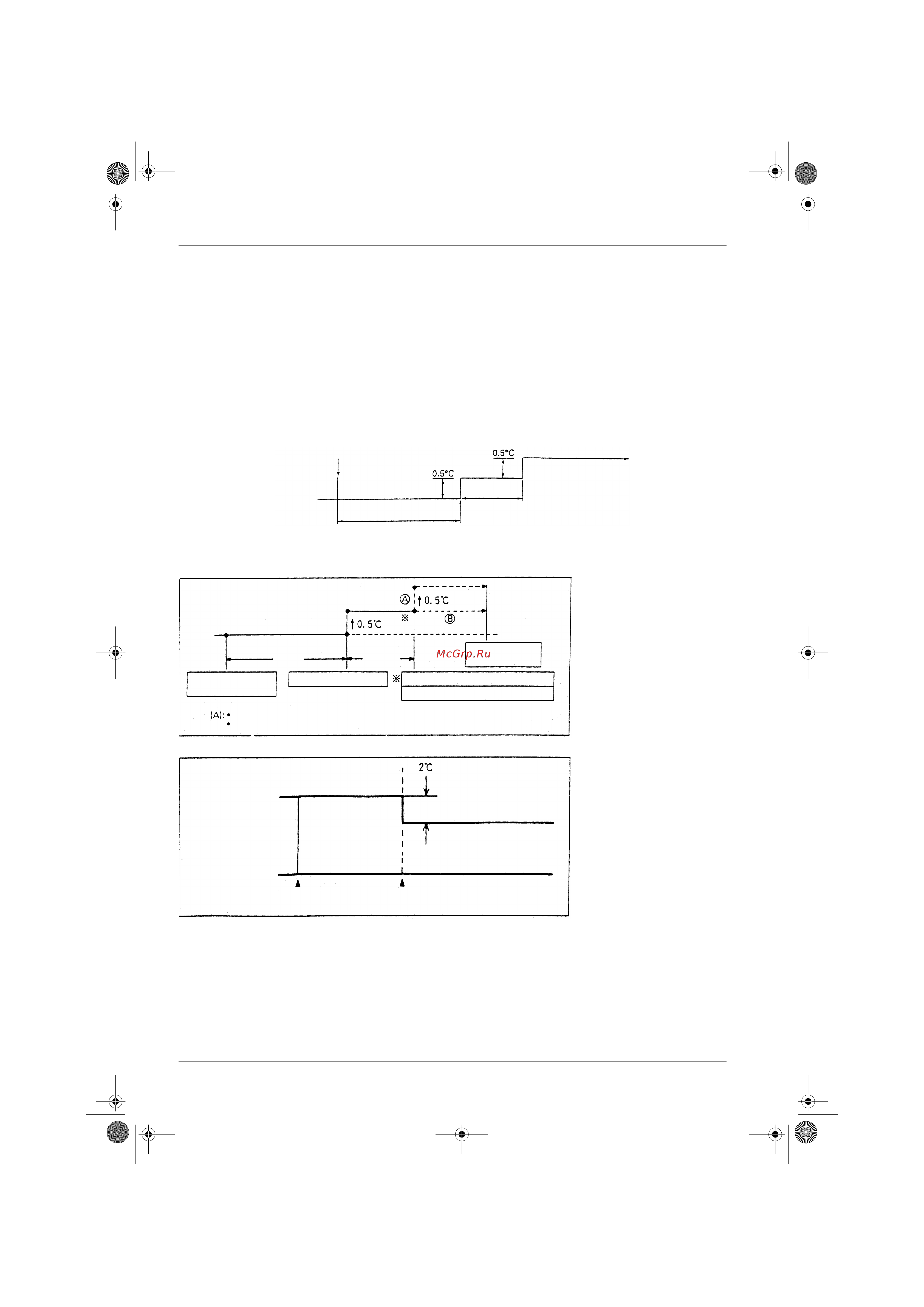

Timer start
Set temp.
60-minutes
30-minutes
Set temperature
+ 1° C
Set temperature
+ 0.5° C
Set temperature
Operation stops
at set time
(A) + 0.5˚ temperature shift
(B) Maintains the same temperature
When the outside temperature is normal, and the set temperature is reached.
When the outside temperature is high (27° C or higher).
Timer operation
Night set circuit ON
+ 0.5° temperature shift
1 hour
30
minutes
Thermostat setting
Timer operation
Night set circuit ON
1 hour later
