SiBE18-821 Indoor Unit (SkyAir Models)
Function 105

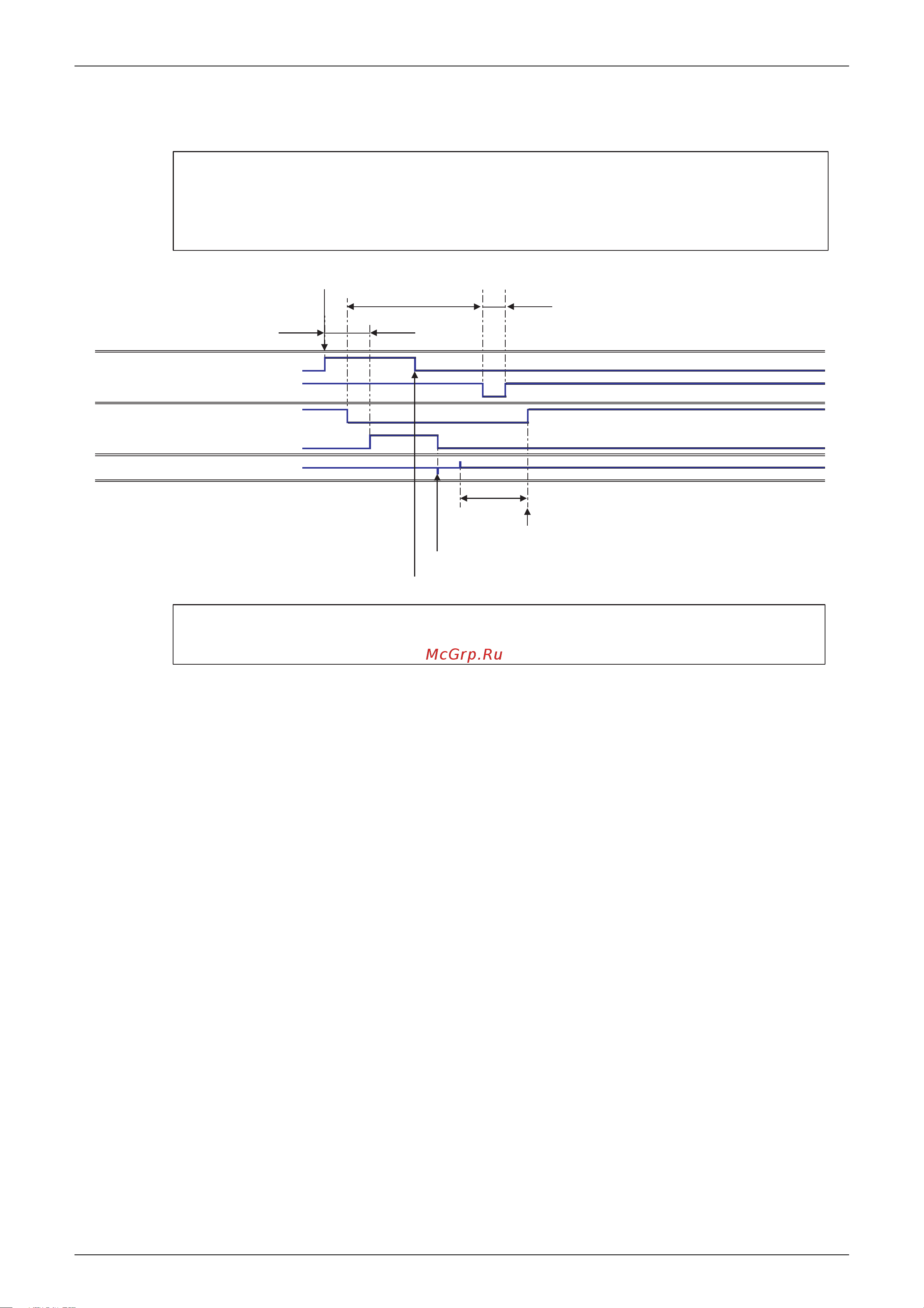

Occurrence of drain water level abnormality
5
sec
A
10
sec
sec
Compressor starts operation after 2 minutes from
remote controller ON.
(When 3-min standby of compressor is complete.)
Alarm indication will be turned off with the remote controller
OFF operation after recovery of drain water level abnormality.
Recovery of drain water level abnormality
ON
2 min
Compressor
ON
OFF
Error processing
Abnormal
Normal
Remote controler
5min
Drain pan
Water level abnormality
Normal
Drain pump
ON
OFF
OFF
Note : (1 On the whole of cooling and dry operation)
Recovery operation for drain water level abnormality does not activate when the water level can
be returned normal within A + 10 seconds.
1-2-b)
Behavior when the unit restarts by remote controller after the water level abnormality is recovered
Water level abnormality shall be cancelled simultaneausly when the unit is turned off with remote controller
after recovery of the water level abnormality. When the unit is turned on with remote controller thereafter,
compressor starts operation 2 minutes later from the remote controller ON. (Below diagram shows an
example of the case that the water level abnormality is recovered during the former 5 min intermittent
operation.)
