Test Operation SiBE18-821
120 Test Operation

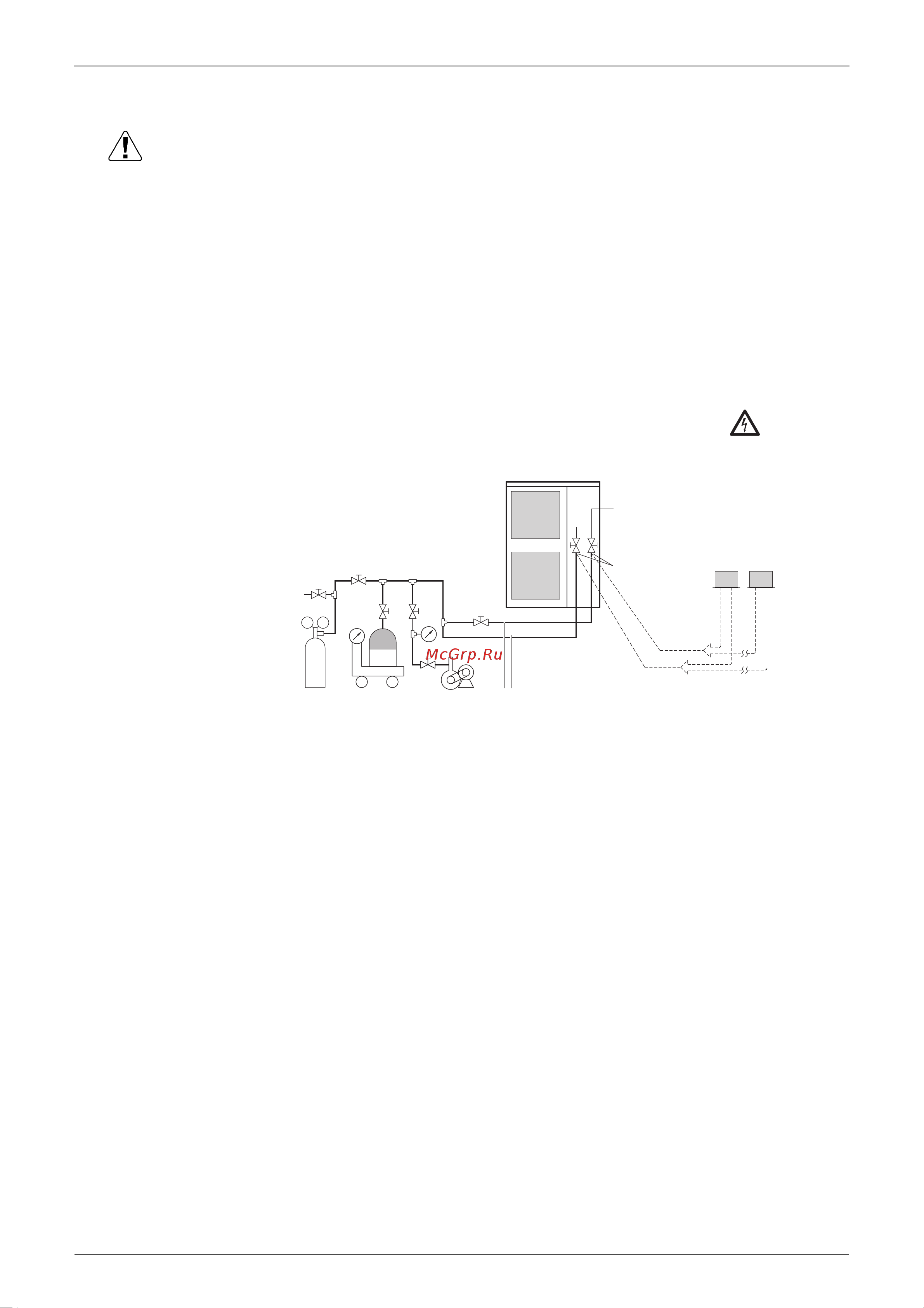

1.1.8 Additional Refrigerant Charge
Caution
♦
Refrigerant cannot be charged until field wiring has been completed.
♦
Refrigerant may only be charged after performing the leak test and the vacuum drying (see
above).
♦
When charging a system, care shall be taken that its maximum permissible charge is never
exceeded, in view of the danger of liquid hammer.
♦
Charging with an unsuitable substance may cause explosions and accidents, so always
ensure that the appropriate refrigerant (R-410A) is charged.
♦
Refrigerant containers shall be opened slowly.
♦
Always use protective gloves and protect your eyes when charging refrigerant.
♦
When performing service on the unit requiring the refrigerant system to be opened,
refrigerant must be evacuated according to local regulations.
♦
Do not use the automatic refrigerant charging function while working on the indoor units.
When using the automatic refrigerant charging function, the indoor units operate
automatically as well as the outdoor unit.
♦
When the power is on, please close the front panel when leaving the unit.
1. Pressure reducing valve
2. Nitrogen
3. Tank
4. Siphon system
5. Measuring instrument
6. Vacuum pomp
7. Valve A
8. Gas line stop valve
9. Outdoor unit
10.Liquid line stop valve
11.Indoor unit
12.Stop valve service port
13.Charge hose
1
2
3
4
56
7
9
8
12
13
10
1111
