SiBE18-821 Test Operation
Test Operation 121
To avoid compressor breakdown. Do not charge the refrigerant more than the specified
amount.
♦
This outdoor unit is factory charged with refrigerant and depending on pipe sizes and pipe
lengths some systems require additional charging of refrigerant. See page 10 "Note: 1".
♦
In case re-charge is required, refer to the nameplate of the unit. The nameplate states the
type of refrigerant and necessary amount.
Precautions when adding R-410A
Be sure to charge the specified amount of refrigerant in liquid state to the liquid pipe.
Since this refrigerant is a mixed refrigerant, adding it in gas form may cause the refrigerant
composition to change, preventing normal operation.
♦
Before charging, check whether the refrigerant cylinder is equipped with a siphon tube or not.
Important information regarding the refrigerant used
This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent
gases into the atmosphere.
Refrigerant type: R-410A
GWP* value: 1975
*GWP = global warming potential
Please fill in with indelible ink,
♦ the factory refrigerant charge of the product,
♦ the additional refrigerant amount charged in the field and
♦ + the total refrigerant charge
on the refrigerant charge label supplied with the product.
The filled out label must be adhered in the proximity of the product charging port (e.g. onto the
inside of the service cover).

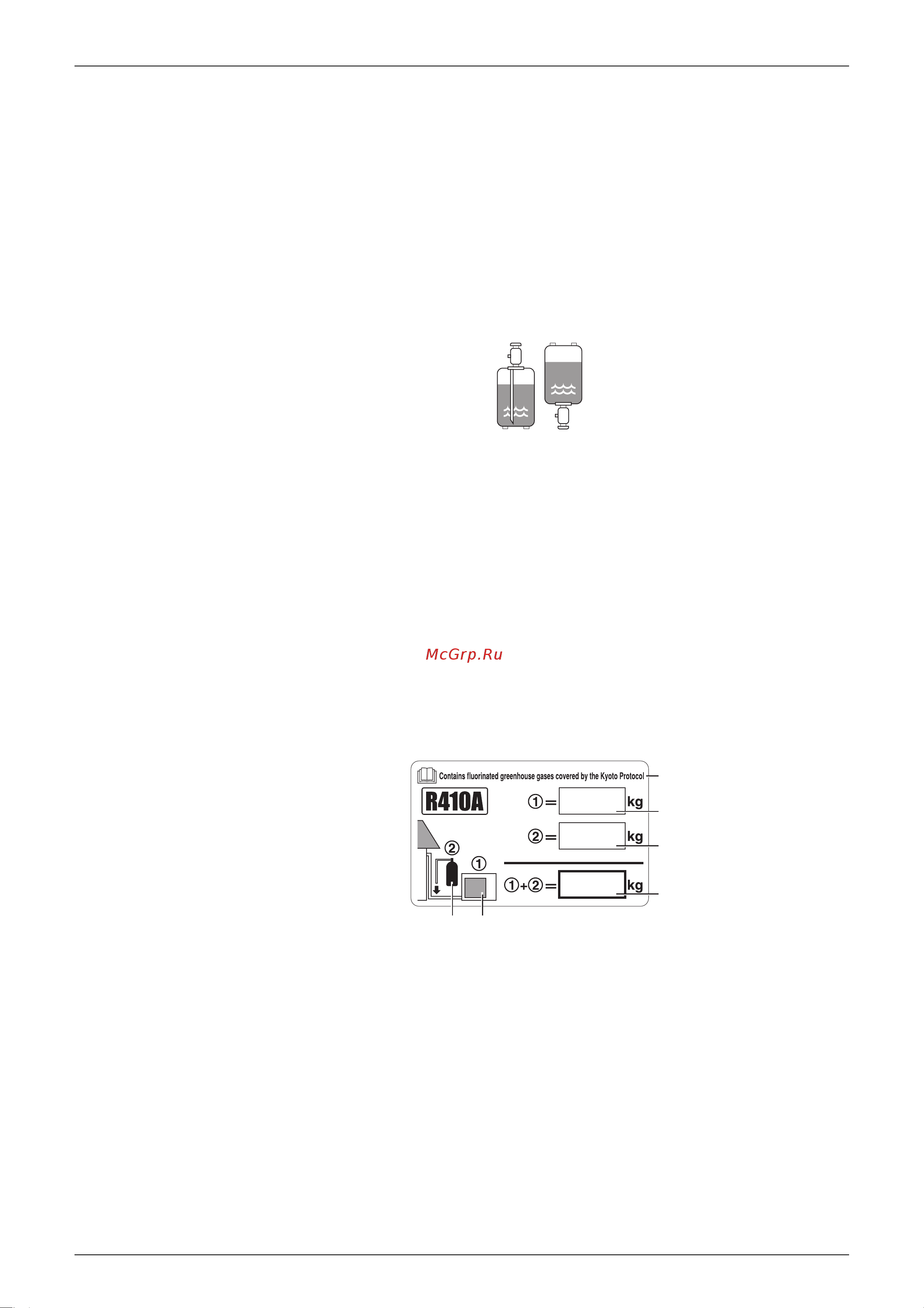

1. factory refrigerant charge of the product: see unit name plate
2. additional refrigerant amount charged in the field
3. total refrigerant charge
4. Contains fluorinated greenhouse gases covered by the Kyoto Protocol
5. outdoor unit
6. refrigerant cylinder and manifold for charging
Charge the liquid
refrigerant with the cylinder
in upright position.
Charge the liquid
refrigerant with the cylinder
in up-side-down position.
3
5
6
2
1
4
