Test Operation SiBE18-821
122 Test Operation
Procedures for
adding
refrigerant
Procedure 1: Adding refrigerant by using the automatic refrigerant charging function
(recommended)
〈

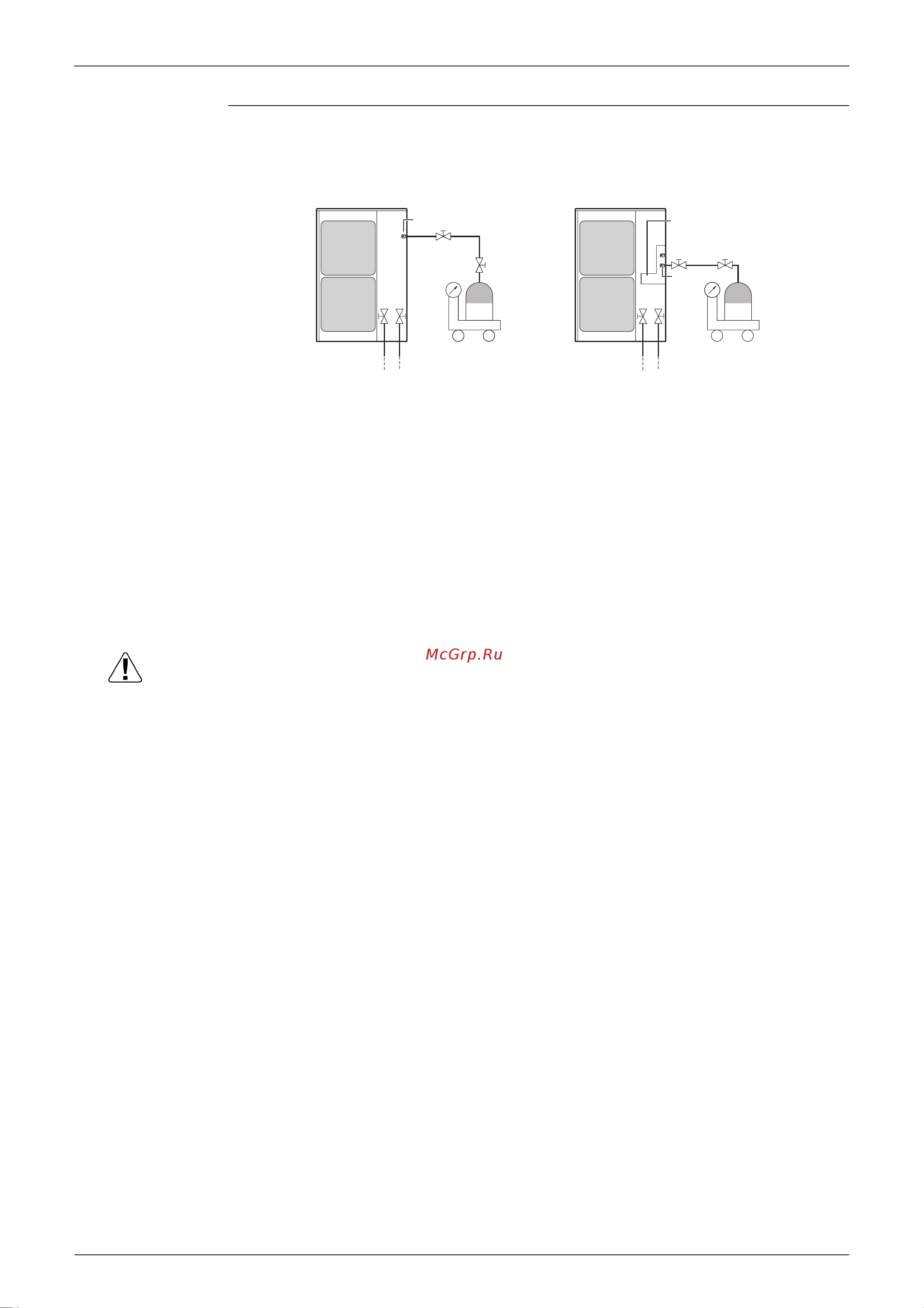

How to connect the tank?
〉
1. Liquid line stop valve
2. Gas line stop valve
3. To indoor unit
4. Service port for adding refrigerant
5. Valve A
6. R-410A tank
7. Measuring instrument
8. Pipe fixing plate
When the refrigerant tank is connected and the specified operation is performed, the
appropriate amount of refrigerant will be charged into the system. After charging, the system will
stop automatically. The refrigerant must be charged according to the procedure described
below.
Caution Make sure to turn ON the power 6 hours before starting the operation. This is necessary to
warm the crankcase by the electric heater.
Automatic charging is able to charge 6 kg/hour refrigerant at an outside temperature of 0°C to
24 kg/hour refrigerant at an outside temperature of 35°C.
The charging time depends on the amount of charged refrigerant and on the outside
temperature.
Automatic refrigerant charging is NOT possible if the following restrictions are exceeded:
♦
Outside temperature: 0°C DB~43°C DB
♦
Indoor temperature: 0°C DB~32°C DB
♦
Indoor unit connection capacity: 50%~130%
3
6
7
12
4
5
3
6
7
12
8
4
5
V1 Y1
