Instruction SiBE18-821
212 Operation Manual

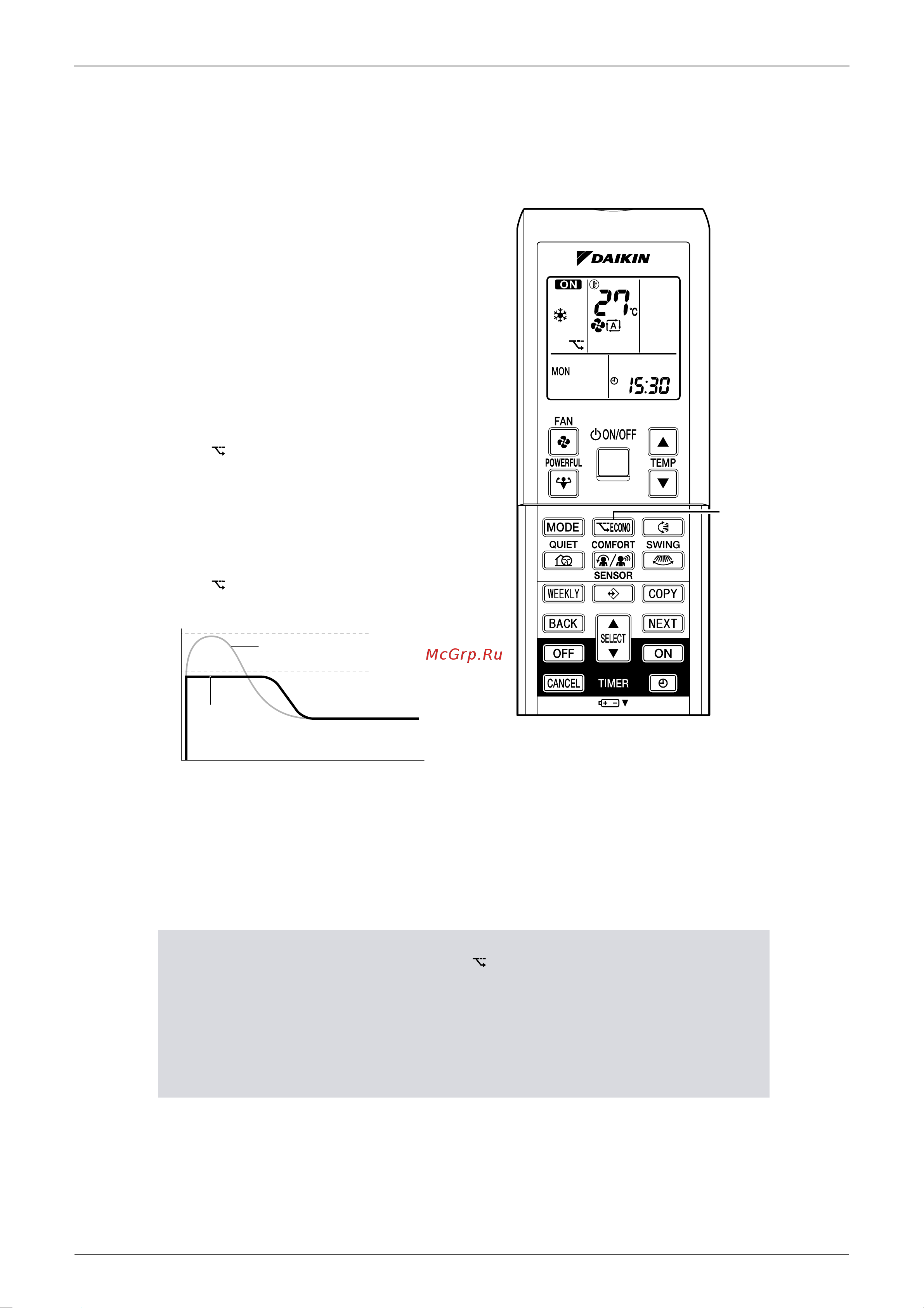

2.3.8 ECONO Operation
ECONO Operation
ECONO operation is a function which enables
efficient operation by limiting the maximum power
consumption value.
This function is useful for cases in which attention
should be paid to ensure a circuit breaker will not
trip when the product runs alongside other
appliances.
To start ECONO
operation
1. Press “ECONO button”.
• “ ” is displayed on the LCD.
To cancel ECONO
operation
2. Press “ECONO button” again.
• “ ” disappears from the LCD.
• This diagram is a representation for illustrative purposes only.
* The maximum running current and power consumption of the air conditioner in ECONO
mode vary with the connecting outdoor unit.
NOTE
• ECONO Operation can only be set when the unit is running. Pressing the OFF button
causes the setting to be canceled, and the “ ” disappears from the LCD.
• ECONO operation is a function which enables efficient operation by limiting the power
consumption of the outdoor unit (operating frequency).
• ECONO operation functions in AUTO, COOL, DRY and HEAT modes.
• POWERFUL and ECONO operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
• Power consumption may not drop even if ECONO operation is used of the level of power
consumption is already low.
1, 2
Running current and
power consumption
From start up until set
temperature is reached
Time
Maximum during
normal operation
Maximum during
ECONO Mode
Normal
operation
ECONO
Mode
