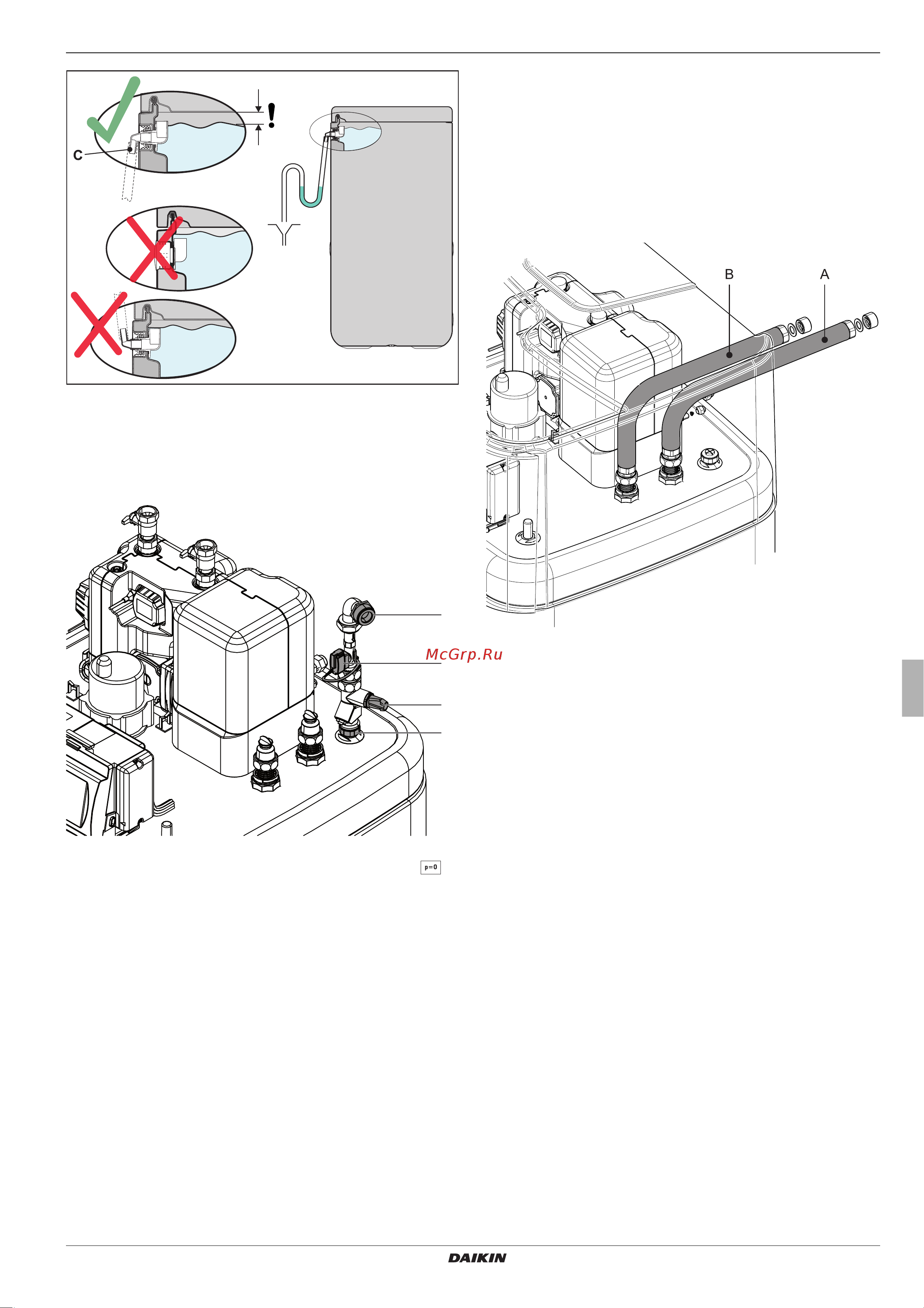

Fig. 4-13 Installation of drain hose at safety overflow
4 x Set-up and installation
Daikin Altherma EHS(X/H)
Daikin Altherma integrated solar unit
008.1441399_02 – 01/2021 – EN
Installation and operating instructions
25
4.4.3 Assembly DB connection kit
The optional DB connection kit provides improved accessibility
for connecting the DrainBack line (solar feed).
A
D
B
C
A DB line connection
(solar feed)
B FlowSensor (not included in
the DB connection kit, but in-
cluded in EKSRPS4A)
C Flow limiter (FlowGuard)
D Solar feed connection on
the storage tank
Fig. 4-14 DB connection kit
4.4.4 Assembly Biv connection kit
The optional P connection kit for Daikin Altherma EHS(X/H) Biv
device types provides better access for connecting the feed and
return flow of a pressurised solar system or another external heat
generator to the storage tank. The kit contains two thermally in-
sulated corrugated pipes that are connected to the connections
on the storage tank with a union nut. At the other end of the cor-
rugated pipe there is an adapter for each of the various different
connection sizes of the feed and return flow line.
A Flow connection (red)
B Return flow connection (blue)
Fig. 4-15 Biv connection kit for Daikin Altherma EHS(X/H)B…
