Daikin EHSXB08P50BA [78/84] Characteristic curves for pumps
![Daikin EHSXB08P50BA [78/84] Characteristic curves for pumps](/views2/1786037/page78/bg4e.png)
Installation and operating instructions
78
Daikin Altherma EHS(X/H)
Daikin Altherma integrated solar unit
008.1441399_02 – 01/2021 – EN
10 x Technical data

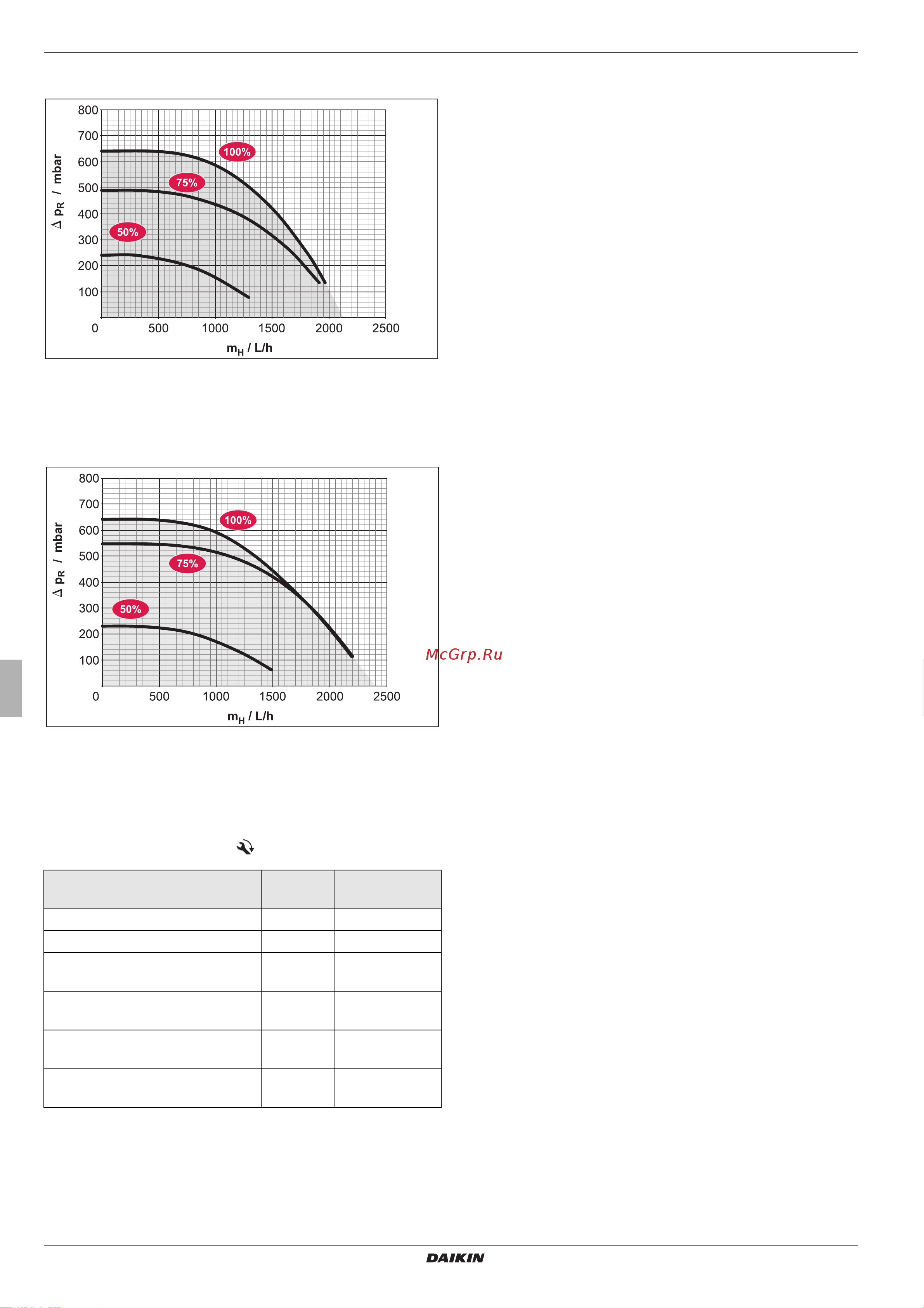

10.2.2 Characteristic curves for pumps
∆P
R
Residual pumping height of internal heat circulation pump
m
H
Flow rate of heating system
Fig. 10-6 Residual pumping height of the internal heat circulation pump
Daikin Altherma EHS(X/H)…P30B and Daikin Altherma
EHS(X/H)(B)08P50B with heating support heat exchanger
∆P
R
Residual pumping height of internal heat circulation pump
m
H
Flow rate of heating system
Fig. 10-7 Residual pumping height of internal heat circulation pump
Daikin Altherma EHS(X/H)(B)16P50B with heating support
heat exchanger
10.3 Tightening torque
Component Thread
size
Tightening
torque
Temperature sensor all max. 10 Nm
Hydraulic line connections (water) 1" 25 to 30 Nm
Gas line connections
(Coolant)
5/8" 63 to 75 Nm
Liquid line connections
(Coolant)
1/4" 15 to 17 Nm
Liquid line connections
(Coolant)
3/8" 33 to 40 Nm
Backup-Heater 1.5" max. 10 Nm
(hand-tight)
Tab. 10-4 Tightening torque
