Daikin EHSXB08P50BA [77/84] X technical data
![Daikin EHSXB08P50BA [77/84] X technical data](/views2/1786037/page77/bg4d.png)
R
S
Sensor resistance (NTC)
t Temperature
t
DHW2
Storage tank temperature sensor
t
R2
Return flow temperature sensor
t
V1
Flow temperature sensor
t
V, BH
Flow temperature sensor Backup-Heater

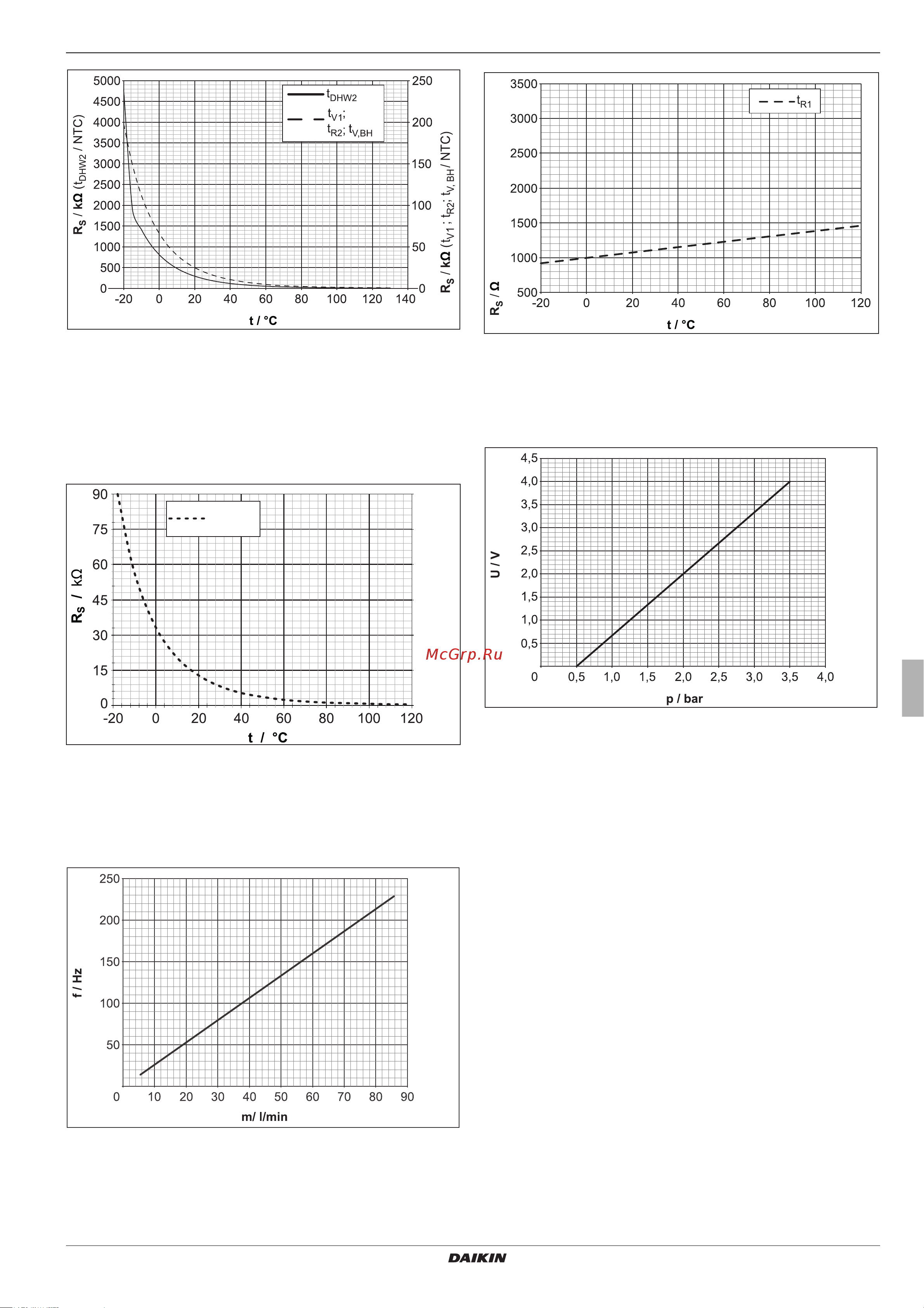

Fig. 10-1 Characteristics of the NTC temperature sensor Daikin
Altherma EHS(X/H) - part 1
t;
AU
t
DHW1
R
S
Sensor resistance (NTC)
t Temperature
t
AU
External temperature sensor RoCon OT1
t
DHW1
Storage tank temperature sensor
Fig. 10-2 Characteristics of the NTC temperature sensor Daikin
Altherma EHS(X/H) - Part 2
f Frequency
m Flow
Fig. 10-3 Characteristics of the flow sensor FLS (V1) Daikin Altherma
EHS(X/H)
R
S
Sensor resistance (Pt 1000))
t Temperature
t
R1
Return flow temperature sensor in the flow meter
Fig. 10-4 Characteristics of the return flow temperature sensor in the
flow sensor FLS (t
R1
) Daikin Altherma EHS(X/H)
p Water pressure
U Tension
Fig. 10-5 Characteristics of the pressure sensor (DS) Daikin Altherma
EHS(X/H)
10 x Technical data
Daikin Altherma EHS(X/H)
Daikin Altherma integrated solar unit
008.1441399_02 – 01/2021 – EN
Installation and operating instructions
77
