7 x Service and maintenance
Daikin Altherma EHS(X/H)
Daikin Altherma integrated solar unit
008.1441399_02 – 01/2021 – EN
Installation and operating instructions
55
11. Vent the entire heating installation as described in
chapter
5.1.4 (open the regulating valves on the installation.
At the same time the underfloor heating system can be filled
and flushed with the underfloor heating distributor.).
Air Purge
(see operating manual of the control unit)
12. Inspect the water pressure at the external pressure gauge
again. Where necessary, refill with water via the KFE cock
(fig. 7-2, item 2).
13. Disconnect the filler hose (fig. 7-2, item 1) with flow-back
preventer from the KFE cock (fig. 7-2, item. 2).
1 Filler hose
2 KFE cock
3 Ball cock
4 Water cock
5.1 Valve drive
5.2 Unlocking button of the drive
lock
6 Automatic bleeder
3UVB1, 3UV DHW
3-way diverter valve

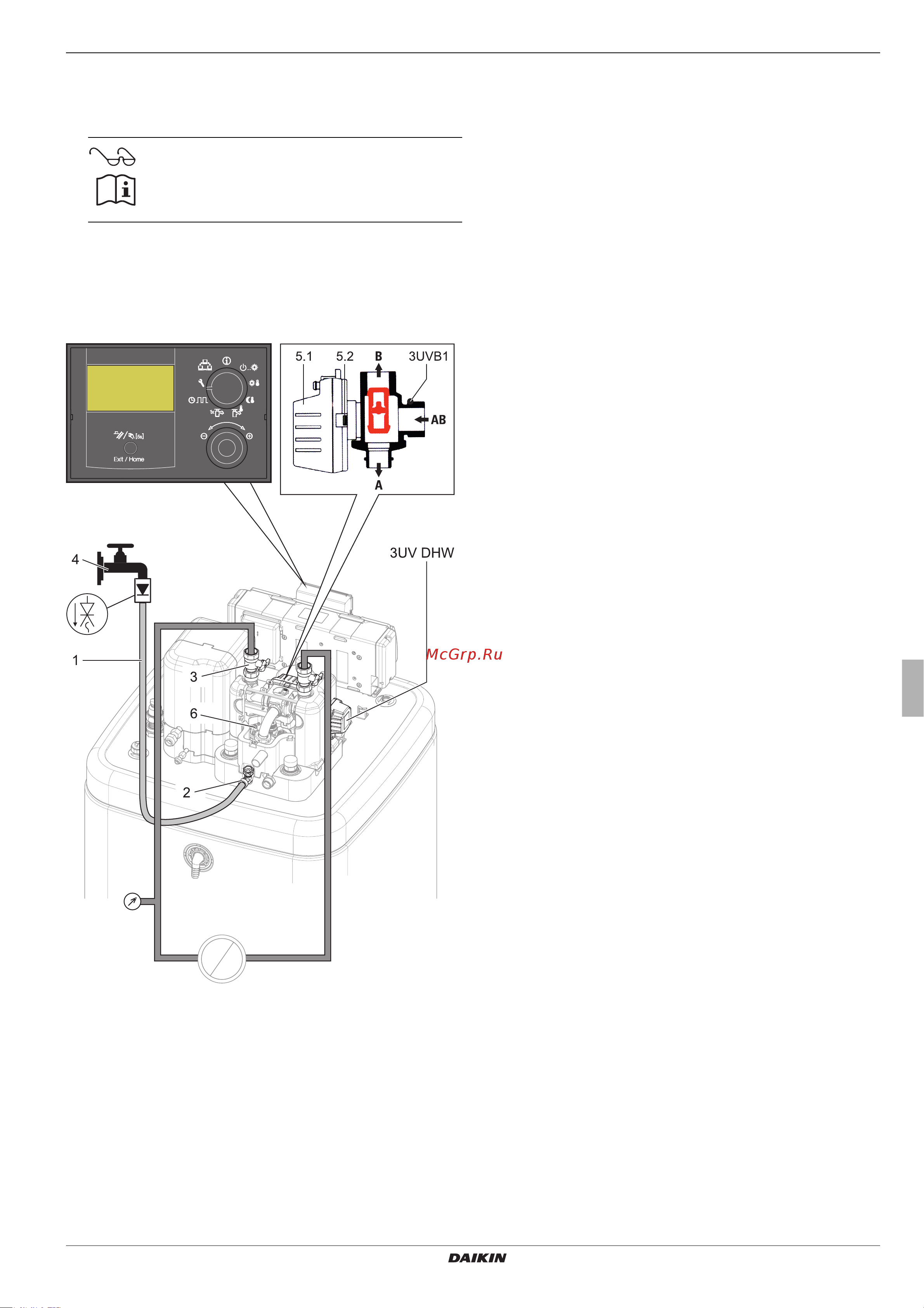

Fig. 7-2 Filling the heating circuit
