4 x Set-up and installation
Daikin Altherma EHS(X/H)
Daikin Altherma integrated solar unit
008.1441399_02 – 01/2021 – EN
Installation and operating instructions
29

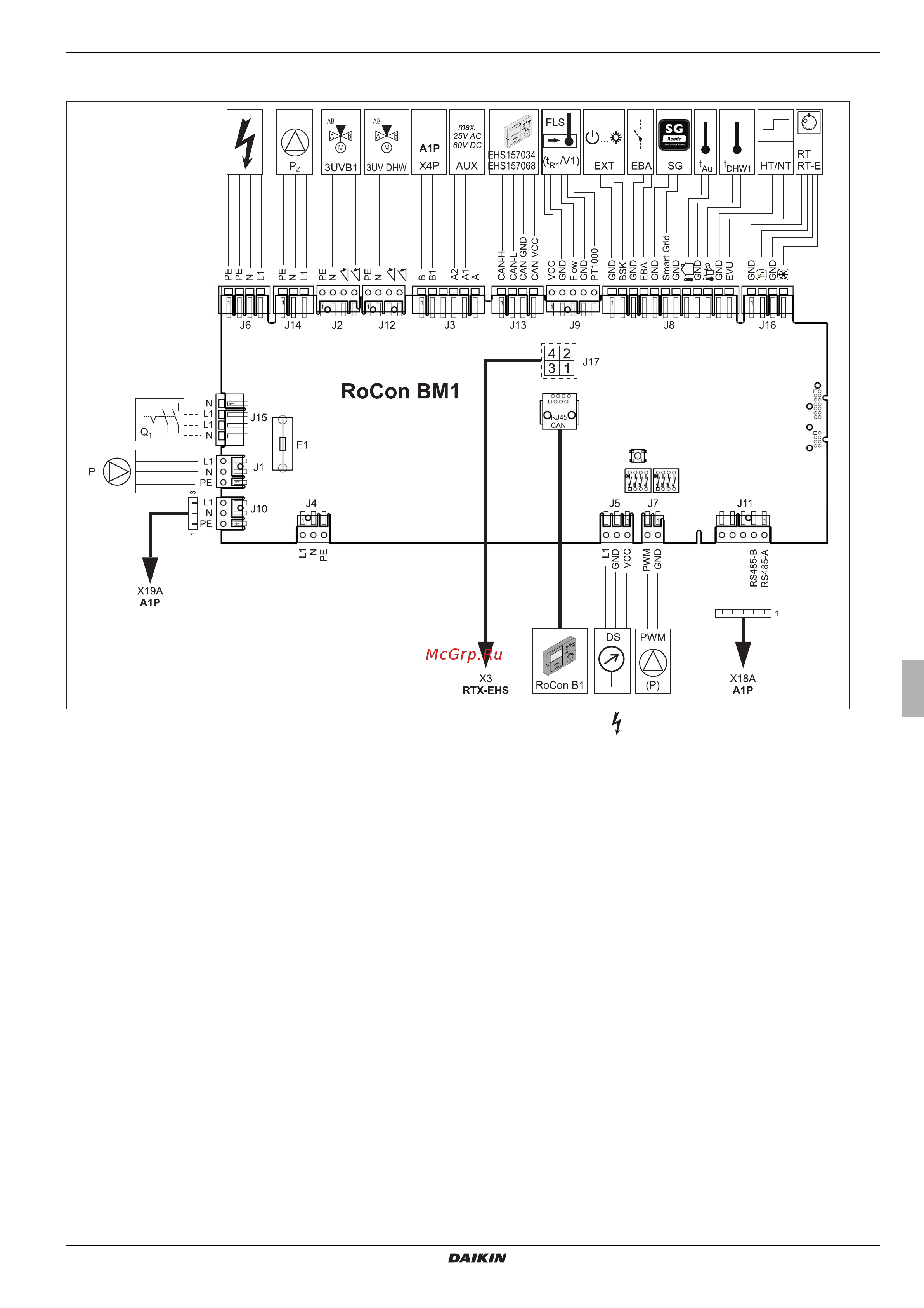

4.5.5 Connection assignment, circuit board RoCon BM1
Fig. 4-20 Circuit board RoCon BM1 (masic control module)
Mains supply 230 V, 50 Hz
(Connection plan in this instruction manual)
4.5.6 Mains connection Daikin Altherma EHS(X/H)
A flexible cable for the mains connection is already connected in-
ternal to the device.
● Check the supply voltage (~230 V, 50 Hz).
● Disconnect the junction box of the domestic installation.
● Connect the cable for the mains connection on the Daikin
Altherma EHS(X/H) to the junction box of the domestic instal-
lation via an all-pole disconnecting main switch to be installed
by the customer (separate isolator according to EN 60335-1).
Ensure that the polarity is correct.
The external device and optional accessories must be connected
separately to the regulator on the Daikin Altherma EHS(X/H).
To do so, the cover panel of the Daikin Altherma EHS(X/H) must
be removed (see section 4.3) and if necessary, the control
housing opened (see section 4.5.7).
