Daikin EHSXB08P50BA [43/84] Set the commissioning parameters
![Daikin EHSXB08P50BA [43/84] Set the commissioning parameters](/views2/1786037/page43/bg2b.png)
5 x Start-up
Daikin Altherma EHS(X/H)
Daikin Altherma integrated solar unit
008.1441399_02 – 01/2021 – EN
Installation and operating instructions
43
5.1.3 Set the commissioning parameters
To set the commissioning parameters, the heating expert must
be logged into the controller.
● Technician login
Configuration
Setup
System
Access Rights
User
Access Rights
Expert
Setup
Language
Date
Setup
Keylock Function
Access Rights
Outdoor type
Access Rights
Access Rights
Access Rights

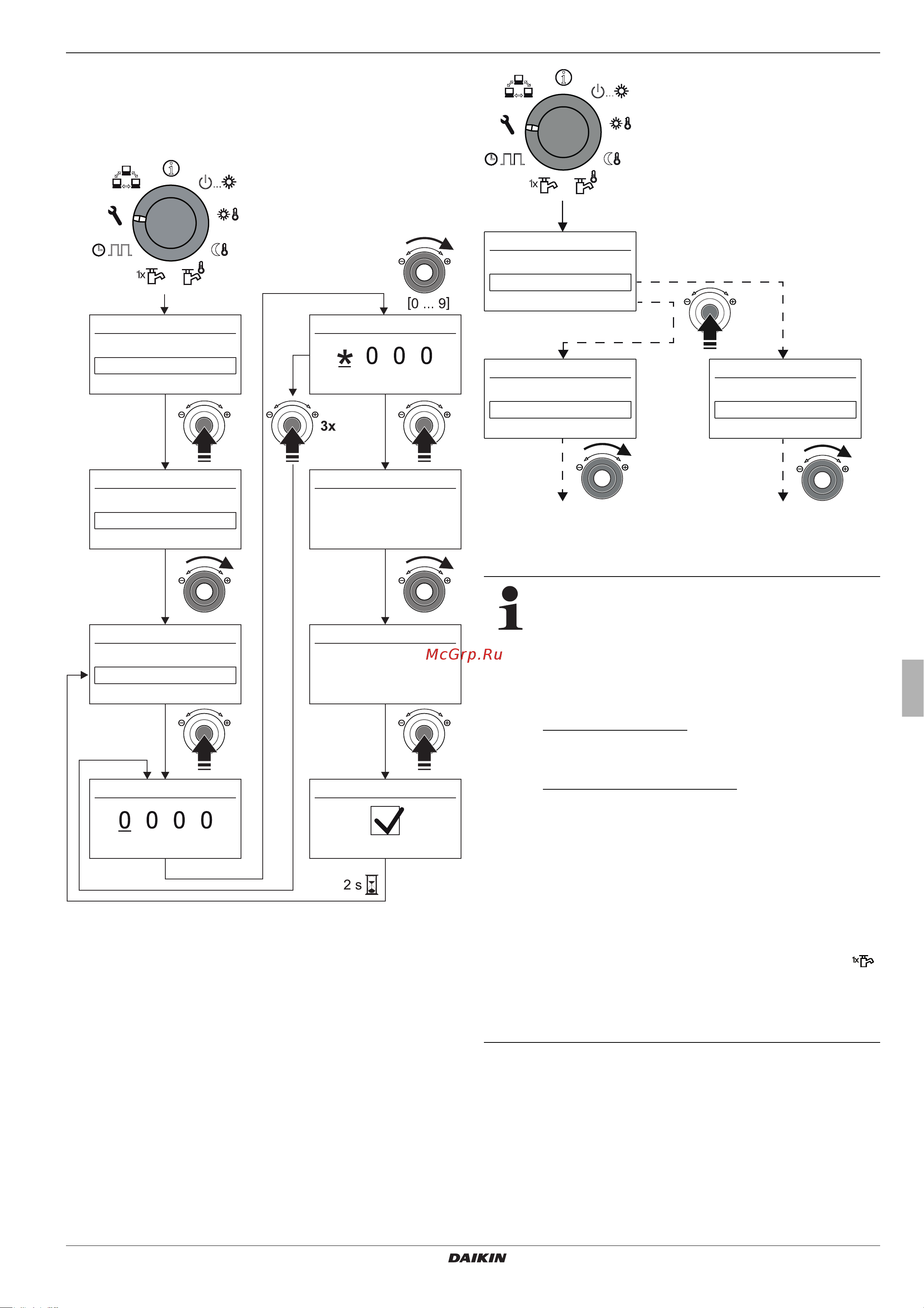

Fig. 5-1 Enter technician code
● Set required commissioning parameters. Here the supplied
"Commissioning Checklist" is to be observed and completted.
– For clarification of the operating parameters, see
Operating Manual of the Control Unit.
– Enter configuration values into the corresponding tables
in the "Notes" chapter of the Operating Manual for the
Control Unit.
● Activate Legionella protection ([Anti-Legionella day]
parameter) if required.
● With connected external temperature RoCon OT1, set the
parameter [Outside Config] to "On".
● Configure additional commissioning parameters depending
on the system requirements for the control unit of the Daikin
Altherma EHS(X/H).
Configuration
Setup
System
System
Power DHW
BUH s1 power
Setup
Language
Date
Fig. 5-2 Setting the commissioning parameters
5.1.4 Venting the hydraulics
If the storage temperature falls below a certain
minimum value, the safety settings of the Daikin
Altherma EHS(X/H) prevent the operation of the heat
pump in the case of low external temperatures:
– External temperature < -2 °C, minimum storage
temperature = 30 °C
– External temperature < 12 °C, minimum storage
temperature = 23 °C.
Without backup-heater:
The storage tank water must be heated to the minimum
required storage temperature by an external heater.
With Backup-Heater (EKBUxx):
With an outdoor temperature < 12 °C and a storage
tank temperature < 35 °C, the Backup-Heater (BUH) is
switched on automatically on in order to heat up the
storage tank water to at least 35 °C.
● In order to accelerate the heating process with
the back-up heater, temporarily
– Set parameter [Function Heating ] = "1" and
– Set parameter [Power DHW] to the maximum
value of the back-up heater.
– Switch the rotary switch to operating mode
and set the parameter [1x Hot Water] to "On".
Following successful heating, reset the parame-
ters to "Off".
