Error Codes: Indoor Units ESIE05-03
3–56 Part 3 – Troubleshooting
3
1
3
4
5

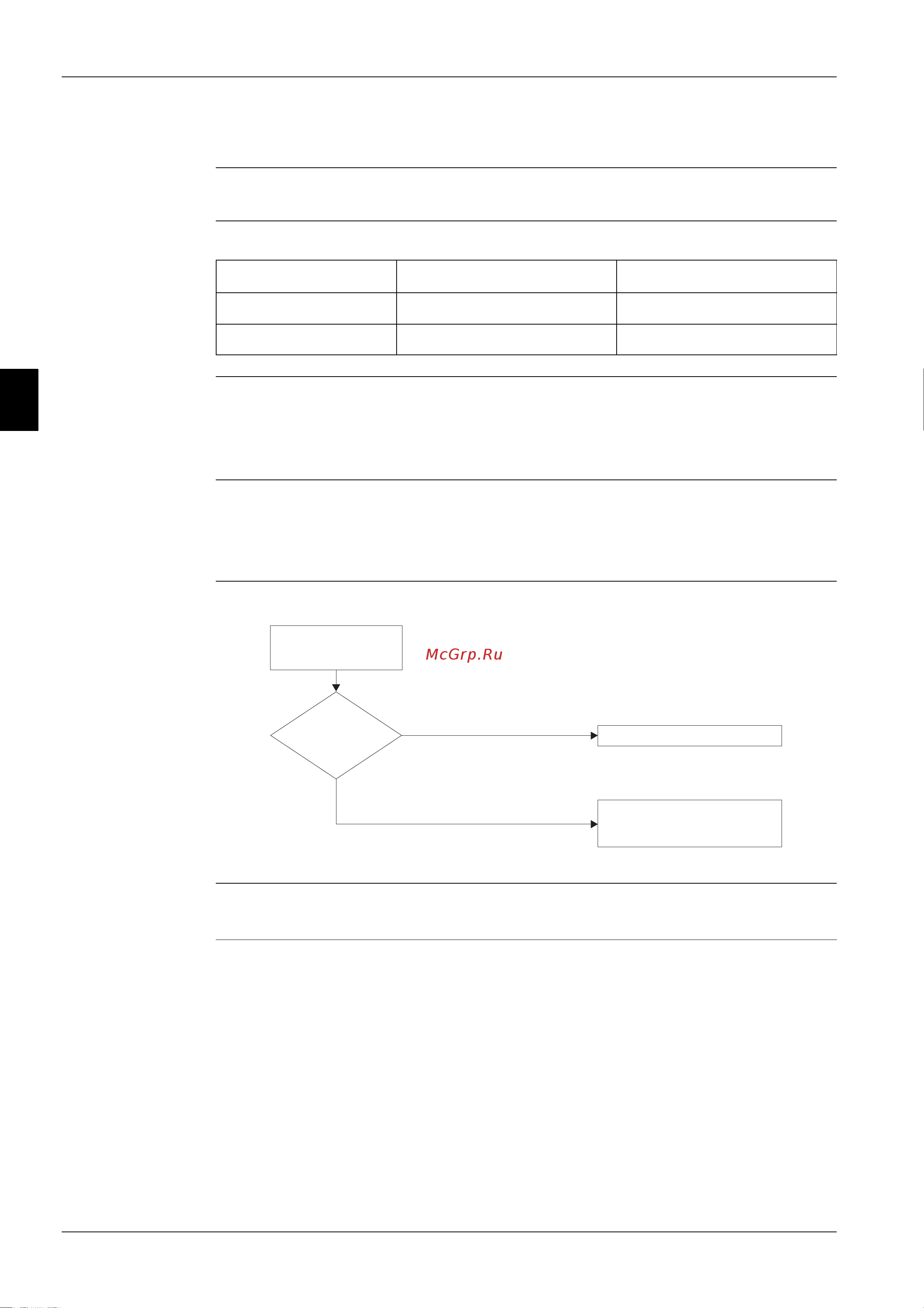

2.10 Humidity Sensor System Malfunction (CC)
Error code CC
LED indications The table below shows the LED indications.
Error generation The error is generated when the humidity sensor becomes disconnected or shorted while the unit is
running.
Even if the sensor is malfunctioning, the system can operate.
Causes The possible causes are:
P Malfunctioning sensor
P Broken wire.
Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Operation HAP (green) HBP (green)
Normal
cc
Malfunctioning
cc
Turn the power supply
off once and
then back on
Replace indoor unit PCB (A3P)
Could be outside cause
(noise...) other than
malfunction
NO
YES
Is
"CC"
displayed on the
remote
controller?
ESIE05-03.book Page 56 Wednesday, April 6, 2005 4:09 PM
