Error Codes: System Malfunctions ESIE05-03
3–98 Part 3 – Troubleshooting
3
1
3
4
5

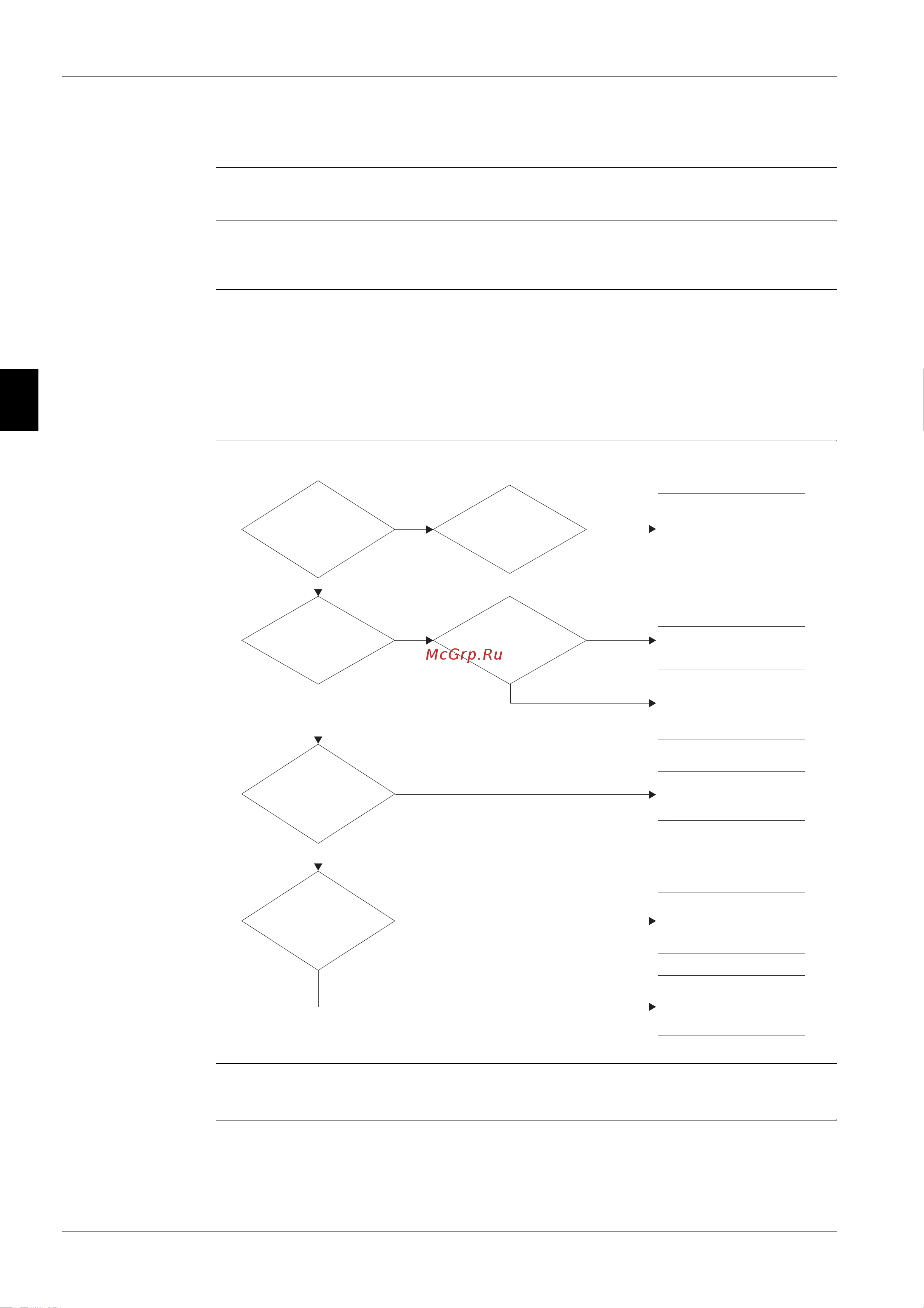

4.3 Malfunction of Transmission between Indoor Unit and Remote Controller (U5)
Error code U5
Error generation The error is generated when the microprocessor detects that the transmission between the indoor unit
and the remote controller is not normal over a certain amount of time.
Causes The possible causes are:
P Malfunctioning remote controller
P Malfunctioning indoor PCB
P Outside cause (noise...)
P Connection of two master remote controllers (when using two remote controllers).
Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Set one of the remote
controllers to SUB, turn off
the power supply
temporarily, then restart
operation.
Indoor unit PCB
replacement.
Malfunction could be
produced by noise. Check
the surrounding area and
restart operation.
Change to
double-core
independent cable.
Control by 2 remote
controllers
All
indoor unit
PCB microcomputer
normal monitors
flashing
Using
multicore
transmission wiring
between indoor unit
and remote
controller
Failure of remote
controller PCB or
replacement of defective
indoor unit PCB.
Problem could be caused
by external factor (noise
etc.) other than
malfunction.
Is "U5" displayed
constantly?
SS1 of both
remote controllers is
set to MAIN.
Resets
normally when
power supply is turned
off temporarily.
YES
YES
YES
YESYES
YES
NO
NO
NO
NO
NO
