Disassembly and Maintenance: Outdoor Units ESIE05-03
5–14 Part 5 – Disassembly and Maintenance
3
1
55

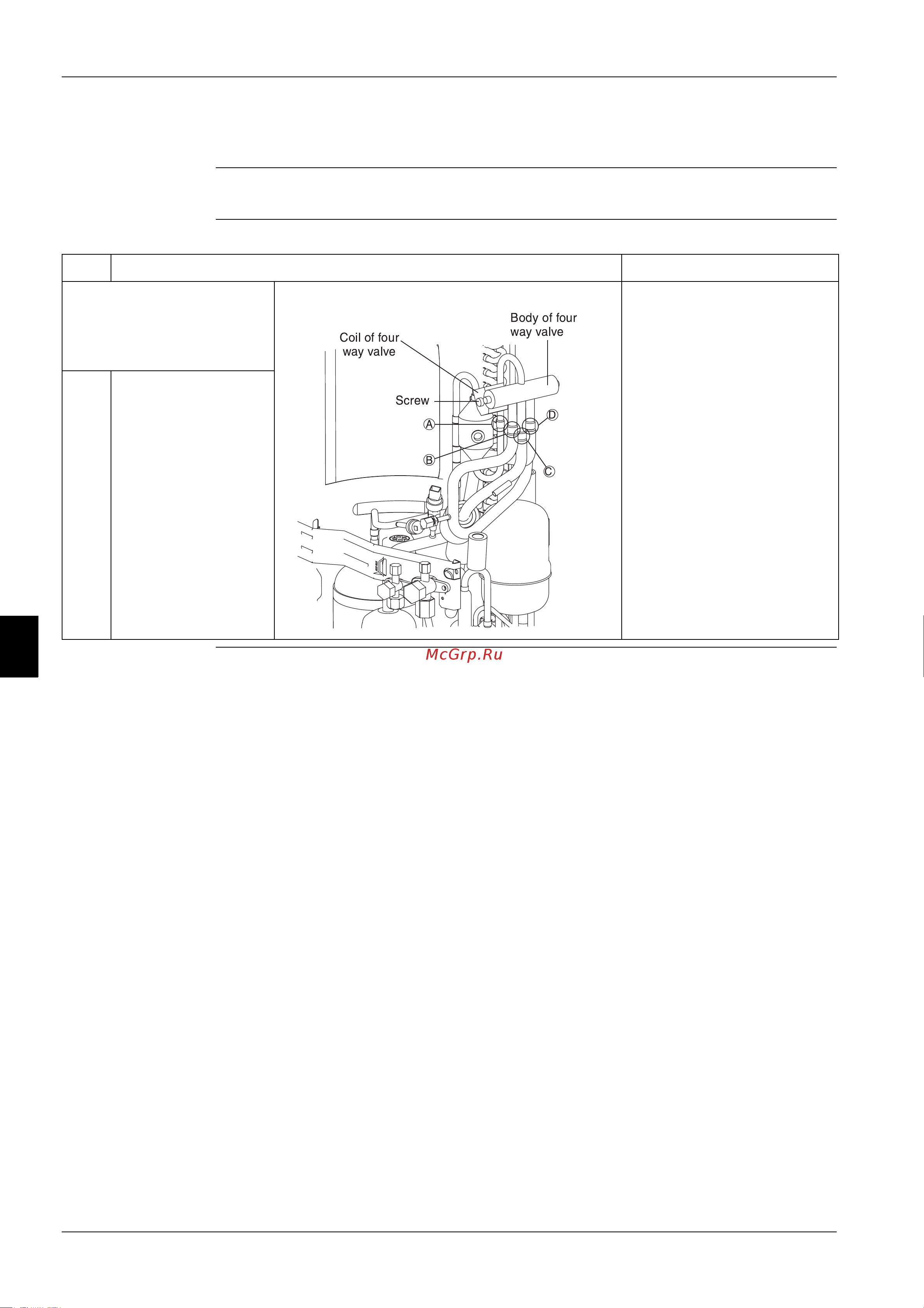

1.2.8 Removal of Four Way Valve
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure
Step Procedure Points
P Remove the parts related to
the outside panel and the
switch box in accordance with
the Removal Procedure for
Outside Panel and others.
P Check to be sure there are no
more refrigerants left in the
unit before starting this
removal.
P In order to prevent a gas
welding flame from having
influence on other pipes,
protect them with a sheet or
iron plate used for welding
operation.
P Caution:
While in installation of the four
way valve, in order to prevent
the main unit from reaching a
temperature of 120°C or more,
expose the valve to a flame
while cooling it with a wet rag.
1 Unscrew a single screw
that fixes the coil of the
four way valve and then
remove this coil.
2 Strip off the brazed
sections in four places on
body of the four way
valve and then remove
this body.
ESIE05-03.book Page 14 Wednesday, April 6, 2005 4:09 PM
