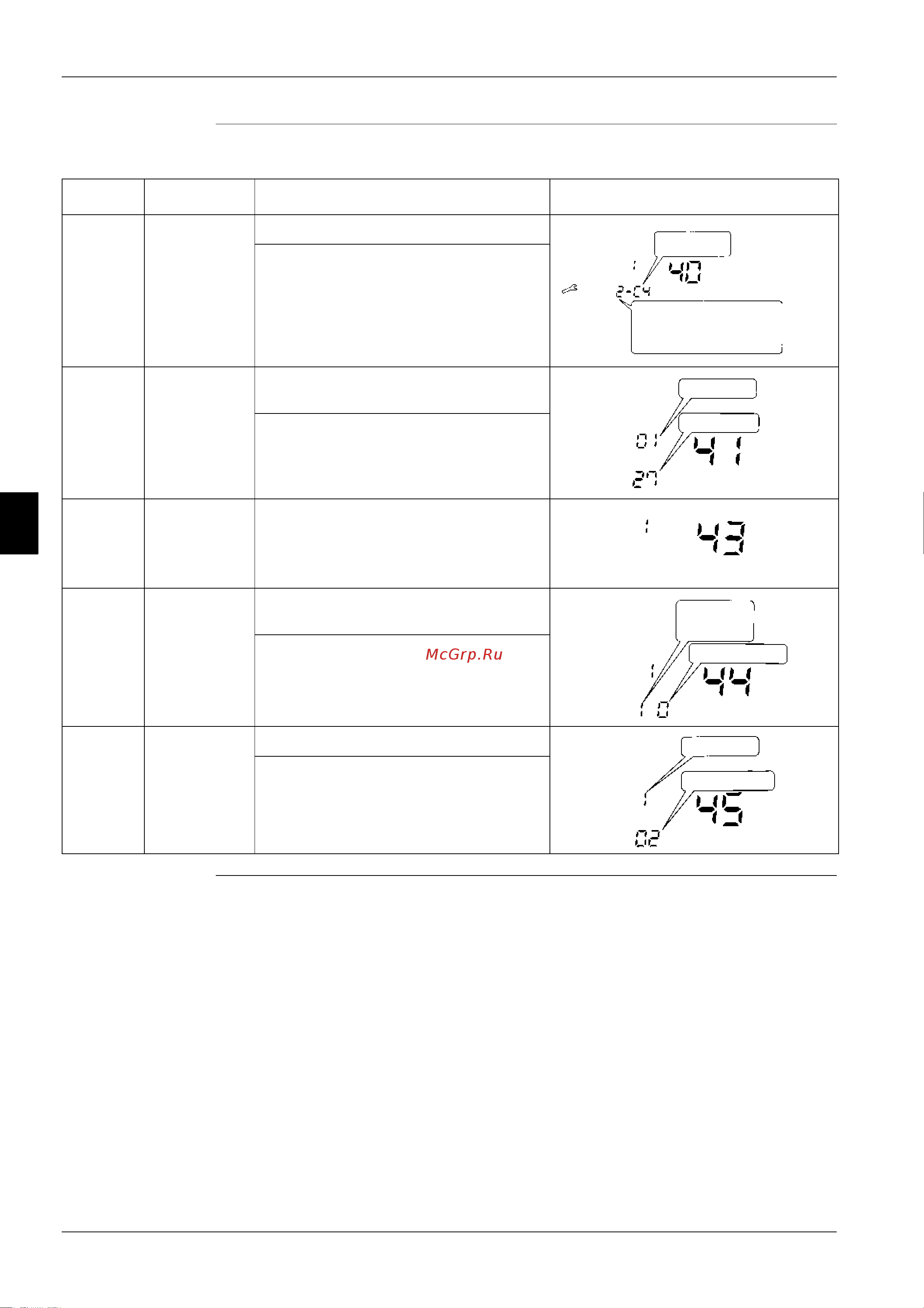

Field settings ESIE05-03
4–20 Part 4 – Commissioning and Test Run
3
1
4
5
Maintenance Mode
Settings
The table below describes the maintenance mode settings.
Mode No. Function Content and operation method Example of the remote controller display
40
History error
codes
Display malfunction history
The history No. can be changed with the pro-
gramming time button.
41
Thermistor
data display
Select the display thermistor with the pro-
gramming time button.
Thermistor:
0. Remote control thermistor
1. Suction thermistor
2. Heat exchanger thermistor.
43 Forced fan ON Turns the fan ON for each unit individually.
44
Individual
setting
Sets fan speed and air flow direction for each
unit individually when using group control.
Settings are made using the “air flow direc-
tion adjust” and “fan speed adjust” buttons.
Confirmation by the confirmation button is
required.
45
Unit No.
change
Changes unit No.
Set the unit No. after changing with the pro-
gramming time buttons.
Confirmation by the confirmation button is
required.
Past error code
Malfunction
history
* “00” displayed for 3 and subsequent
0: Newest
2: Oldest
-
CODE
SETTING
Unit No.
Unit No.
Thermistor
Temperature
SETTING
Unit No.
SETTING
Unit No.
SETTING
Fan
speed
1: Low
3: High
Air flow direction
CODE
Unit No.
SETTING
CODE
Field set No
No after change
ESIE05-03.book Page 20 Wednesday, April 6, 2005 4:09 PM
