Haier AC36NACAAA [19/87] Installation instructions

Floor console

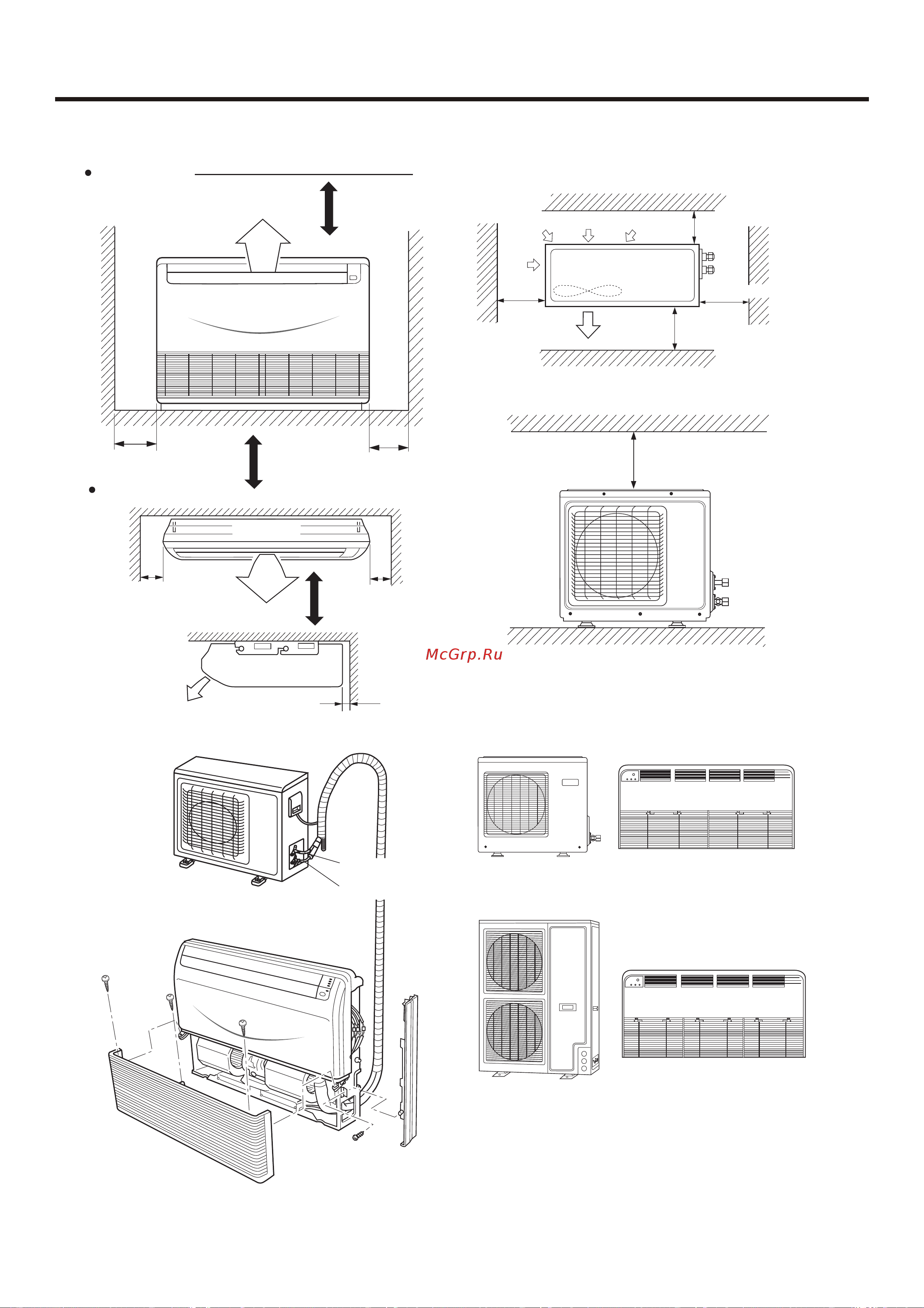

Fig. 1

15.88mm dia.

2 cm

or more

Ceiling

Indoor unit

30 cm

or more

30 cm

or more

Left

Right

30 cm

or more

30 cm

or more

1.5m

Left

Right

may be different

For series24, 28

For series 36,42

Note: For series 36, 42 no floor console type, the function

below about floor console is invalid to the series.

30 cm

or more

60 cm

or more

40 cm or more

30 cm

or more

Fig. 2

For series 14,18

60 cm

or more

Under ceiling

6.35mm dia

Outdoor unit

Indoor unit

For series 14,18

INSTALLATION INSTRUCTIONS
