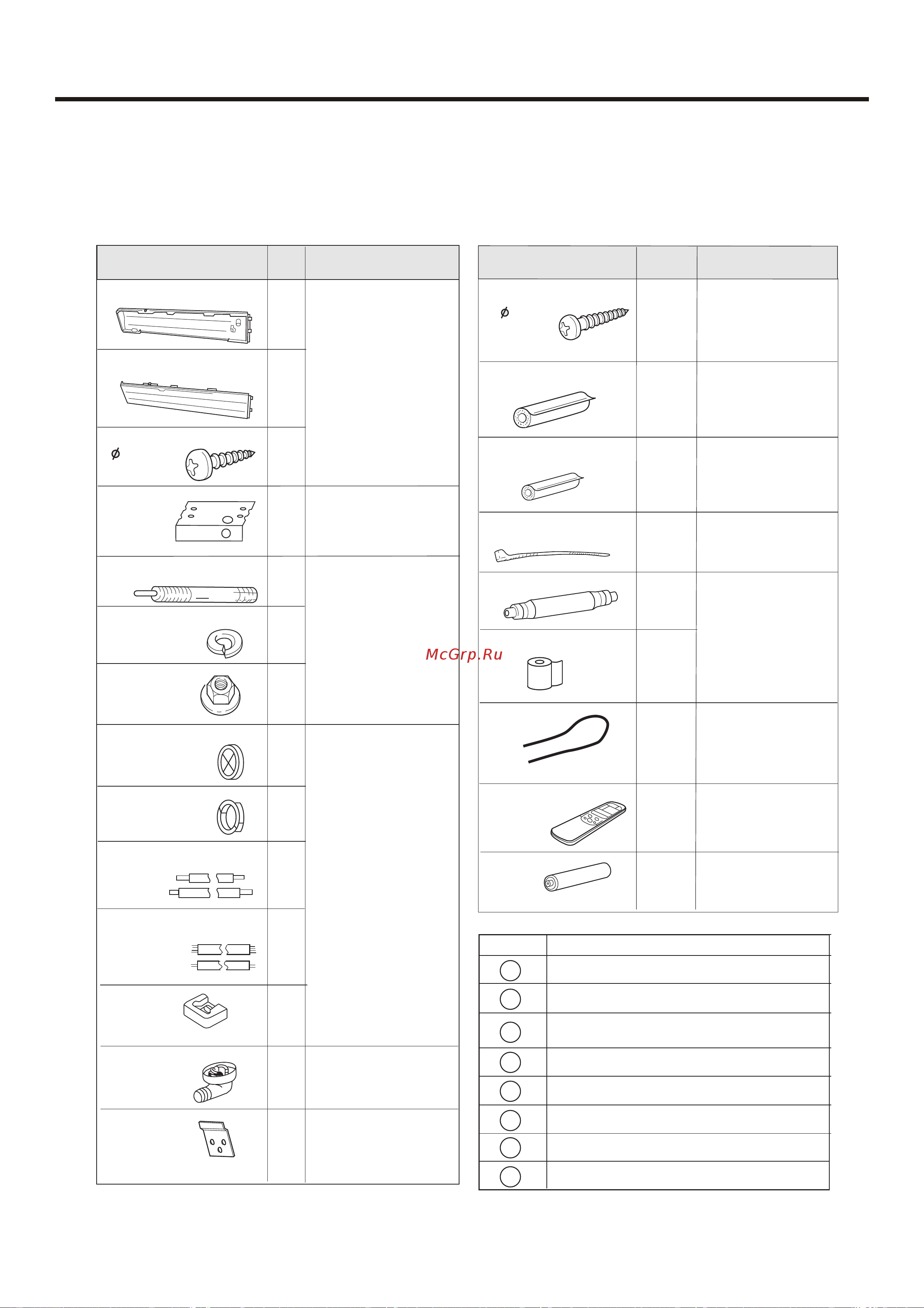

STANDARD PARTS
The following installation parts are furnished.
Use them as required.
ACCESSORIES
Name and shape
Q'ty
Application
6
For fixing the wall
bracket.
For series 24,28,36,42
no this part.
Tapping screw
( 4x20)
Coupler heat insulator(large)
1
For indoor side pipe
joint (Large pipe)
Coupler heat insulator(small)
1
For indoor side pipe
joint (Small pipe)
Nylon fastener
1
For fixing the drain
hose
Drain hose
Non-adhesive tape
1
1
VT wire
1
For fixing the drain
hose L 280mm
For series 24,28,36,42
VT wire is not available
Remote
controller
Battery
1
2
Use for air conditioner
operation
For remote controller
unit
Name and shape
Q'ty
Application
1
For series 24,28, 36,42
the two cover plate are
not available
Cover plate (left)
Cover plate (right)
Installation
template
Anchor bolt
Spring washer
Special nut
Pipe hole cover
Wall hole cover
Main pipes
Connecting cables
1
2
1
4
4
4
1
1
1
1
For positioning the
indoor unit
For under ceiling type.
For suspending the
indoor unit from ceiling
4
Tapping screw
( 4x10)
Cushion
Drain-elbow
1
Only for the heat pump
type
Wall bracket
2
For suspending the indoor
unit on the wall.For series
24,28,36,42 no this part.
