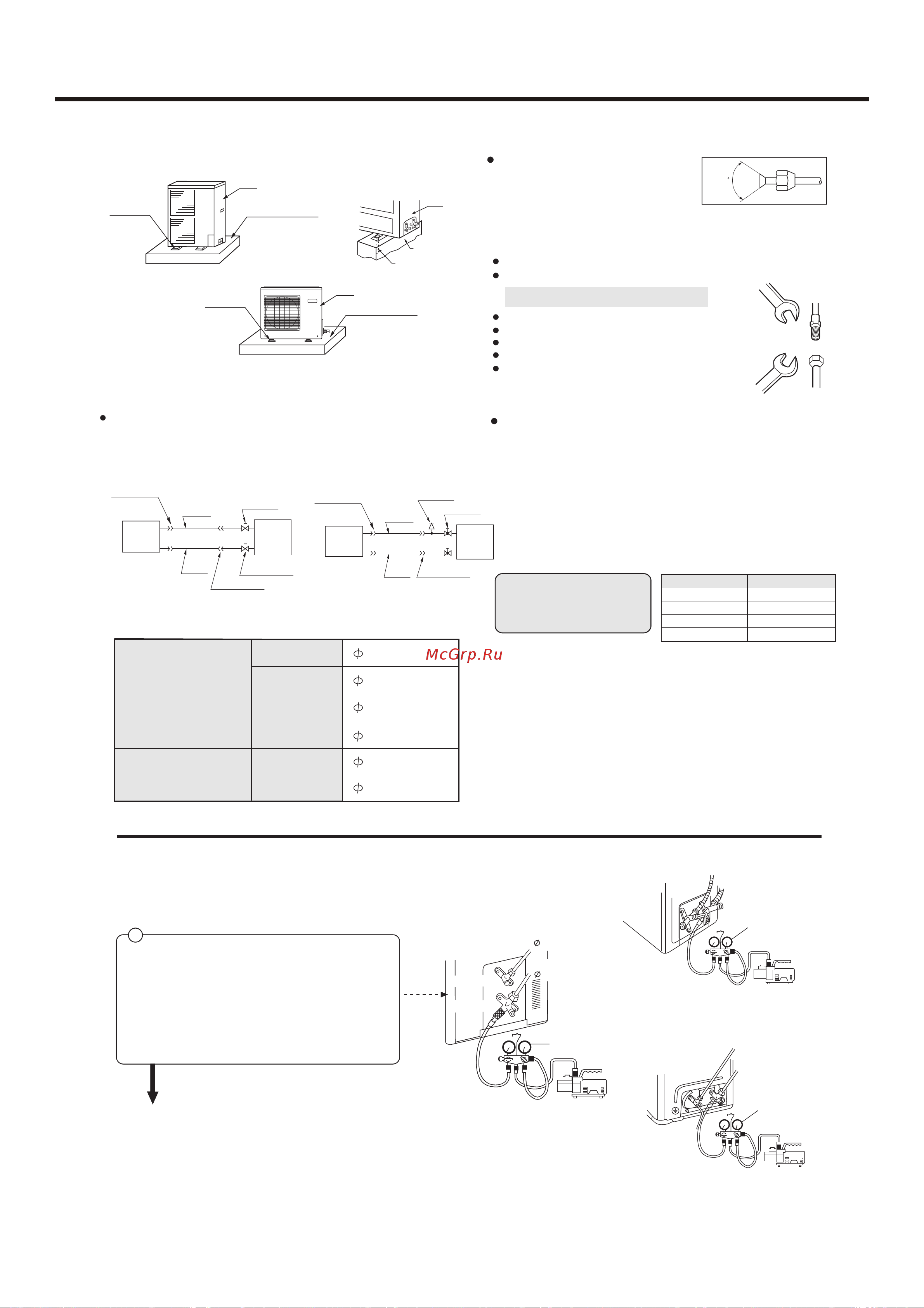

Haier AC36NACAAA [24/87] Do not twist or crush piping be sure that no dust is mixed in piping bend piping with as wide angle as possible keep insulating both gas and liquid piping check flare connected area for gas leakage
![Haier AC36NACAAA [24/87] Do not twist or crush piping be sure that no dust is mixed in piping bend piping with as wide angle as possible keep insulating both gas and liquid piping check flare connected area for gas leakage](/views2/1807752/page24/bg18.png)
Note (1)
Place the concrete
foundation
deep enough.
Connecting method
Apply refrigerant oil at half union as large and flare nut.
To bend a pipe, give the roundness as possible not to
crush the pipe.
When connecting pipe, hold the pipe centre to centre
then screw nut on by hand, refer to Fig.
Be careful not to let foreign matters, such as sands
enter the pipe.
(4) Piping connection (Fig.26)
Note (1)
Give enough room for the concrete
foundation to fix anchor bolts.
For series 24,28
To fix by bolts
Concrete foundation
(a) Concrete foundation
For series 36,42
Fig. 25
(b) Foundation anchor
Outdoor
unit
For series 14,18
For series 24,28,36, 42
(1) Outline of piping
3. Refrigerant piping
Service
Flare connection
Check joint
Gas pipe
Liquid
pipe
Flare connection
Indoor
unit
Outdoor
unit
3-way valve
Flare connection
Gas pipe
Liquid
pipe
Flare connection
Indoor
unit
2-way valve
(2) Piping size
Install the removed flare nuts
to the pipes to be connected,
then flare the pipes.
90 •0.5
One way piping length: Less than 15 mm
Vertical height difference: Less than 5 m
(3) Limitations for one way piping length and vertical
height difference.
Precautions for refrigerant piping
(Fig. 26)
Do not twist or crush piping.
Be sure that no dust is mixed in piping.
Bend piping with as wide angle as possible.
Keep insulating both gas and liquid piping.
Check flare-connected area for gas leakage.
Forced fastening without
centering may damage the
threads and cause a gas
leakage.
(5) Purging mehtod ( the refrigerant is R407C )
Install the unit so that the angle of inclination must be less than
3 degrees.
Series 24,28
Gas pipe
15.88x1.0mm
Liquid pipe
Gas pipe
9.52x0.8mm
15.88x1.0mm
Series 36,42
Liquid pipe
Gas pipe
9.52x0.8mm
19.05x1.0mm
Liquid pipe
6.35x0.8mm
Series 14,18
Pipe dia Fastening torque
Liquid pipe 6.35mm
Gas pipe 15.88mm
Liquid pipe 9.52mm
Gas pipe 19.05mm
18N
.
m
60N
.
m
40N
.
m
110N
.
m
For series 24,28
1
Detach the service port's cap of 3-way valve, the
valve rod's cap for 2-way valve and 3-way's, connect
the service port into the projection of charge hose
(low) for gaugemanifold. Then connect the projection
of charge hose (center) for gaugemanifold into
vacuum pump.
To use vacuum pump
Vacuum pump
Gaugemanifold
2-way valve
3-way valve
Liquid Side
6.35mm (1/4")
Gas Side
15.88mm (5/8")
For series 14,18
For series 36,42
Gaugemanifold
Vacuum pump
2-way valve
3-way valve
Vacuum pump
3-way valve
2-way valve
Gaugemanifold
Anchor bolt
Unit
Unit
Concrete
foundation
Anchor bolt
Unit
Anchor bolt
Concrete foundation
