ELECTRICAL DATA
Power lamp
Compressor lamp
Model
selection
Receiving through remote control
Distance reception
Compressor lamp
Timing lamp
Running lamp
Step motor A
Step motor B
Step motor C
Step motor D
single cold fan-coil
With or without outdoor panel
Wire control remote emission
Outdoor fan
Four-way valve
Long distance emisson
Compressor
Buzzer
Low wind
Medium wind
High wind
Crankshaft
Anion
Temperature compensation selection
Electric heating
Resistance detection
Indoor coil pipe
Room temperature
Forced service
Timing lamp
Hung ceiling
Flooring
Running lamp
Power lamp
High

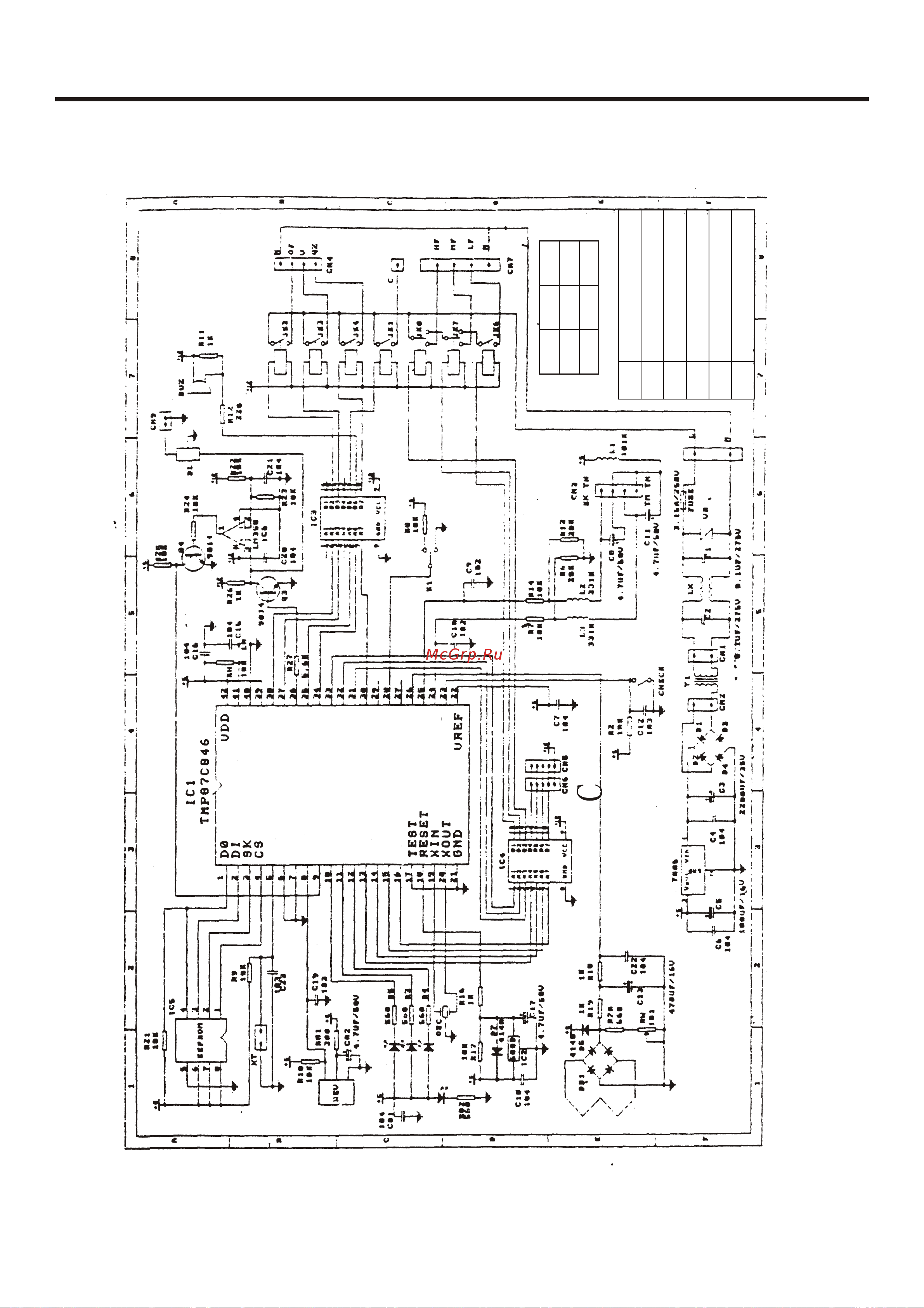

2P Schematic diagram of hung ceiling fan-coil model
Name
Model
No.
Design
Check
Approved
Cooling
and Heating
with Temperature
Compensation
without Tempera-
ture Compensation
Low
Single Cold
41
28
PIN
HCFU-14H03 HCFU-18HC03
