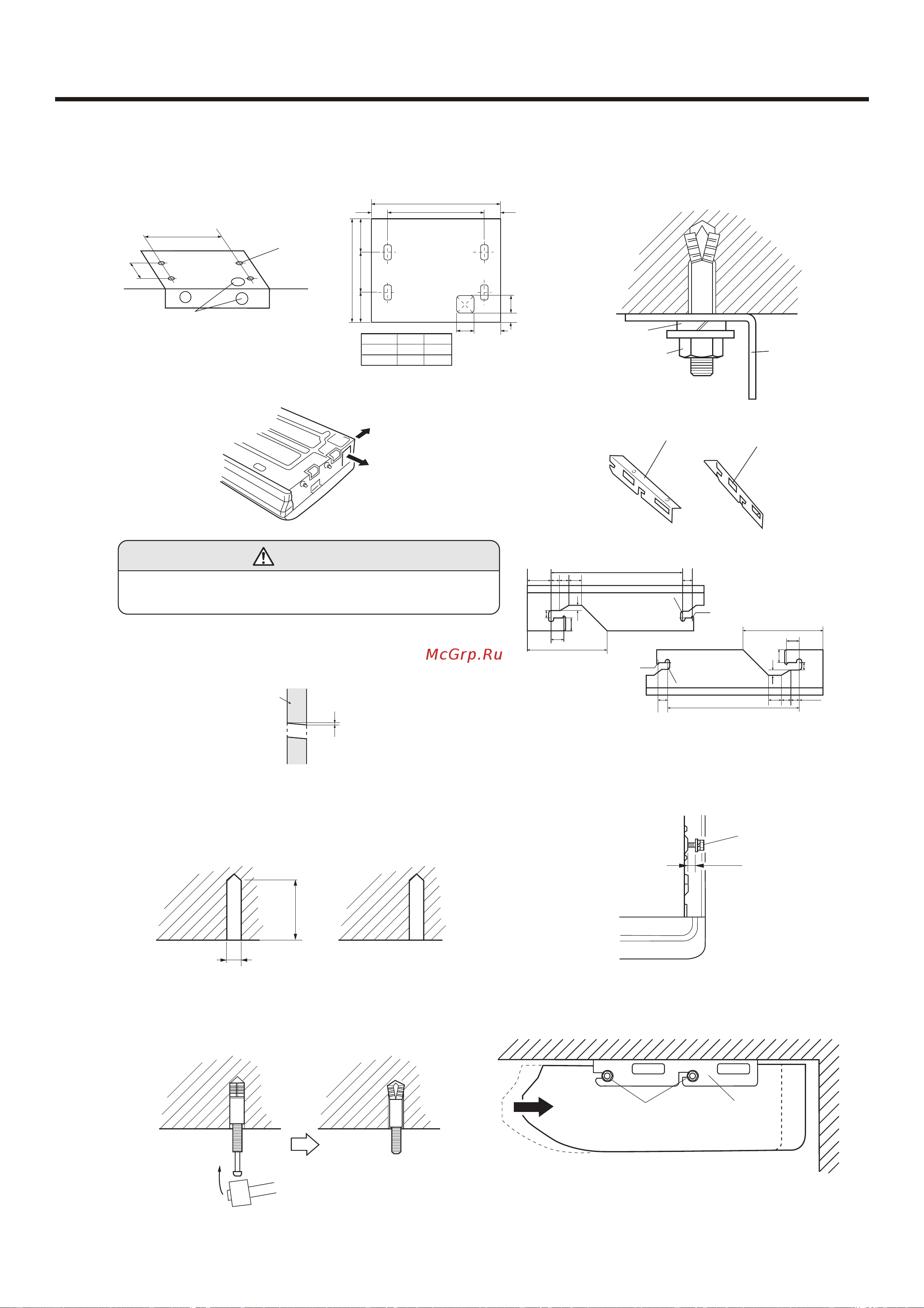

Installation

template

Wall

Ceilling

Drilling position

for piping

Drilling position

for anchor bolt

200mm

900mm

Select piping and drain directions. For series 24,28,36,42 only rear side(Fig.13)

B. UNDER CEILING TYPE

Using the installation template, drill holes for piping and anchor bolts(for

holes).(Fig.12)

Fig. 12

For series 14,18

1. DRILLING FOR PIPING

Fig. 13

CAUTION

60 to 70mm

12.7mm

Fig. 16

Insert the anchor bolts into the drilled holes, and drive the pins

completely into the anchor bolts with a hammer. (Fig. 16)

2. DRILLING HOLES FOR ANCHOR BOLTS AND

INSTALLING THE ANCHOR BOLTS

Install the drain hose at the rear; it should not be installed

on the top or right side.

When the directions are selected, drill 80mm and 50mm or 150mm

dia. hole on the wall so that the hole is tilted downward toward the

outdoor for smooth water flow.

3. INSTALLING BRACKETS

Fig. 17

Install the brackets with nuts, washers and spring

washers.(Fig. 17)

Spring washer

Special nut

Bracket

4. INSTALLING INDOOR UNIT

16 21 28

381

232

26.5

2-R2.5

7.5

4-R5

For series 24,28,36,42

Bracket (Right)

Bracket (Left)

For series 14,18

381

232

26.5

2-R2.5

7.5

4-R5

Reset the hex bolts as shown in Fig.18.

Hex bolt

8 to 13mm

Indoor unit

Fig. 18

Apply the indoor unit to the brackets.(Fig.19)

Now, securely tighten the hex bolts in both sides.

Fig. 19

Bolt

Bracket

Indoor unit

40 40

100mm

720mm

87.5mm

147mm

326mm

247mm

series A B

24,28

36,42 1920 1840

12401320

Rear (Install the drain hose

in the direction.)

Right

Wall

6mm

Fig. 15

With a concrete drill, drill four 12.7 mm dia. Holes.(Fig.15)

INSTALLATION INSTRUCTIONS
