CS1822 / CS1824 User Manual

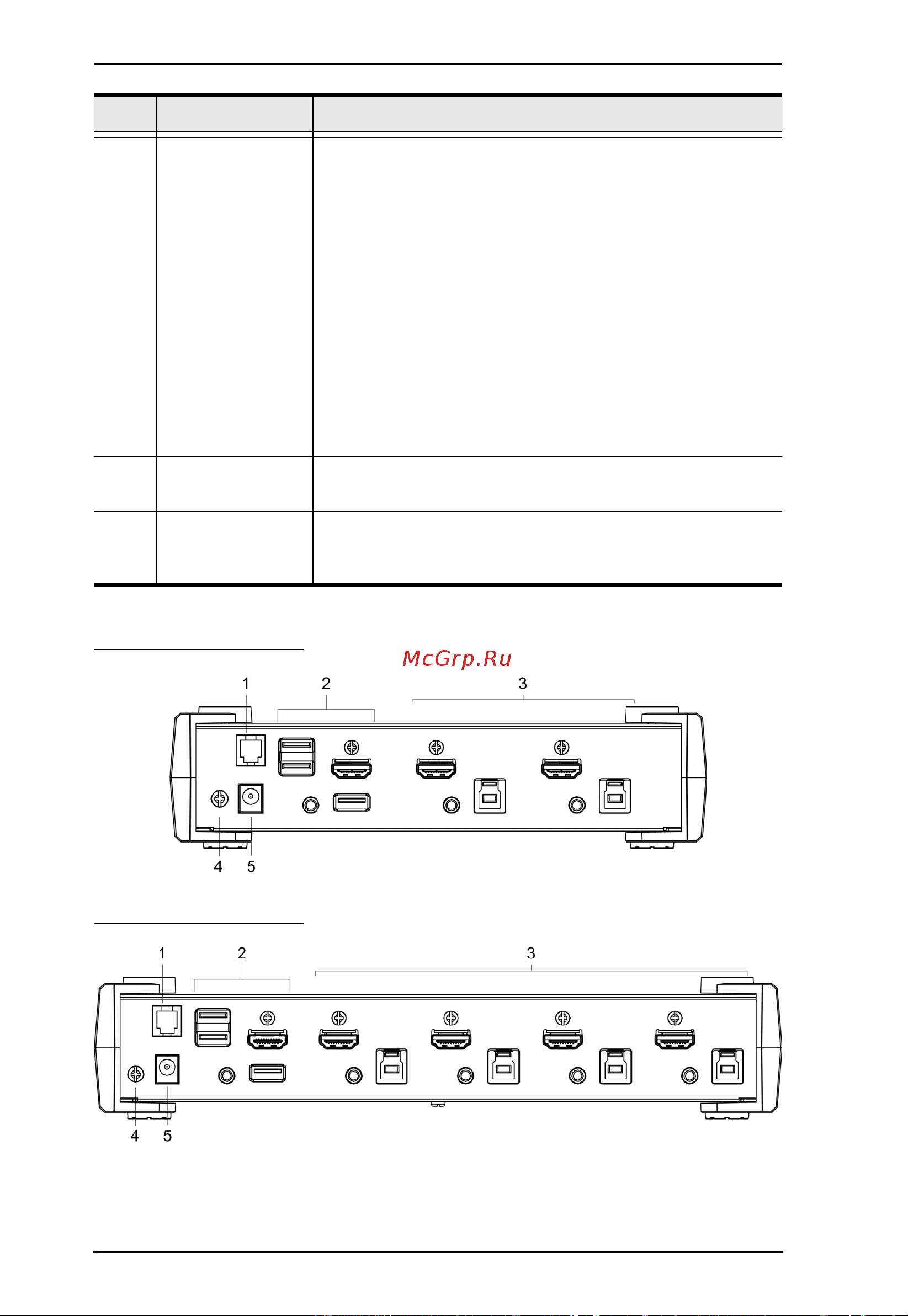

CS1822 Rear View

CS1824 Rear View

2 Port LEDs The LEDs will light to indicate its mode and status:

KVM



Lights DIM ORANGE to indicate that the computer attached to

the corresponding port is connected (online).



Changes to BRIGHT ORANGE to indicate that the computer

attached to its corresponding port is the one that has the KVM

focus (Selected).



Flashes to indicate that the computer attached to its correspond-

ing port is being accessed under Auto Scan mode.

USB



Lights GREEN to indicate that the computer attached to its corre-

sponding port is the one that has access to the USB peripherals.

Audio



Lights GREEN to indicate that the audio is being outputted from

the corresponding port(s).

3 Audio Port Plug your main speakers here. The speakers plugged in here have

priority over those on the rear panel.

4 USB 3.1 Gen 1

Peripheral Port

USB peripherals (printers, scanners, drives etc.) plug into this port.

This USB 3.1 Gen 1 port features 5 Gbps data transfer rates for

compatible USB peripherals.

No. Component Description
